Correctional Meal Delivery Carts & Systems
JonesZylon manufactures correctional meal delivery carts for prisons and jails, with options for heated, ambient, refrigerated, dual-temperature, and insulated tray service. From integrated ServeSmart tray-and-cart systems to Mission Ready heated food carts and lightweight transport carts, each platform is designed for secure, high-volume correctional food service.
Not sure what you're looking for? Start with the options below.
ServeSmart
Looking for a temperature-controlled meal delivery system? SmartTrays and SmartCarts are engineered to work together as a complete tray service solution.
Explore ServeSmartMission Ready
Heated carts with snap-in removable heater technology. Swap a failed unit in minutes and keep serving without interruption.
Explore Mission ReadyEconomy Carts

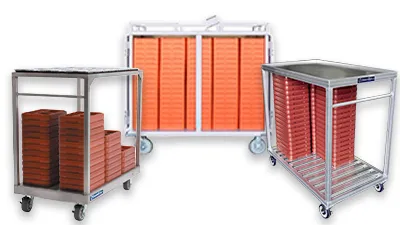

Lightweight aluminum transport carts for smaller facilities pairing ambient delivery with insulated trays or SmartTrays.
View Economy CartsAlso looking for:
Not Sure Where to Start?
Choosing the right cart system depends on your tray program, housing unit layout, and how your facility handles maintenance. Schedule a free virtual demo with your regional sales manager and we'll help you find the right fit. No commitment required.
Which Meal Delivery Cart Fits Your Service?
Choose by tray or pan format, temperature zones and housing unit load. Record your actual menu and delivery route before comparing cart sizes, then start with the matching family below.
| Your service need | Start with | What to confirm |
|---|---|---|
| Stacked SmartTray service | ServeSmart | Standard or XD tray, lid arrangement, heated or ambient cart |
| Heated tray delivery | Mission Ready | Tray family, rack setup, heater assembly and route power |
| Hot and unheated components | JZHA heated/ambient | How the ambient compartment will be used and any cold-plate option |
| Hot and refrigerated components | JZHR heated/refrigerated | Compartment allocation, electrical requirements and refrigeration clearance |
| Bulk food before tray assembly | Holding cabinets | Pan format, prep schedule and point of service |
| Transport with a separate temperature plan | Transport carts | Tray containment, travel time and unloading sequence |
Also compare refrigerated tray carts, ambient carts and bulk food carts.

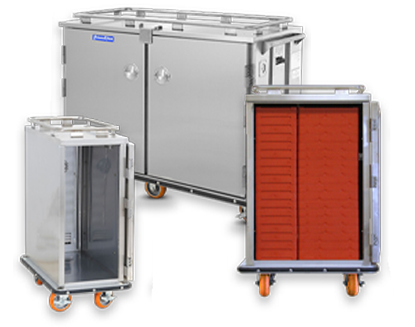

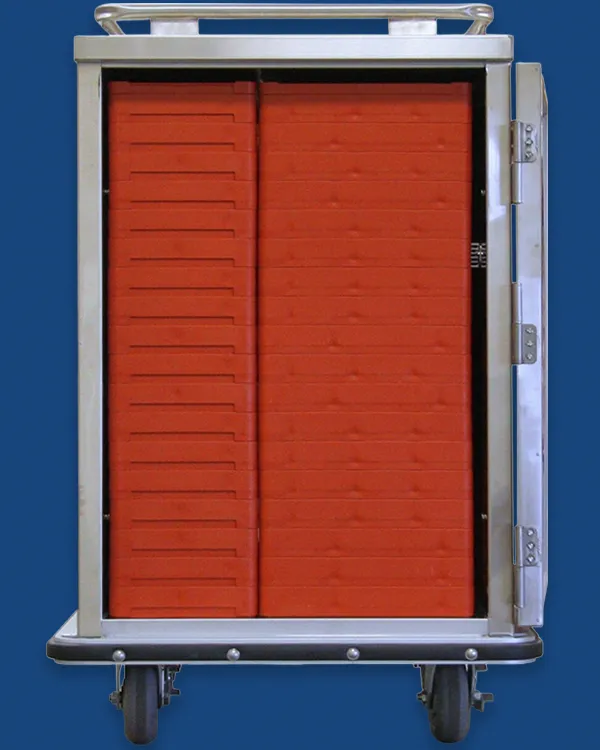

The Complete Tray & Cart System
ServeSmart is JonesZylon's integrated correctional meal delivery system. SmartTrays and SmartCarts are engineered to work together: self-locking 5-compartment trays precision-sized to stack inside corrections-grade stainless steel carts, maximizing capacity and eliminating the need for individual lids on every tray.
If your facility currently runs insulated trays, ServeSmart typically offers a significant cost advantage over a 3–5 year horizon. Insulated trays average 40–50% annual replacement rates. SmartTrays routinely last 10 years or more. The cart does the insulation work, so you're buying a better product and replacing it far less often.
- SmartTrays self-lock, so only the top of each stack needs a lid
- Seven cart sizes from 54 to 204 trays per cart
- Heated or ambient configurations
- Available in copolymer or MaxFlex for higher-security environments
- UL and NSF certified, 1-year parts and labor warranty
- A full complement of trays included with each purchased cart
ServeSmart Cart Sizes at a Glance
SmartCarts are available in seven sizes to match any housing unit layout. All share the same heater system and the same integrated fit with SmartTrays.
Counts below are for standard SmartTrays. Capacity changes with tray format even when the cart stays the same, so confirm your tray and lid on the SmartTray models page first.
JZ-54
Extra Small
21.5" wide, fits tight doorways
54 SmartTrays
JZ-6UBT
Small
30.75" wide, fits most doorways
90 SmartTrays
JZ-136
Medium
Center casters, axis-turning
136 SmartTrays
JZ-168
Large
Side-mount heater
162 SmartTrays
JZ-168XL
Large Extended
Extra depth, 14 sheet pan capacity
170 SmartTrays
JZ-192XL
Extra Large
High capacity, dual-temp ready
190 SmartTrays
JZ-204
Extra Large
Highest capacity, dual-temp ready
200 SmartTrays

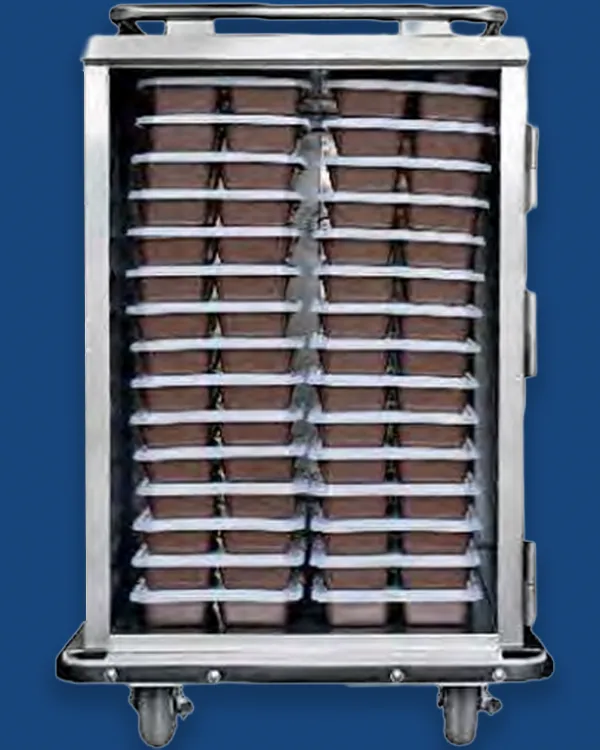

Heated Carts Built for Zero Downtime

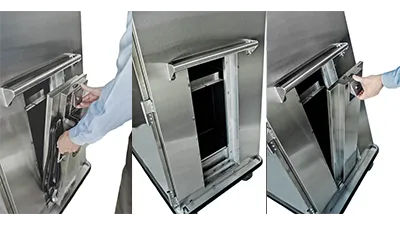

Mission Ready is JonesZylon's heated cart platform for facilities that need maximum operational flexibility. Every Mission Ready cart features a snap-in heating unit that removes without tools, meaning a failed heater can be swapped out in minutes and the cart stays in service. One spare heater can support an entire fleet.
Mission Ready carts are designed for facilities running tray programs, bulk food delivery, or any operation where the cart itself, not an integrated tray system, is the primary need. Available in compact to extreme duty configurations, in ambient, heated, dual-temp, and refrigerated versions.
- Snap-in heater removes without tools for zero downtime
- One spare heater works across the entire Mission Ready line
- Converts between heated and insulated ambient configurations
- Non-proprietary heater parts, serviceable in-house
- Compact to extreme duty models (JZH-198HD with recessed security handle)
- Compatible with 9000, 5000, 4000 series trays and SmartTrays
Mission Ready Models at a Glance
Mission Ready spans from compact carts for tight corridors to high-capacity extreme duty units for demanding housing environments. All share the same interchangeable snap-in heater system.
JZH-6UBT-RH
Compact Heated
30.75" wide, fits most doorways
Up to 90 trays
JZHA Series
Heated & Ambient
84 or 112 tray dual-temp configurations
84–112 trays
JZ-168 Series
Large Heated or Dual-Temp
Axis-turning maneuverability
Up to 168 trays
JZH-198HD
Extreme Duty
Reinforced bumpers, recessed security handle
Up to 198 trays
Compare heated carts by full model number and loading arrangement. Listed loads are alternatives, not combined: the JZH-198HD holds 198 9000-series trays, 168 standard SmartTrays or 102 SmartTray XD trays.
View All Models & Spec SheetsUnderstanding ServeSmart and Mission Ready
Are ServeSmart and Mission Ready the same thing?
Not exactly, but there's significant overlap. ServeSmart is the name for JonesZylon's integrated tray and cart system: SmartTrays and SmartCarts engineered to work together. Mission Ready refers to the removable heater design built into most JonesZylon heated carts. Most heated ServeSmart carts are also Mission Ready carts, meaning you get the integrated tray system and the zero-downtime heater in the same unit.
Which one should my facility be looking at?
If you're evaluating a tray program alongside a cart, start with ServeSmart. If you already have a tray program and need heated carts, start with Mission Ready. Still not sure? Your regional sales manager can sort it out in a single conversation.
Talk to Your Regional Sales ManagerPlanning Your Meal Delivery Route
The questions facilities work through before choosing carts, sizing a fleet or troubleshooting temperature loss.
Why is the food cold by the time it reaches the housing unit?
Check the actual menu, tray or pan, load pattern, cart configuration and elapsed route time. Record temperatures at dispatch and at receipt under your facility food handling plan, then fix the point where the measured loss happens.
How many carts and trips does each housing unit need?
Use the printed capacity for the exact tray or pan arrangement. Divide each housing unit's meal count by that usable load and round up, then add dispatch, handoff and empty-return time to the route schedule.
Will the cart fit our corridors, doors and 120V outlets?
Measure clear openings, door swings, turns, elevator entry and the parking spot with the cart doors open, and check thresholds and floor transitions along the route. Compare those against the spec sheet dimensions and caster configuration, then test a loaded cart with the staff who will move it. Give facilities staff the full electrical spec: the JZHA-120 lists 120V, 960W, 8A with a 5-15P plug, while the JZHR-120 lists 120V, 1680W, 14A with a 5-20P plug. Both run on 120V but need different circuits.
How should we plan cell-front feeding and late trays?
Test a loaded cart at the actual handoff opening and record the tray, lid and beverage arrangement that works. Give late meals a defined identification, holding and release path under your facility food handling plan.
What happens during the sanitation cycle?
Run the selected trays, lids, racks and removable cart parts through your approved wash process. Confirm you have drying and clean-storage space before using cart capacity to set fleet size.
Frequently Asked Questions
Is a heated/ambient cart refrigerated?
No. The JZHA heated/ambient configuration has an unheated compartment. Choose a JZHR heated/refrigerated configuration when active refrigeration is part of your operating plan.
Can I use the cart model number as its SmartTray capacity?
No. Read the capacity for your exact tray on the matching spec sheet. The number in a cart's model name can differ from its published standard SmartTray and XD counts.
What should we bring to a virtual demo?
Bring your tray and lid identifiers, meal counts by housing unit, route measurements, outlet information, and your current loading, return and cleaning sequence.
More Correctional Food Service Equipment
Beyond ServeSmart and Mission Ready, JonesZylon supplies the full range of equipment correctional kitchens need, from holding cabinets that maintain safe temperatures during staging, to retherm ovens for high-volume reheating, to transport carts that move meals through the facility safely and efficiently. Need to stage trays before delivery? See our staging carts.
Holding Cabinets
Holding Cabinet
Maintain safe food temperatures during staging with durable, energy-efficient holding cabinets built for high-demand correctional kitchens.
Retherm Ovens
Retherm Oven
Consistent, high-volume reheating with programmable controls and rugged construction tailored for correctional food service demands.
Transport / Enclosed Carts
Transport Cart
Open and enclosed transport carts built for efficient, secure meal movement through correctional facilities.
Options & Accessories
Options & Accessories
Upgrades and add-ons to tailor your equipment to the unique security and operational demands of your facility.
Ready to Request a Quote?
Tell us your facility size, tray program, and housing unit configuration and we'll recommend the right system and put together pricing. Prefer to talk it through first? Your regional sales manager is happy to help.
Spec Sheets & Downloads
JonesZylon equipment carries a one-year parts and labor warranty for defects in material and workmanship, from the date of original shipment. Repairs are performed by a JonesZylon-approved service agency with a Warranty Service Authorization number. See full warranty terms.
