Identify the cart and installed heater before requesting a spare. Match the replacement assembly and electrical requirements with JonesZylon before scheduling service.
Download Spec Sheet

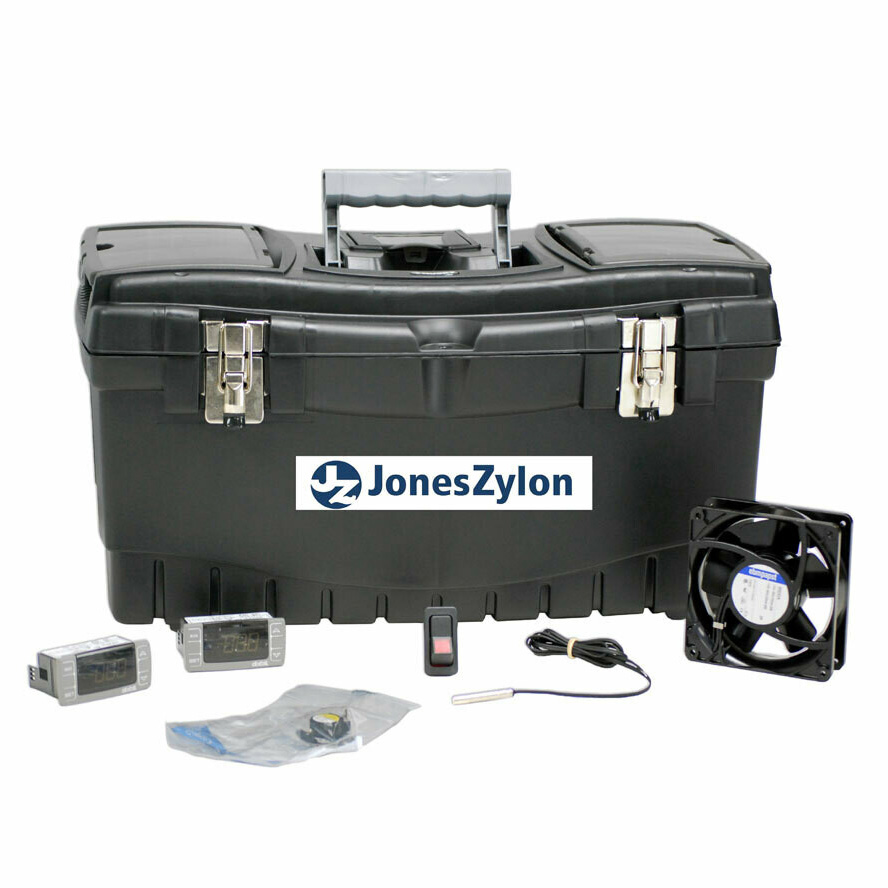

Keep your equipment operational with all critical spare parts conveniently packaged in one toolbox. Minimize downtime and stay mission ready.
Download Sell SheetReinforce the most vulnerable components of your equipment for high-abuse environments to increase durability.
Download Sell Sheet

Features a full welded steel frame with a pin-style hitch that locks upright without tools. Rated for towing up to 8,000 lbs.
Download Spec Sheet

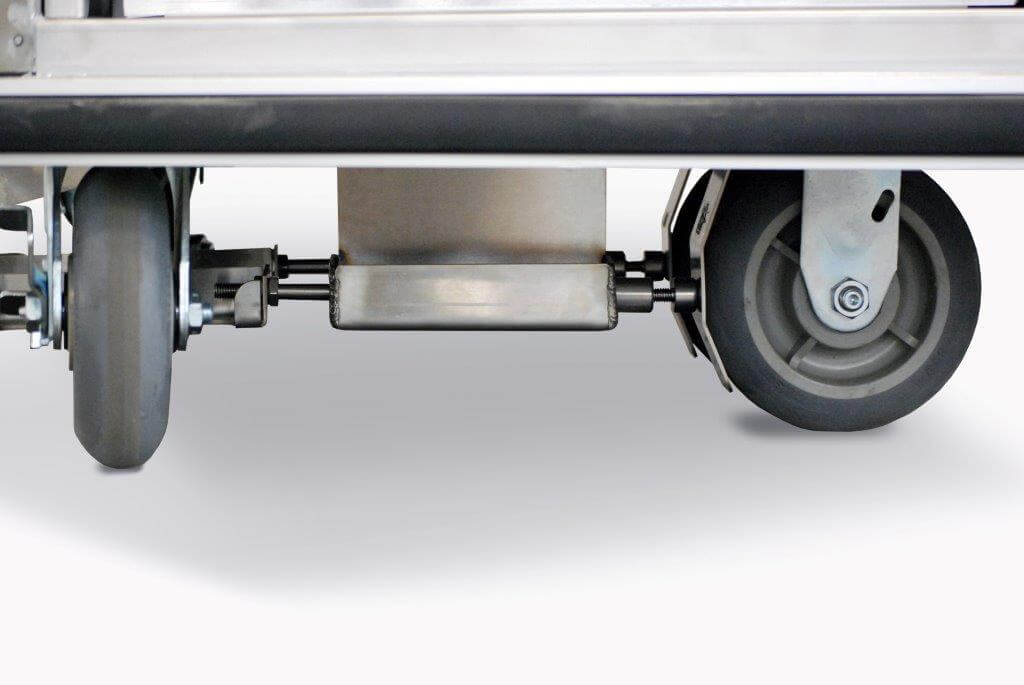

Engages automatically when the push lever is released, adding a safety layer during transport.
Download Spec Sheet

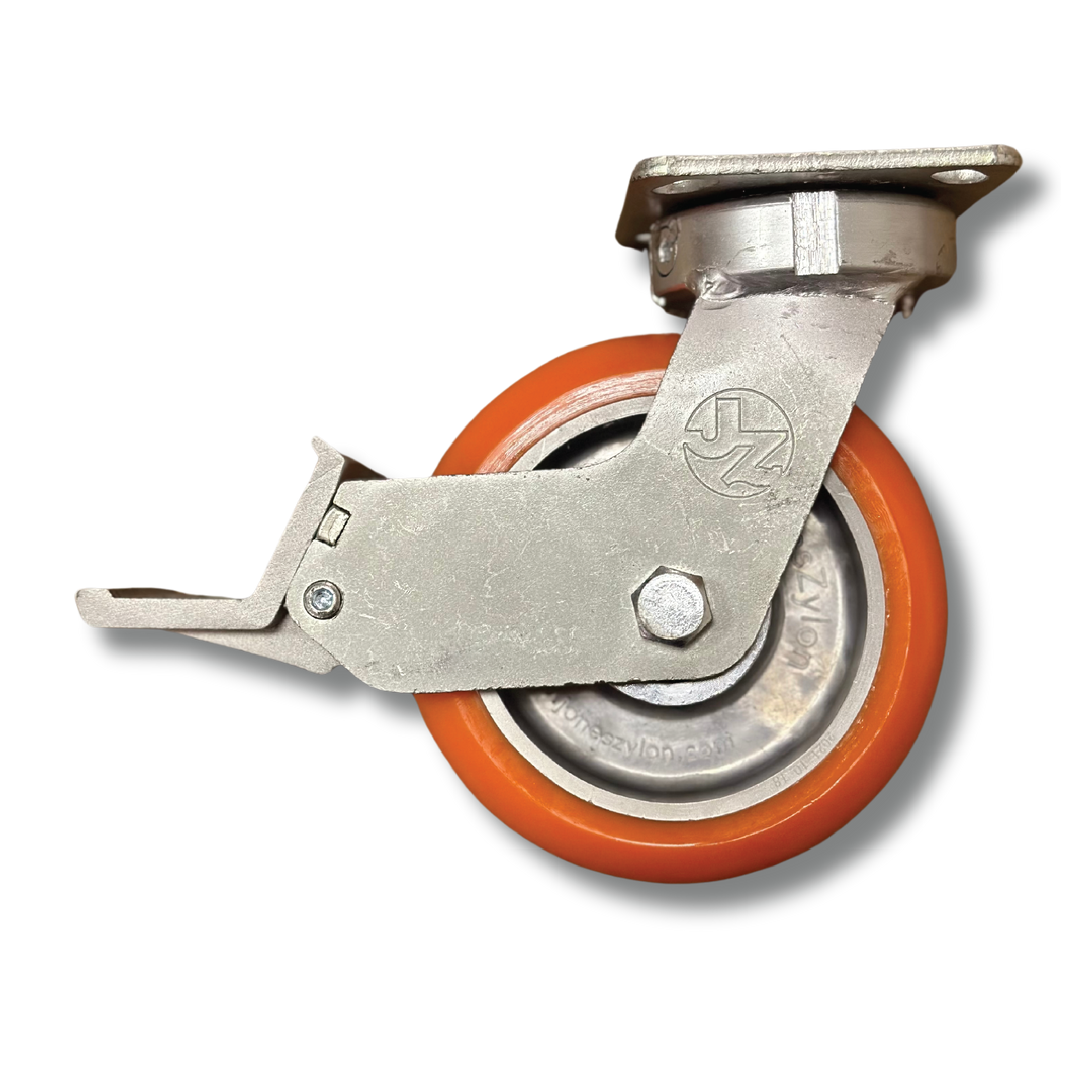

The Caster Guide describes the Premium Multi-Terrain caster as the standard caster on JonesZylon carts. It is intended for general use, with cushioning for severe cracks, a quiet ride and easier pushing.

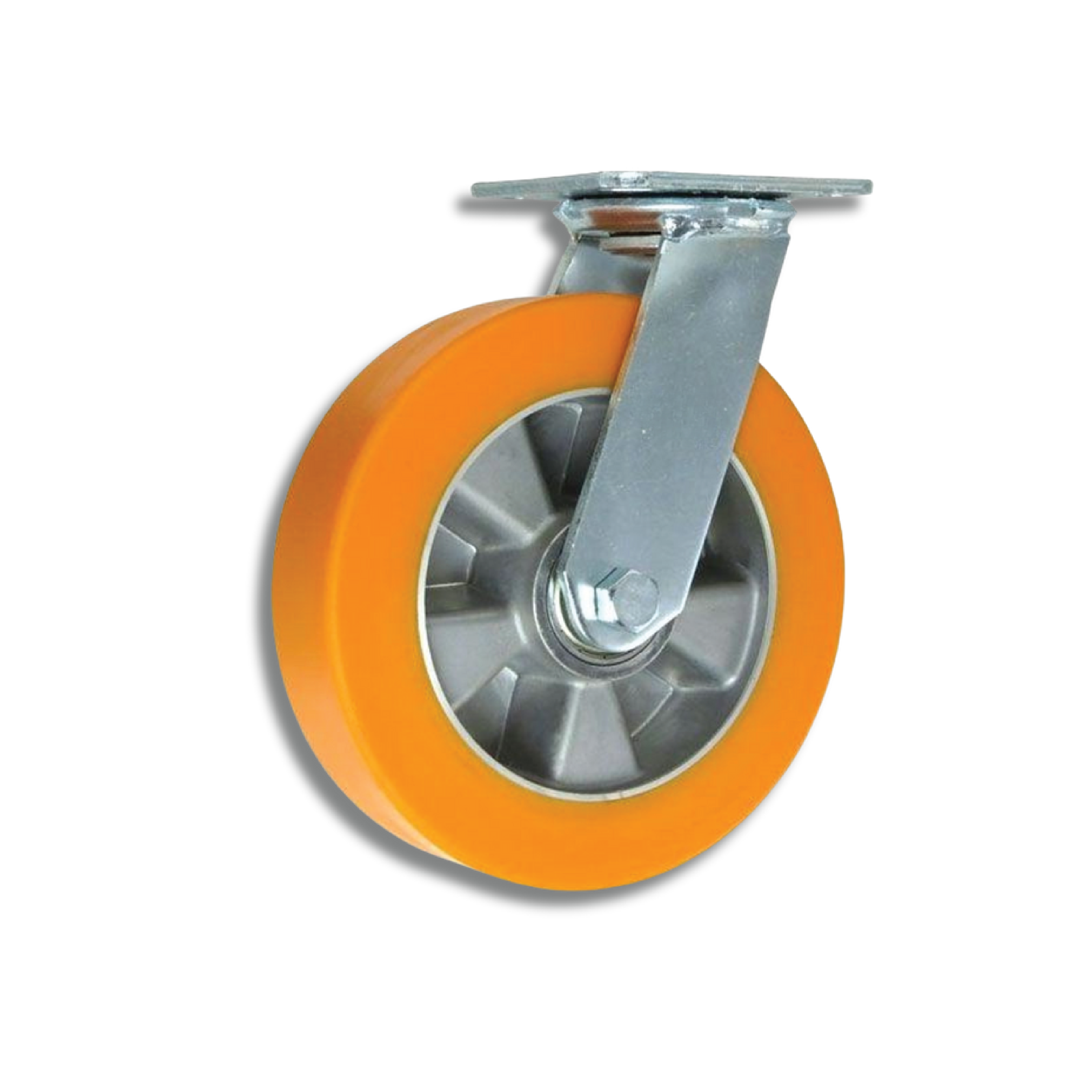

This is a flat tread caster, with a thin profile that improves maneuverability by minimizing the compression on carpet while keeping the noise down.

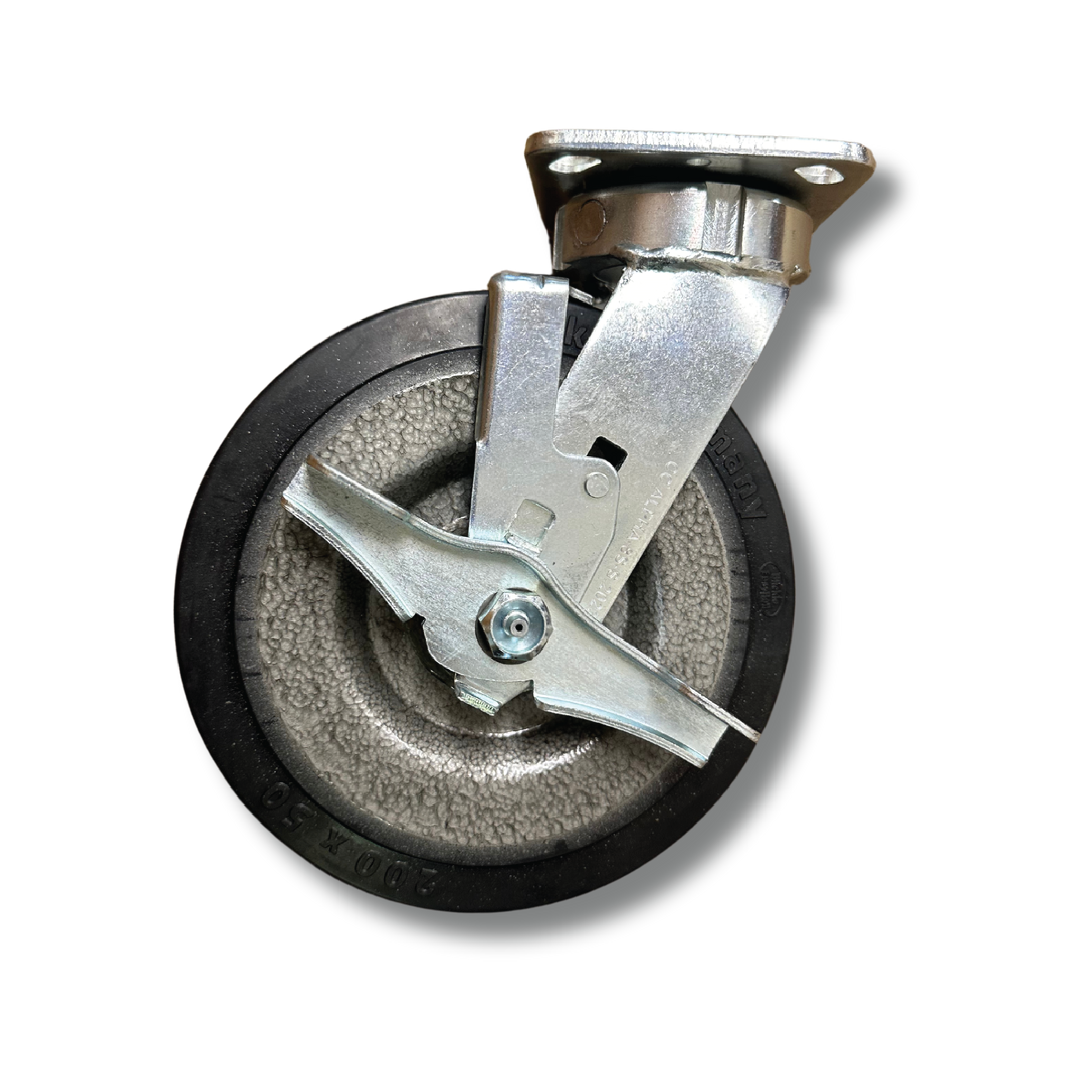

The Caster Guide describes Premium Endurance for abrasive surfaces. Manufactured with a pressed steel core and a solid rubber tire, this caster is made to be pulled over solid, abrasive surfaces.

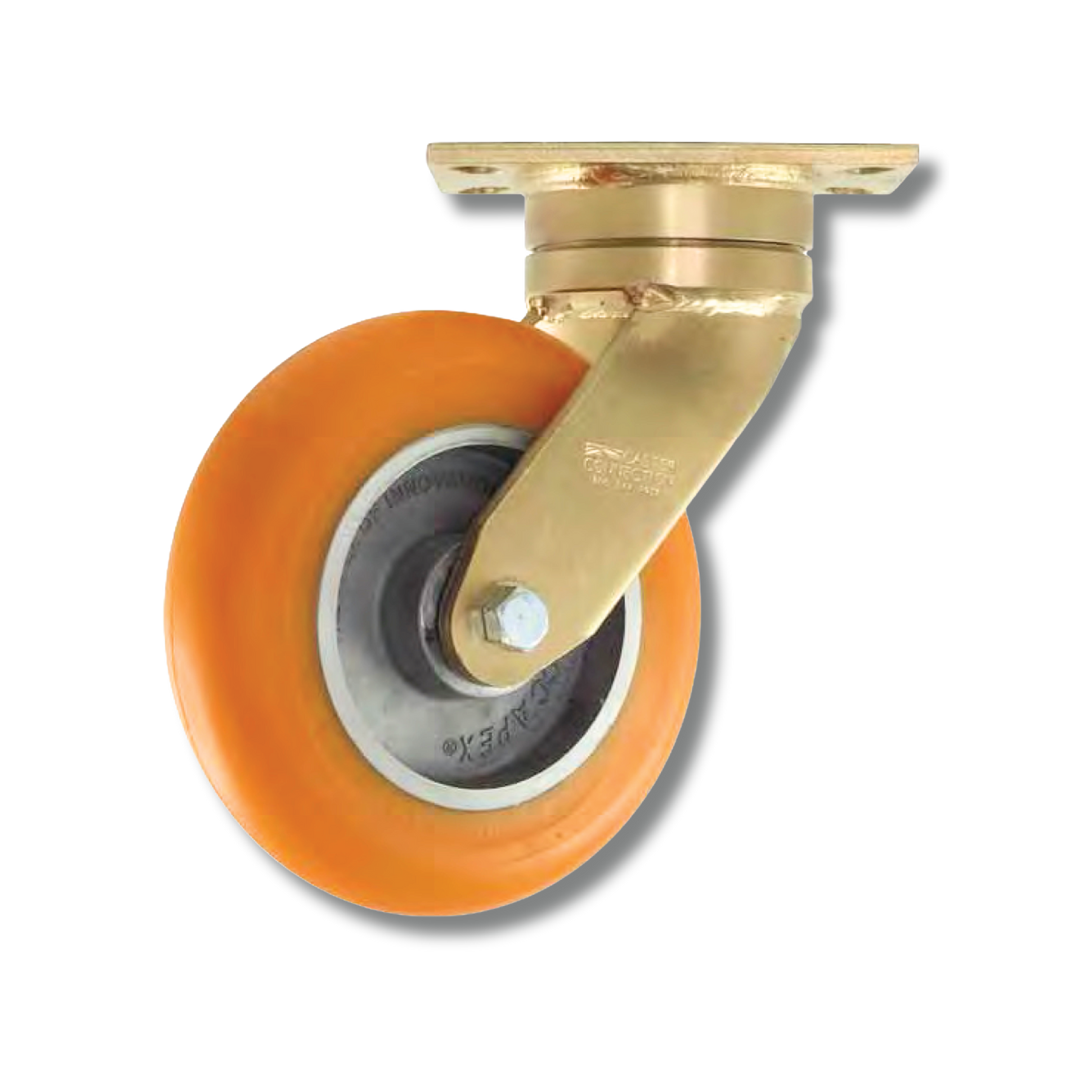

This caster has zinc plating to protect it from long-term exposure to moisture. These casters also feature sealed bearings to keep debris from building up inside your caster.

These casters are made of durable, puncture-resistant material that will not go flat.

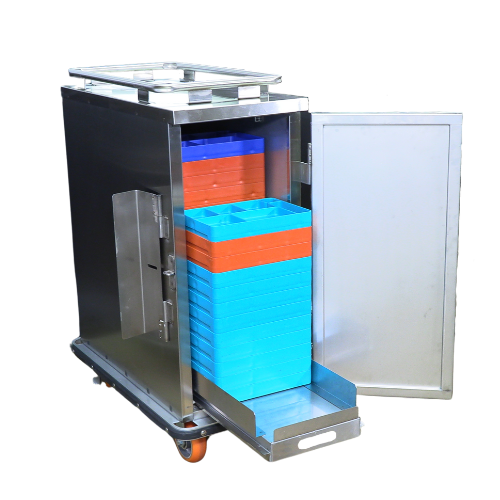

Configure shelves and slides to optimize food loading/unloading based on your specific process needs.

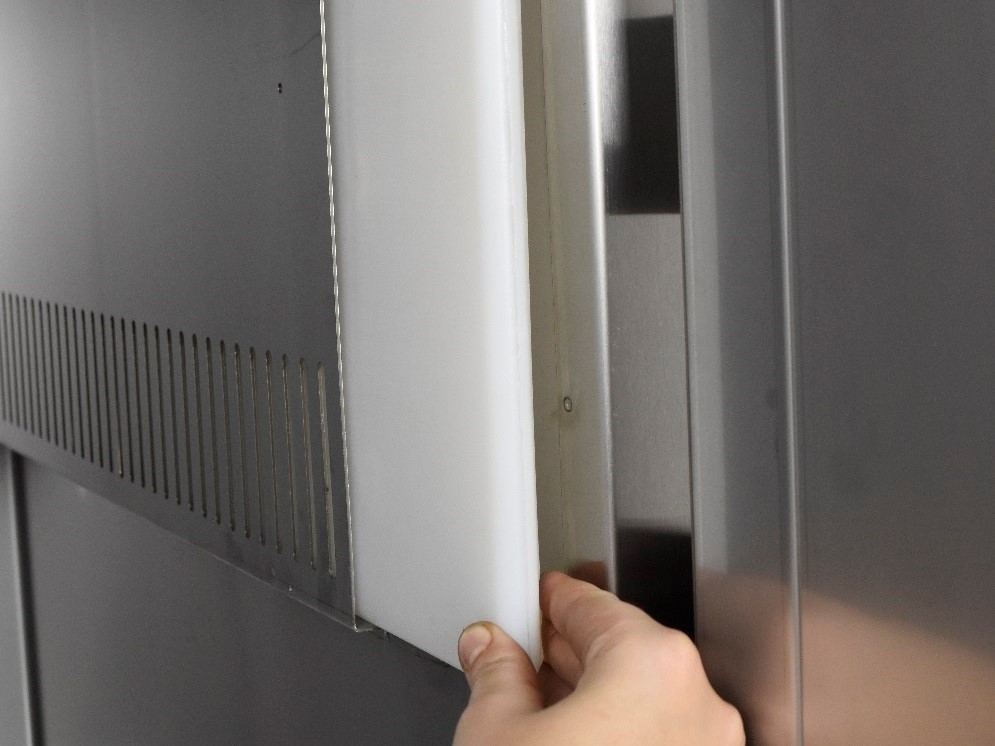

Keep food chilled longer. Simply freeze and mount plates into brackets in the ambient section of the cart.
Download Spec Sheet

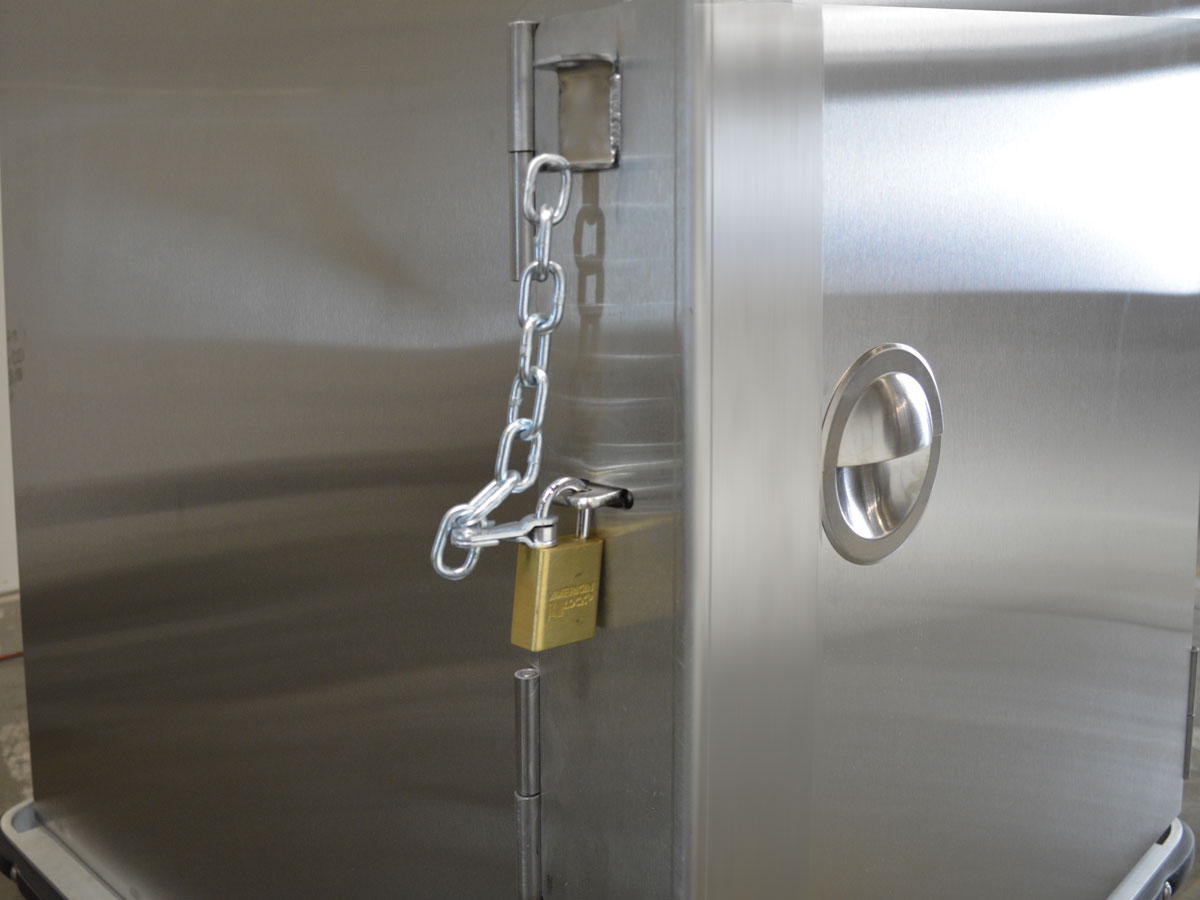

Permanently secure padlocks to carts to prevent loss or theft. Ask JonesZylon to confirm the lock-tether attachment, supplied hardware and compatible cart models.

Ideal for beverage service, permanently mounted shelves enhance serving flexibility.
Download Spec Sheet

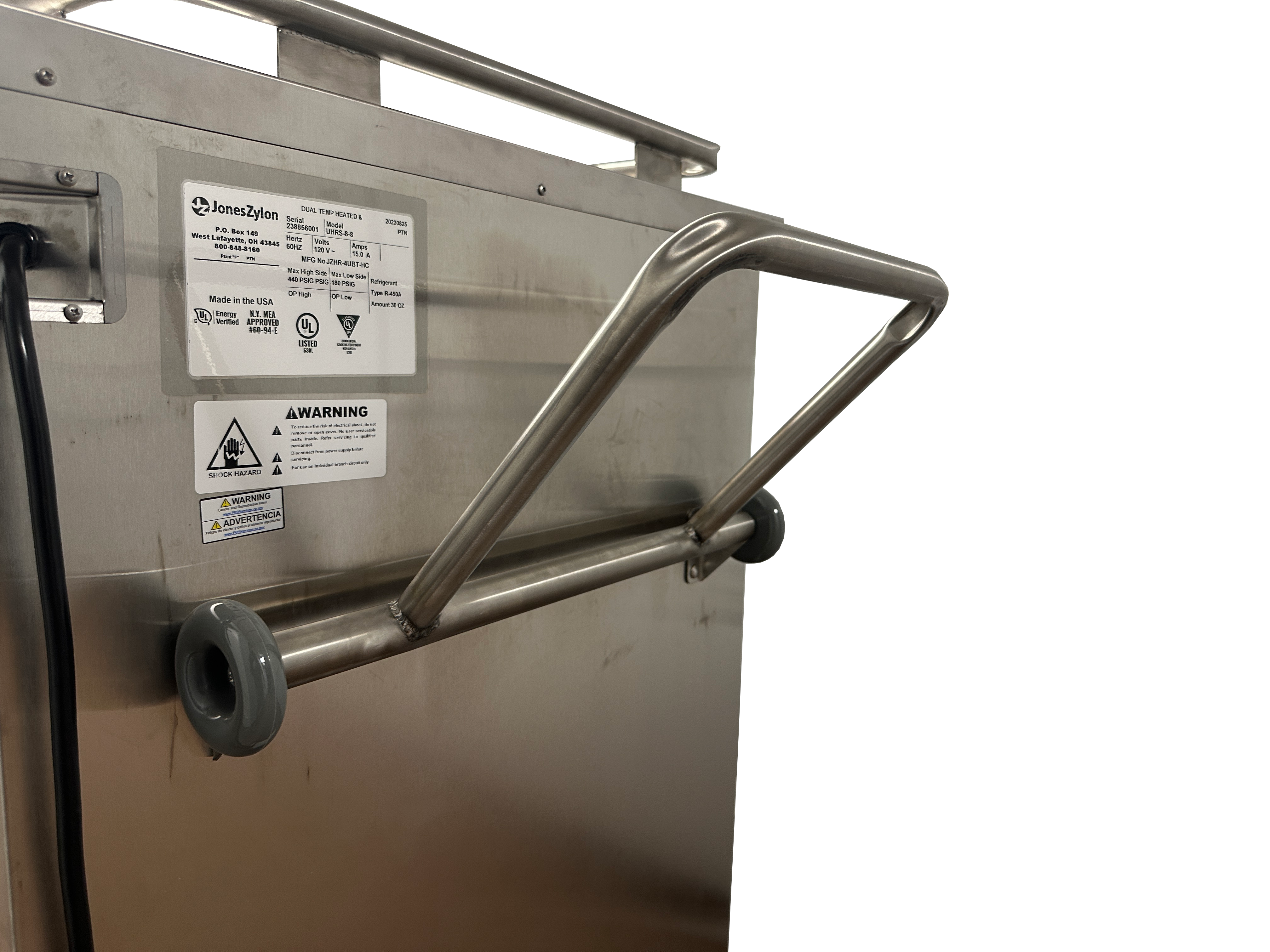

Pull carts safely with a hinged handle that keeps distance from the user's heels

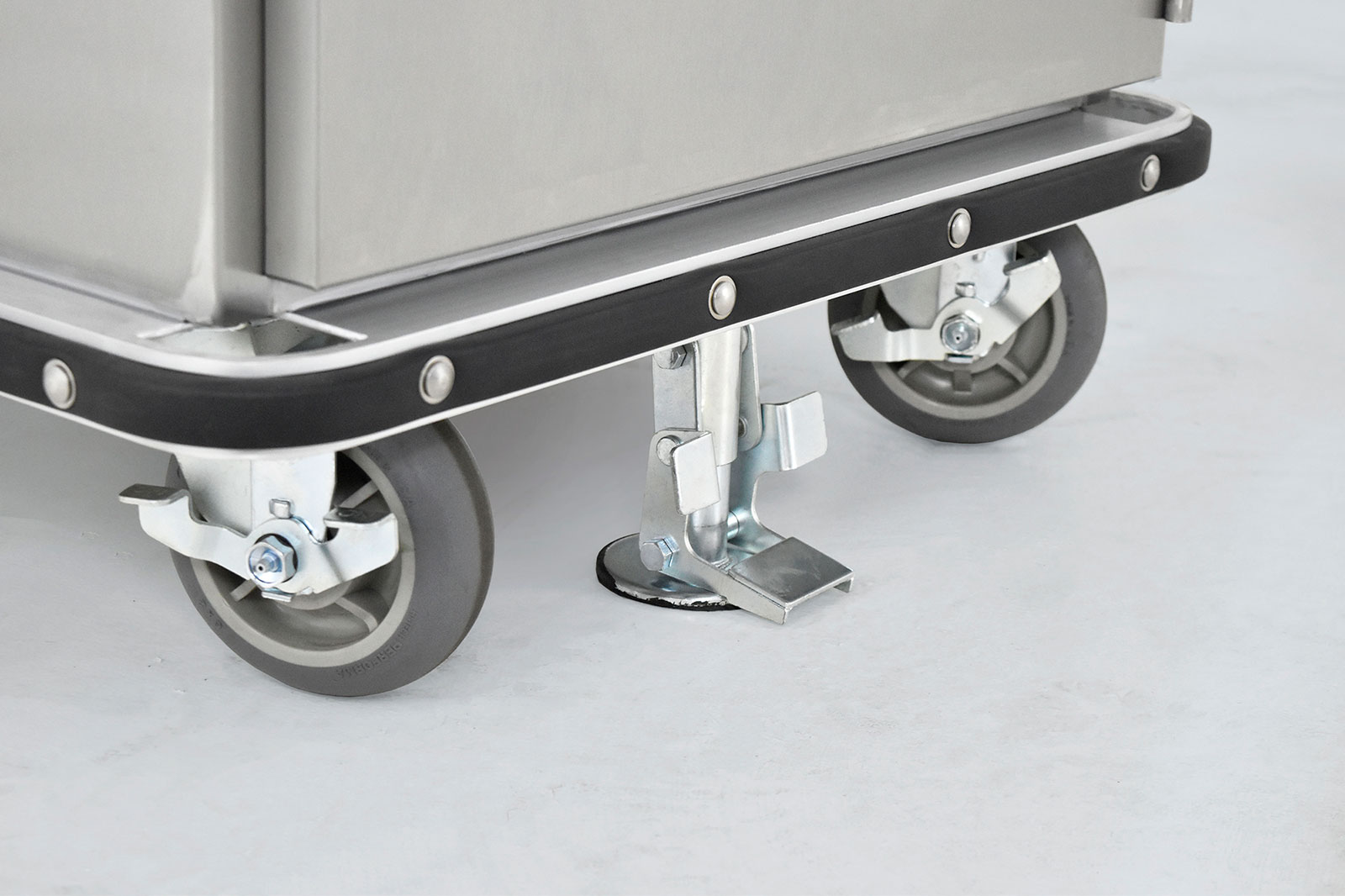

Foot-operated pedal securely locks cart in place, especially helpful during transport in box trucks. Obtain the approved vehicle securement instructions before transporting a cart in a truck.

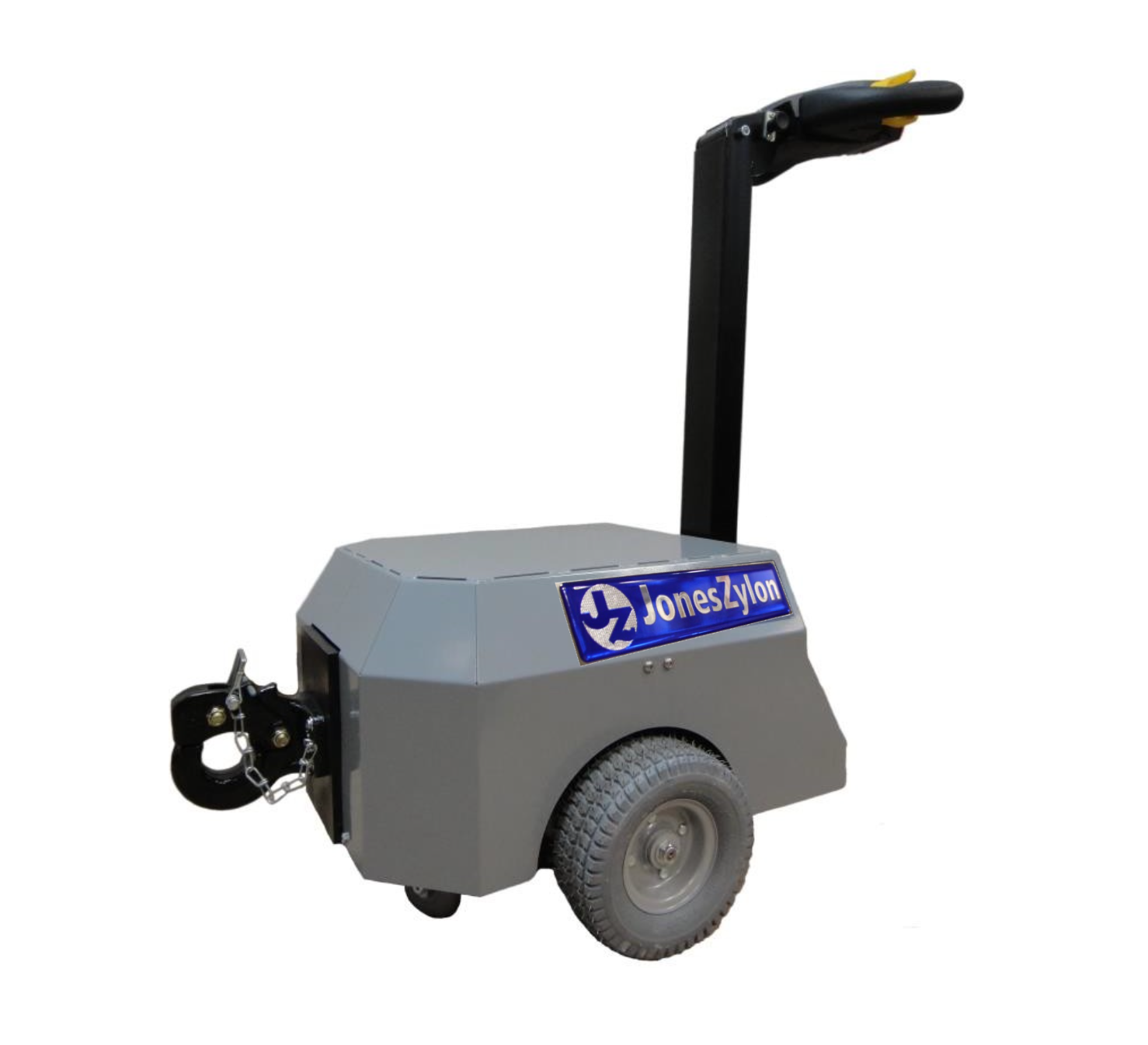

The Tugger sheet rates this unit for 2,000 lb and states up to 8 hours of operation on a single charge. Tugger specification (PDF).
Download Spec Sheet

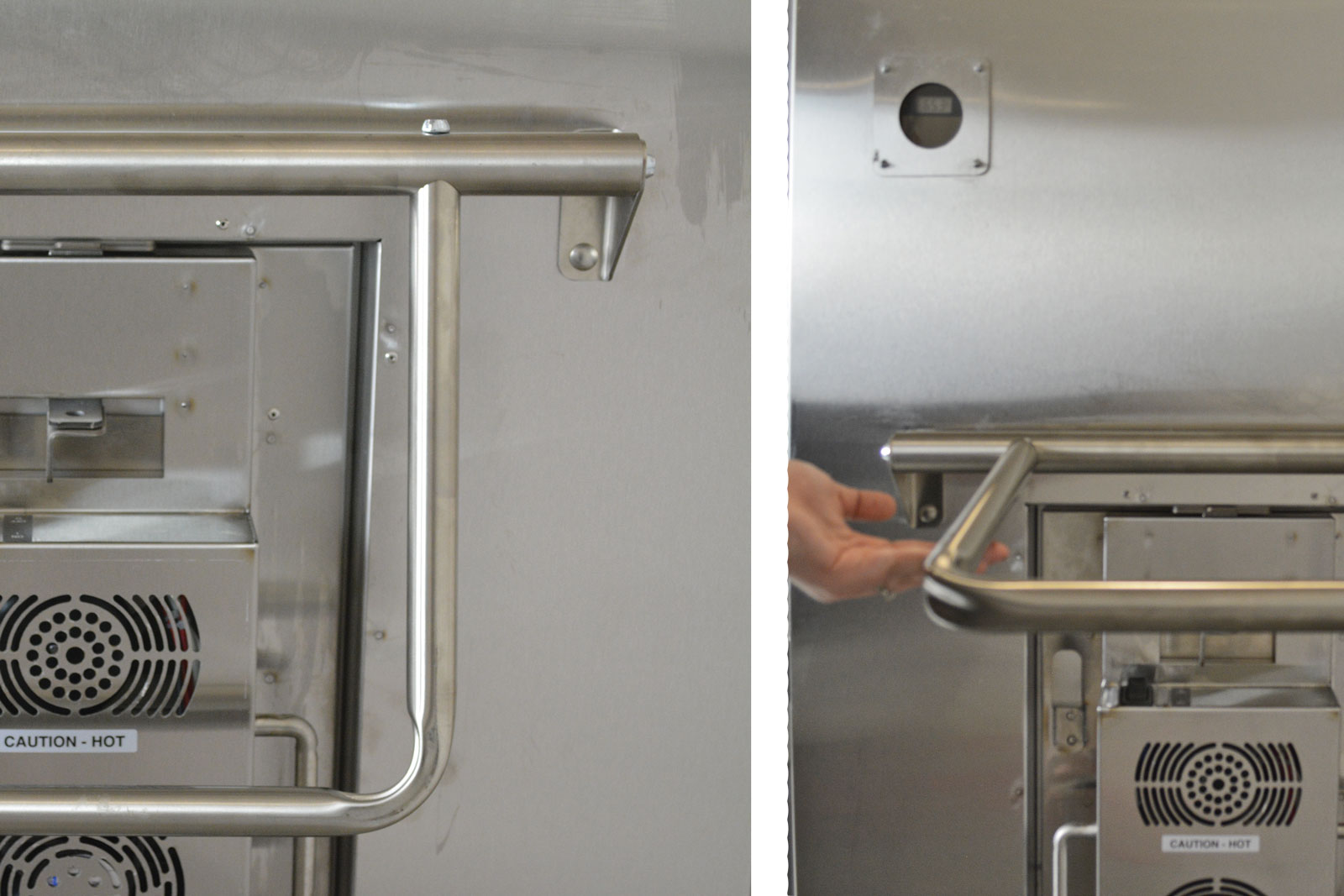

Hinged handle allows carts to be "pulled" at a safe distance from heels.
Download Sell Sheet

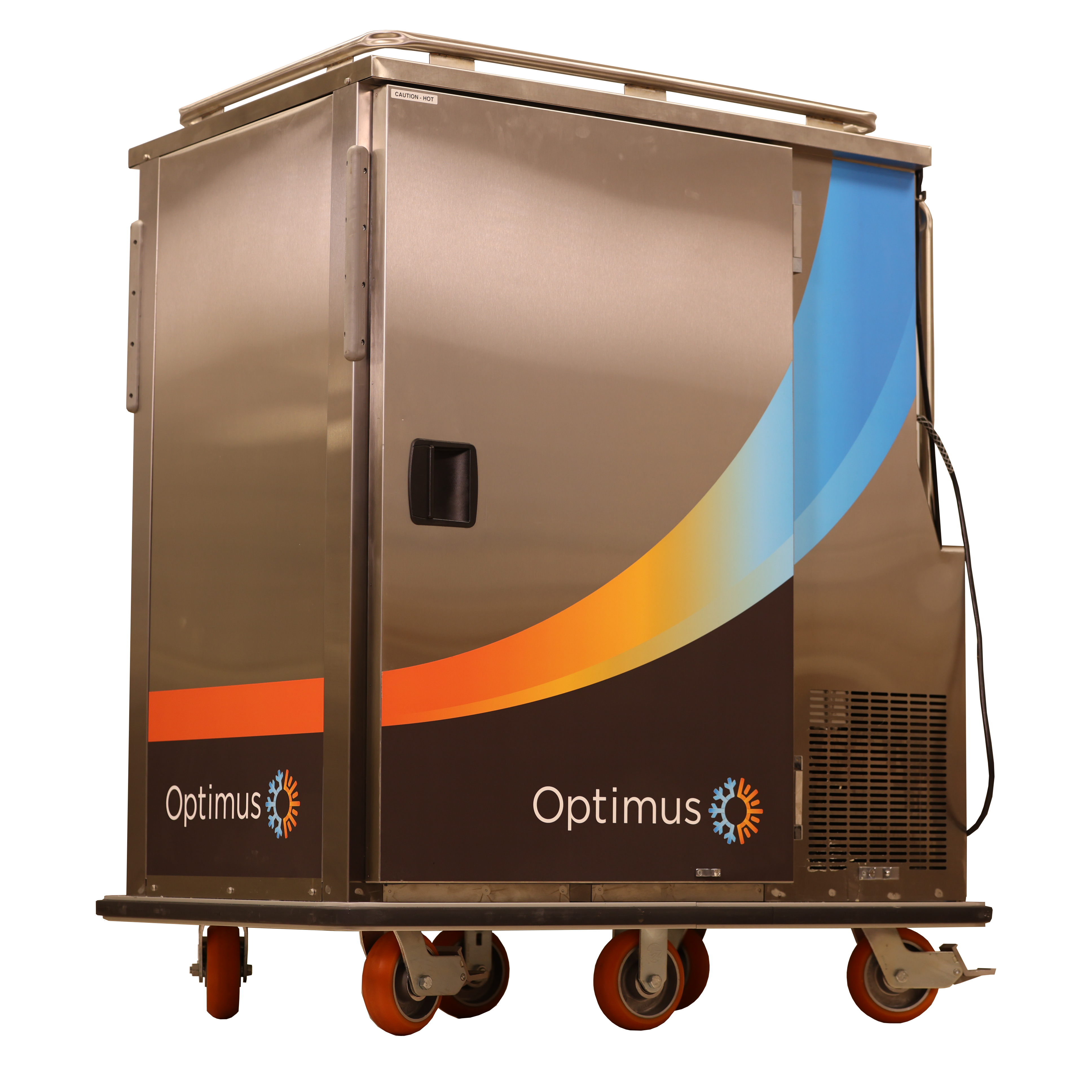

Put your logo on your cart or designate your carts for specific areas by creating custom artwork for your cart.

Keep track of menus and other documents by adding a menu card holder to your cart to avoid losing or scattering important information.

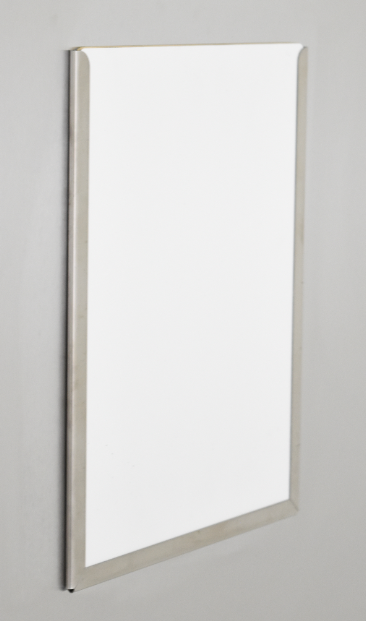

Communication is key in any organization. Add a dry erase board to your cart allowing communication between staff changes and mealtimes.

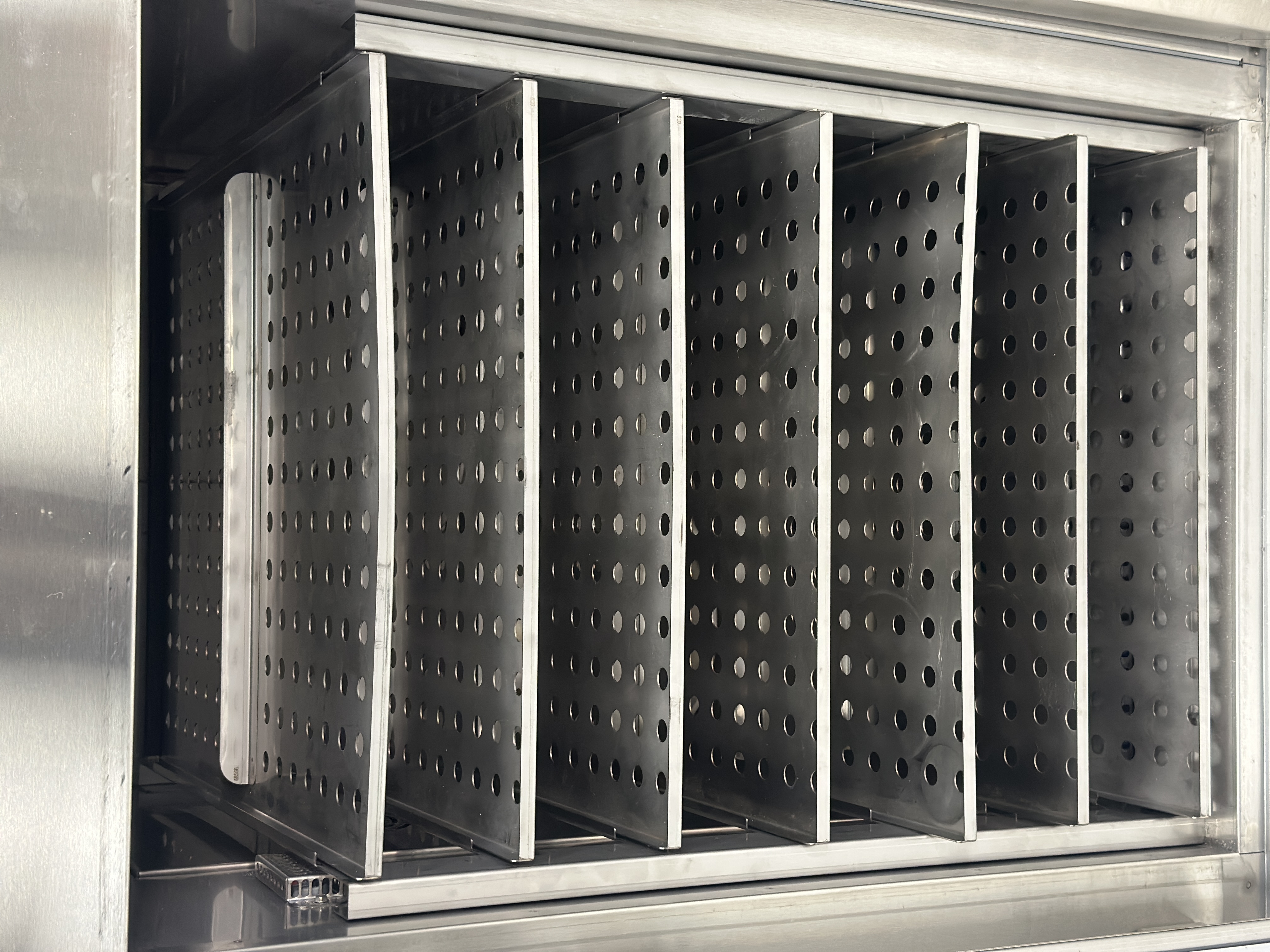

Download Spec SheetAdditional shelving is available for residents who request Kosher delivery.
Which meal cart option fits your route or maintenance problem? Start with the cart model and serial number. Compare handling options, power and heater parts, cold plates, identification accessories and service parts against the installed configuration.
JonesZylon equipment carries a one year parts and labor warranty for defects in material and workmanship, running from the date of original shipment from the plant. All labor is to be performed by a JonesZylon-approved service agency that obtains a Warranty Service Authorization number before the repair. See the full warranty terms.
| Option | Published detail and selection check | Source |
|---|---|---|
| Tow package | Rated for 8,000 lb; pin-style hitch. | Tow Package specification (PDF) |
| Tugger | Rated for 2,000 lb. Width 24 inches; height 53 inches; length 25-45 inches. | Tugger specification (PDF) |
| Brake assembly | Continuous-grip brake; the sheet describes immobilizing the cart when the lever is released. Dimensions depend on the cart. | Brake Assembly specification (PDF) |
| Cold plates | Freeze for 12-24 hours before use; install in the ambient-section brackets. After use, remove, clean and refreeze. | Cold Plates specification (PDF) |
| JZ-HBC-8 spare-heater cabinet | 43.38 H × 35.13 W × 31.75 D inches. Capacity: 8 of the named HU-1000M, HU-1500, HU-1500M, HU-2000 or HU-2000M heat boxes; ambient storage. | JZ-HBC-8 specification (PDF) |
| Spare heater HU-1000 | 120 volts; 1,200 watts; 10 amps; 5-15P plug. | Spare Heater specification (PDF) |
| Spare heater HU-1500 | 120 volts; 1,700 watts; 14.2 amps; 5-15P plug. | Spare Heater specification (PDF) |
| Spare heater HU-2000 | 120 volts; 2,200 watts; 18.3 amps; 5-20P plug. | Spare Heater specification (PDF) |
| Removable power cord | 11.5-foot length. The sheet lists separate 15-amp/5-15P and 20-amp/5-20P configurations. | Removable Power Cord specification (PDF) |
| Braided stainless steel power cord | 10-foot length. Confirm connector and circuit requirements for the installed heater before ordering. | Braided Stainless Steel Power Cord specification (PDF) |
| Ergo handle | Dimensions depend on the cart. Include the mounting position and handle clearance on the quote. | Ergo Handle specification (PDF) |
| Exterior shelving | Cart-specific dimensions. State the mounting side and working clearance. | Exterior Shelving specification (PDF) |
| Dry erase board | Cart-specific dimensions. State the board location and required usable area. | Dry Erase Board specification (PDF) |
| Top perimeter bumper | Cart-specific dimensions. Include the installed bumper in doorway and parking measurements. | top perimeter bumper specification (PDF) |
Have JonesZylon review the tug, hitch, carts, casters, loaded weight, train length and route together. Test thresholds, ramps, corners and stopping under the approved operating instructions.

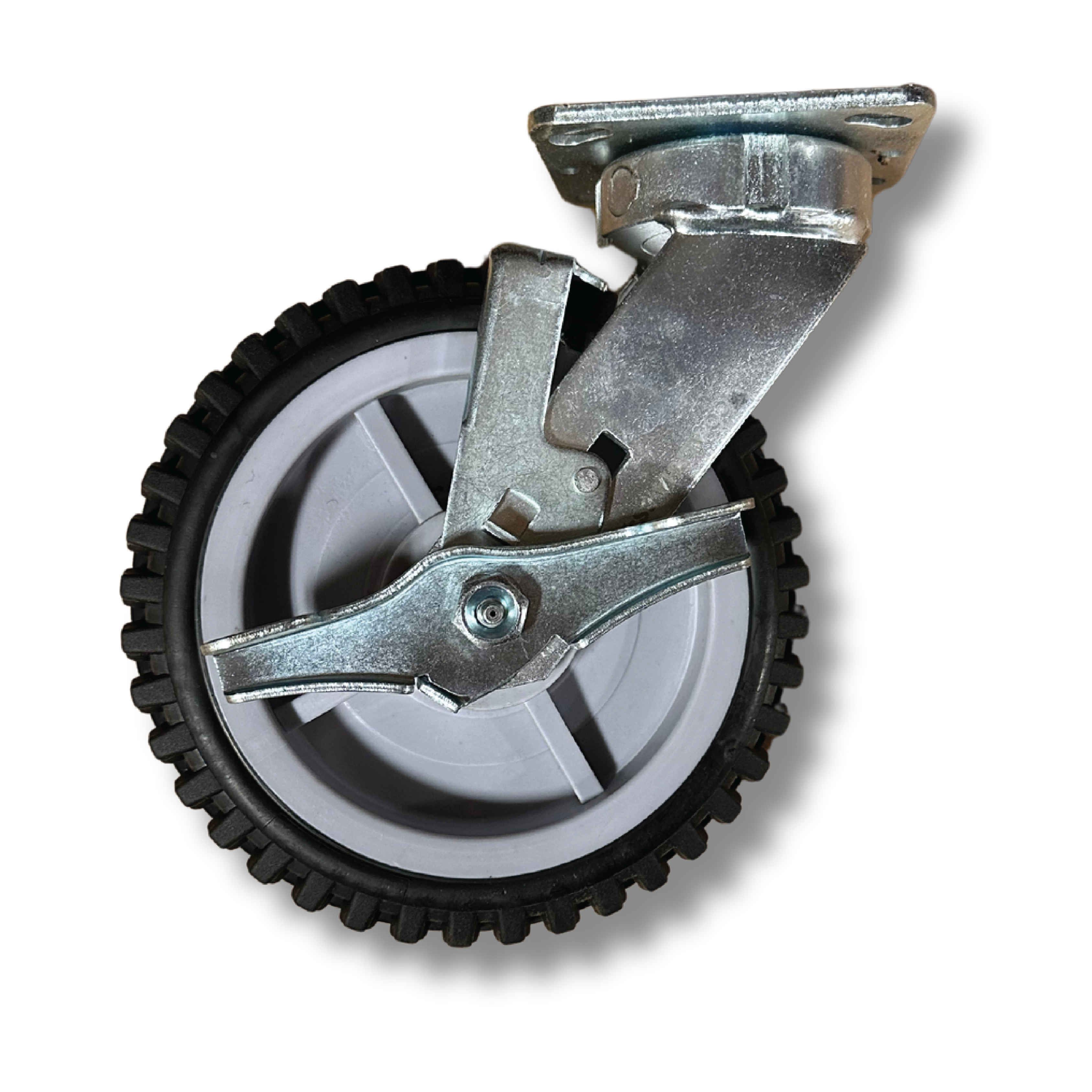

The Caster Guide (PDF) assigns Premium Multi-Terrain to general use, Carpet to soft surfaces, Premium Endurance to abrasive surfaces, Zinc Plated Sealed Bearing to wet conditions and Extreme Tread to traction needs. Compare that guidance with the loaded route. Obtain the mounting, load, brake and operating details for the quoted cart.
Keep the cart model, serial number, electrical label and installed heater identification with the parts record. The Uptime Maintenance Kit sell sheet lists a lockable box and replacement-item categories; match its current contents to the installed equipment.
Use the preparation interval printed in the cold-plate sheet when planning freezer space and the next meal cycle. Follow the facility procedure for cleaning and handling the plates, then return them for refreezing. Confirm brackets and compartment arrangement for the cart. Record food temperatures during the actual process to evaluate hold time separately from plate preparation.
No. The components have separate printed ratings. Obtain the permitted cart count, train load and route grade for the complete combination.
Match the installed assembly, electrical requirements and cart configuration before replacement. Use the approved service instructions for that combination.
