Durable, Space-Saving
Drying Racks Engineered for Correctional Kitchens

JonesZylon drying racks are built tough to handle the full spectrum of correctional kitchenware, from mainline trays and insulated trays to sheet pans and steam pans. Featuring heavy-duty aluminum construction and innovative dishwasher-safe plastic inserts, our racks extend tray life, improve sanitation, and maximize kitchen efficiency.

Need help selecting the right configuration? Your JonesZylon representative is ready to design a rack setup tailored to your facility’s unique needs.

Drying Racks Drying Inserts Bun Pan Racks Accessories Contact Us

Which tray drying rack fits your trays and dish room?

Choose a tray drying rack by the tray, lid or pan, the matching insert, peak wash-line return and available dish-room floor space. Keep insert slot counts separate from the tray capacity printed for each rack.

Compare tray drying rack capacities

Start with the item being dried and its loading position. Model suffixes may describe slots or a total tray load, and lids occupy their own space. Keep tray and lid counts separate so the quoted configuration covers the full returned set.

Printed drying-rack specifications. Dimensions are height × width × depth in inches.
ModelDimensionsPublished loading basisConfigurationSource
JZDRA-9272.63 × 80.50 × 22.88184 SmartTrays; 184 PRTS-5000 trays; 184 large segregation trays or 276 medium/small segregation trays.Four shelves; JZDRI-3 inserts; four 6-inch swivel casters with brakes.JZDRA-92 specification (PDF)
JZDRA-11572.63 × 80.50 × 22.88All-tray loading: 230 PPST-9300 or PPST-9400; 345 JZCC-5200 or JZCC-4200. Lid loading needs configuration review.Five shelves; JZDRI-3 tray slots; four 6-inch swivel casters with brakes.JZDRA-115 specification (PDF)
JZDRA-156/9272.63 × 80.50 × 22.88The sheet identifies JZDRA-156/92. JZDRI-3: 92 slots; JZDRI-4: 220 slots; JZDRI-5: 156 slots per rack.Four shelves; interchangeable inserts; four 6-inch swivel casters with brakes. Slot counts are not tray counts.JZDRA-156-92 specification (PDF)
JZDRA-17272.63 × 80.50 × 22.88Top row: 55 sheet pans, 18 × 26 inches. Bottom-row line-pan capacity requires confirmation: the sheet prints 57 pans across three rows but also 39 slots per shelf. Request the loading drawing.Four shelves; JZDRI-4 sheet-pan inserts and JZDRI-5 line-pan inserts; four 6-inch swivel casters with brakes.JZDRA-172 specification (PDF)
JZDRA-220SP80.13 × 80.50 × 22.88220 sheet pans (18 × 26 inches) or lids with JZDRI-4 inserts.Four shelves; four 6-inch swivel casters with brakes. Request the loading layout for mixed pans.JZDRA-220SP specification (PDF)
JZDRA-76TP82.50 × 80.50 × 22.8812 × 20-inch steam pans: 76 at 2-inch depth, 76 at 4-inch depth, or 52 at 6-inch depth.Four shelves; JZDRI-5 inserts; four 6-inch swivel casters with brakes.JZDRA-76TP specification (PDF)
JZDRA-240H64.50 × 60.00 × 28.00240 large SHU trays or 320 medium SHU trays, as printed. Four tray levels; four 5-inch swivel casters. The sheet does not specify caster brakes.JZDRA-240H specification (PDF)
JZDRA-276S75.50 × 64.00 × 28.50276 mainline trays (10 × 14 inches), 138 sheet pans (18 × 26 inches), or 84 bulk pans (12 × 20 inches).Three tray levels; 1.40-inch slots; four 5-inch swivel casters.JZDRA-276S specification (PDF)
JZDRA-144S69.25 × 64.00 × 28.50144 insulated trays or 144 JonesZylon SmartTrays. Three tray levels; 2.65-inch slots; four 5-inch swivel casters.JZDRA-144S specification (PDF)

The universal rack sheet uses JZDRA-156/92; its download filename uses JZDRA-156-92. Use the sheet designation when identifying an existing rack. For a mixed load, send a list of each tray and lid model with quantities. Ask JonesZylon to check the loading plan before you convert slots to tray counts or order replacement inserts.

Drying racks carry a 12-month warranty from the date of purchase against defects in material or workmanship, and that warranty does not cover casters or wheels. See the full warranty terms.

Which replacement drying insert should you order?

Printed insert geometry. Dimensions are length × width × height in inches.
InsertSlot widthDimensions and intended itemsSource
JZDRI-33 inches21.63 × 9.50 × 4.00; SmartTrays, insulated trays and segregation trays.JZDRI-3 specification (PDF)
JZDRI-41.125 inches21.63 × 9.50 × 7.00; tray lids and sheet pans.JZDRI-4 specification (PDF)
JZDRI-51.813 inches21.63 × 9.50 × 3.88; bulk pans and cafeteria trays.JZDRI-5 specification (PDF)

Match the existing rack and item to the insert sheet. Photograph the shelf and slot opening when requesting a replacement.

Rack and insert photographs

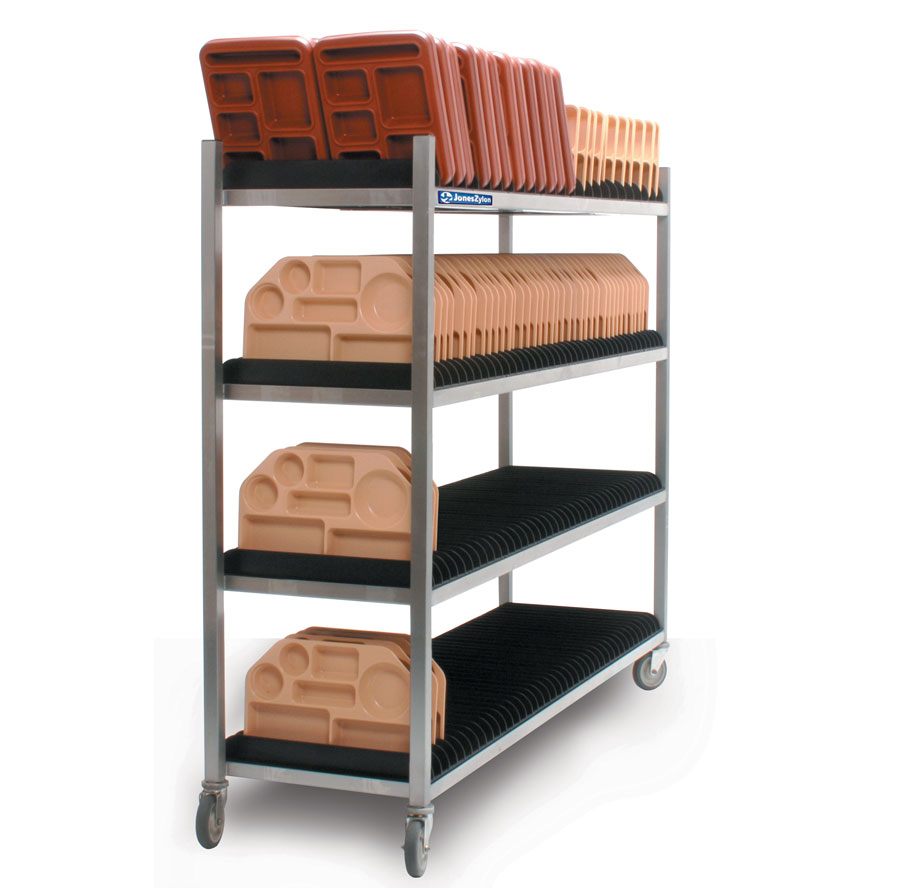

JZDRA-92 correctional tray drying rack shown from front

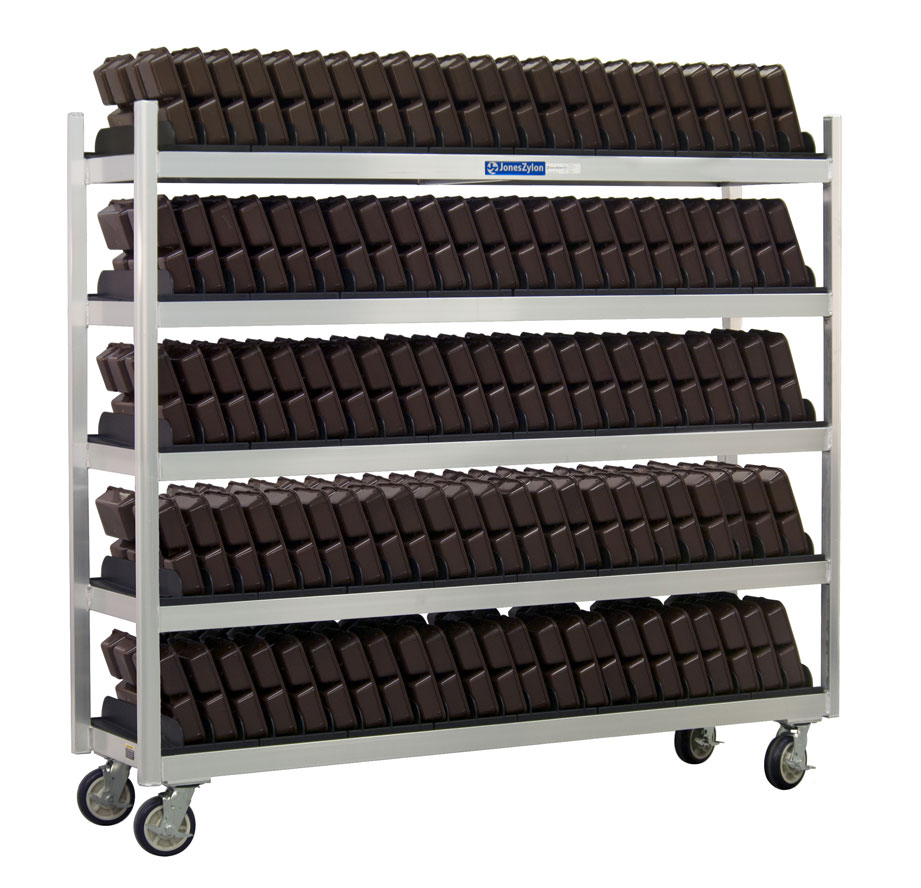

JZDRA-115 correctional tray drying rack shown from front

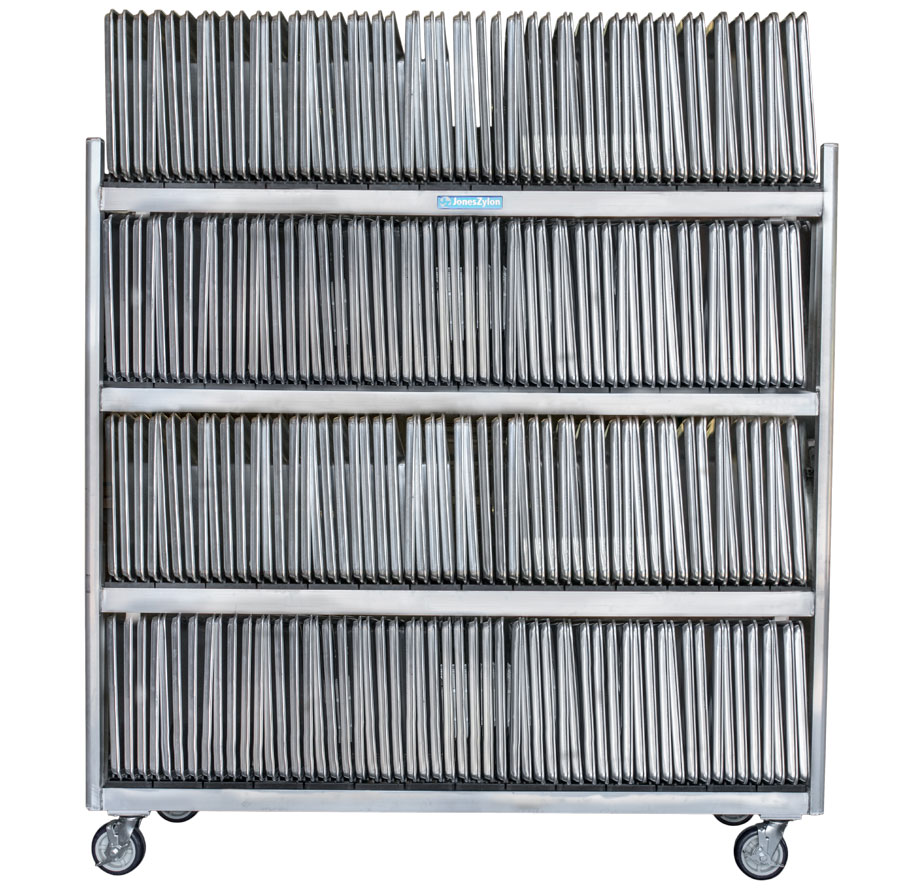

JZDRA-220SP correctional pan drying rack shown from front

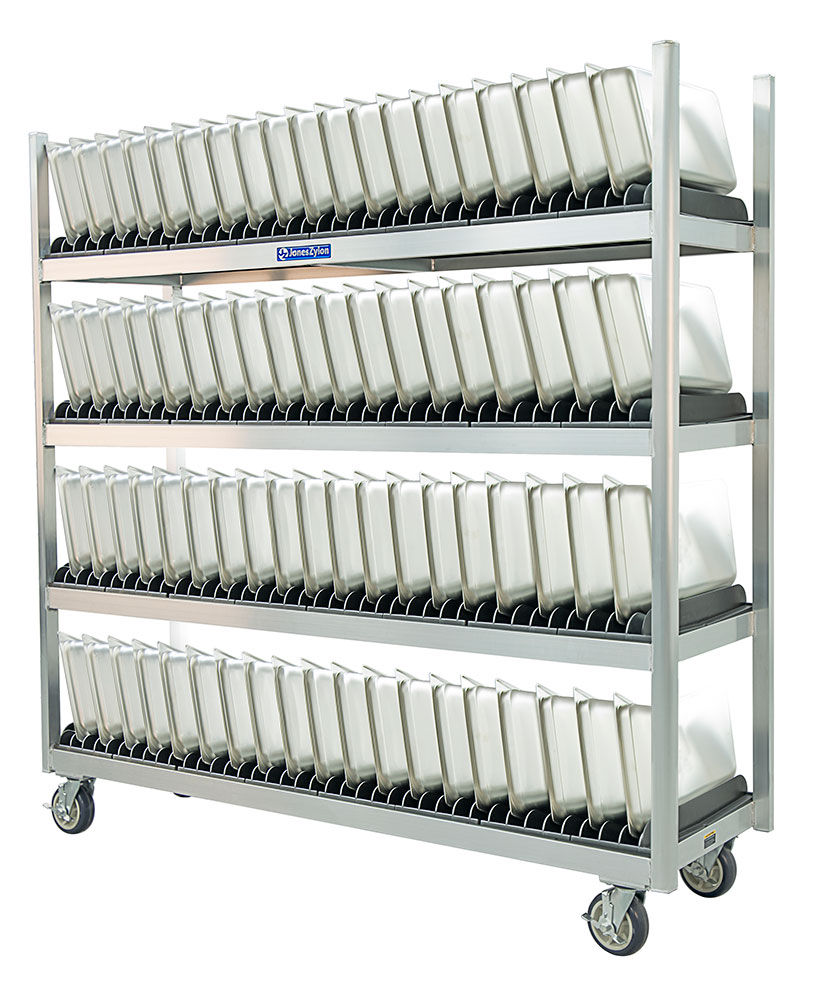

JZDRA-76TP steam pan drying rack shown from front

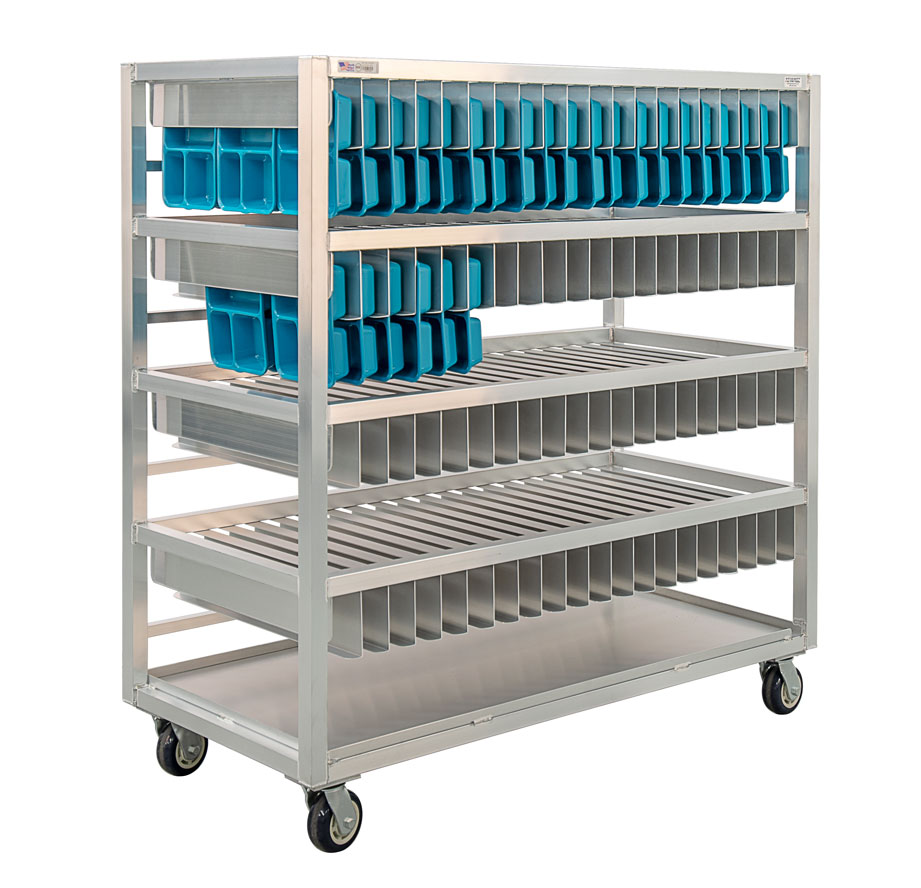

JZDRA-240H correctional tray drying rack shown from front

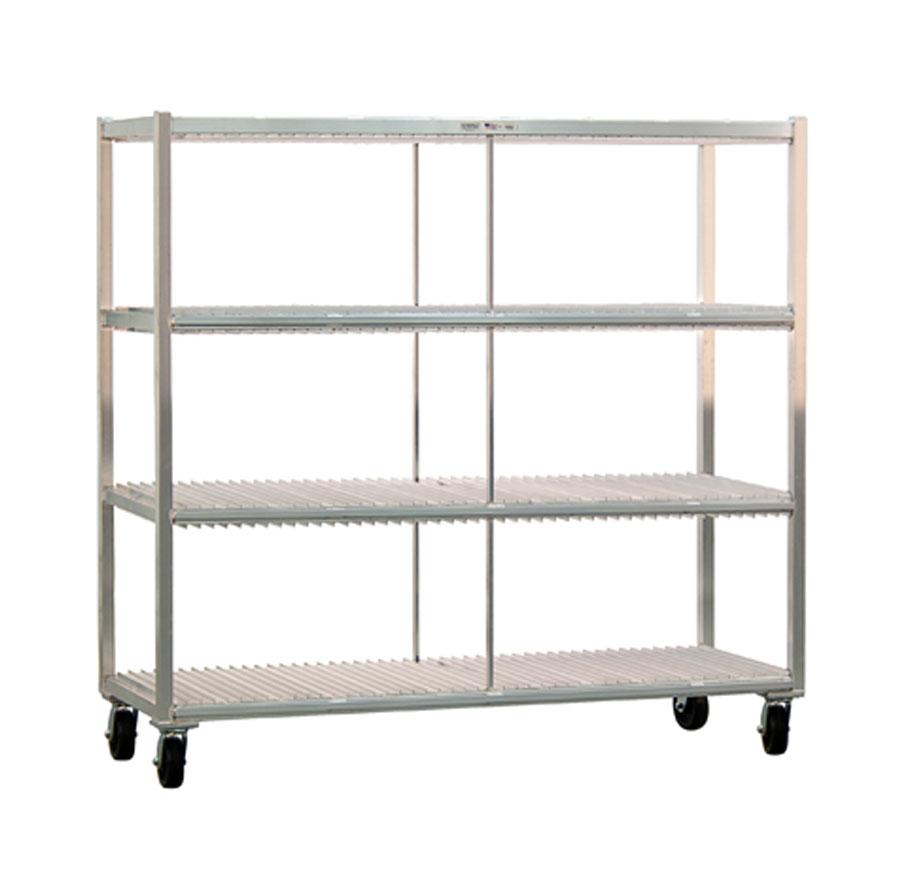

Large JonesZylon correctional drying rack shown from front
Black JZDRI-3 tray drying rack insert close-up

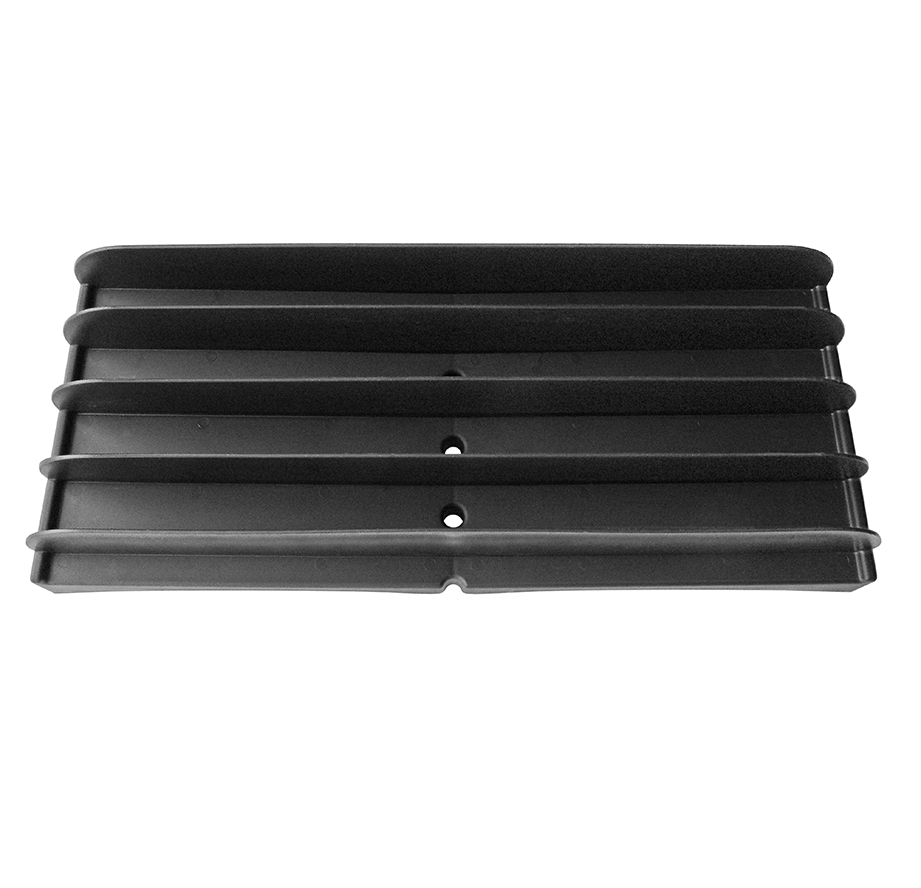

Black JZDRI-5 pan drying rack insert close-up

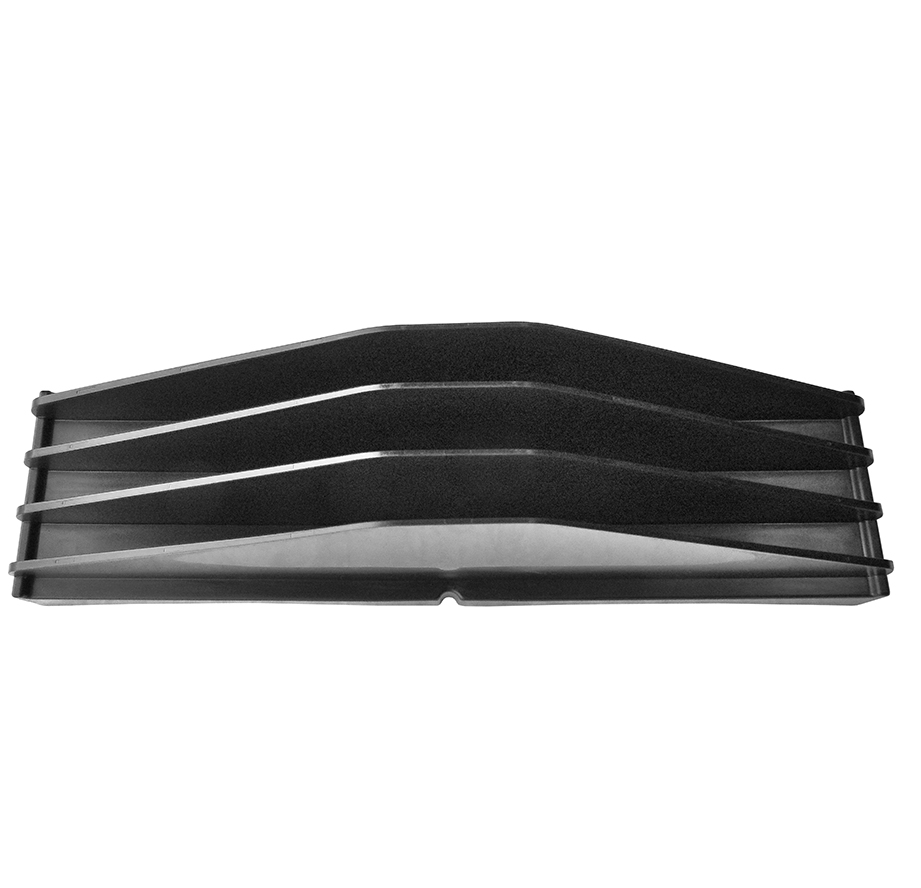

Black JZDRI-4 lid drying rack insert close-up

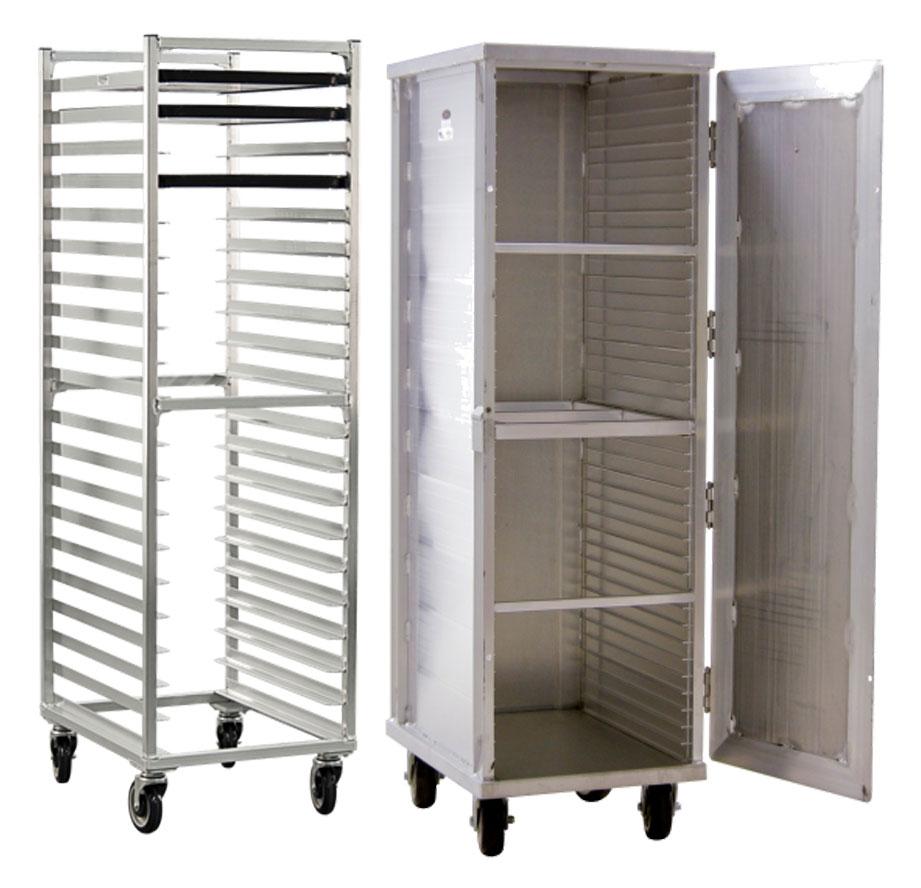

JonesZylon open bun pan rack beside an enclosed bun pan cabinet with its door open
Rack Planning & Pricing

Request Pricing on Drying & Pan Racks

Tell us what you need to dry, store, or transport and the approximate capacity required. We’ll help match the right drying rack, insert, or bun pan rack configuration to your facility.

  • Rack type. Drying racks, replacement inserts, open pan racks, or enclosed pan racks.
  • Capacity and fit. Tray or pan sizes, quantities, available space, and required shelf spacing.
  • Configuration. Casters, security features, accessories, and custom rack requirements.
Not sure which model fits? Share what you use now and how many trays or pans you need to handle.
Step 1 of 2
What type of facility are you purchasing for?
Your facility type helps us route the request and recommend the right equipment configuration.
Step 2 of 2
Tell us about your equipment needs
Share your contact information and the trays, pans, lids, or equipment you need to dry, store, or transport.
Include model numbers, tray or pan sizes, approximate quantities, and any space or security requirements you already know.
Something went wrong. Please try again or email solutions@joneszylon.com.
Your request has been received.
A JonesZylon representative will review your rack and capacity needs and follow up with pricing and recommended options.

The same rack is listed elsewhere as a commercial drying rack, a mobile pan rack or a sheet pan rack. The difference that matters is runner spacing and whether it holds trays or pans.

How can trays dry fully before they are stacked?

Load each tray, lid or pan in the matching insert after the approved wash step. Leave the spacing required by that configuration and release items to clean storage under the facility sanitation procedure.

How much drying space should the quote include?

Send a dish-room sketch with the discharge point, clean storage, door openings and rack parking locations. Include the path used to remove a loaded rack. Allow space for the operator and side loading beyond the rack footprint. Note thresholds and the place where staff park the rack while unloading. Specify brake requirements against the individual model row.

Ask the representative to demonstrate loading with your actual trays and lids. Have kitchen and security staff check access to removable components, account for inserts during cleaning, and inspect worn or damaged pieces under the facility equipment policy.

How should the drying rack enter the equipment count?

Record the rack model and insert type at the clean-side handoff. Count removable inserts during cleaning and report damaged slots or frame components before reloading. Have security staff review the quoted hardware and component access under the facility inspection procedure. Evaluate capacity separately from security requirements.

Where should sheet pans go after drying?

For pan storage and movement, review the dedicated open and enclosed bun pan rack specifications. For clean cafeteria trays at the serving line, review JZSCA-1 staging carts. Keep each equipment role in the kitchen layout and quote.

Frequently asked questions

Does JZDRA-92 hold only 92 trays?

No. The sheet lists 92 JZDRI-3 slots and a separate capacity of 184 SmartTrays. Use the tray-specific loading basis.

Can lids use the same insert as trays?

JZDRI-4 has 1.125-inch slots for lids and sheet pans. Identify the lid and rack before selecting the insert.

Is a drying time published for these racks?

No drying duration appears in the cited sheets. Base the cycle on the actual wash output, rack load and room conditions.
