Insulated Food Trays for Prisons & Jails

Shop Online

Engineered for performance, JonesZylon's insulated trays are designed to withstand the demanding conditions of correctional food service. Reinforced walls reduce cracking and prevent water intrusion. Pair them with our aluminum transport carts for a complete ambient meal delivery solution.

A proprietary sealing process and moisture-resistant foam help prevent waterlogging and bacterial buildup, extending tray life and maintaining sanitation.

Request a Quote Request Samples View Fact Sheet Cost Calculator

Buy direct, or order through US Foods & Direct Supply on your existing distributor agreement.

Quick answer

The PRTS-5000 insulated tray measures 14.38 x 11.25 x 2.06 inches and names PRTSL-5000 as its compatible lid. Its printed height with lid is 3.25 inches. Use those dimensions to check storage and delivery fit, then evaluate the loaded meal on your actual route under the facility’s food-handling procedure.

Reviewed . PRTS-5000 specification (PDF)

These are sometimes searched as heated serving trays or heated food trays. An insulated tray holds the temperature the food arrives at, it does not generate heat. For heat at the cart, see the heated and dual-temperature carts.

Item
Capacity
Product
Title
Product Number Material Compatible
Lid
Dimensions Colors Spec
Sheet
PRTS-4000 four compartment insulated tray in chocolate 4 compartment insulated tray capacity and portion layout diagram Four Compartment
Insulated Tray
PRTS-4000 Copolymer Polypropylene Tray bottom acts as lid when stacked 14.88 x 13.38 x 2.63 in
L × W × H
PRTS-4000 specification (PDF)

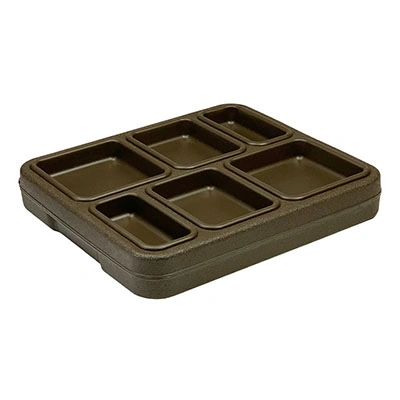

PRTS-5000 six compartment insulated tray in chocolate PRTS-5000 insulated tray capacity and dimensions diagram Six Compartment
Insulated Tray
PRTS-5000 Copolymer Polypropylene PRTSL-5000 14.38 x 11.25 x 2.06 in
L × W × H
PRTS-5000 specification (PDF)

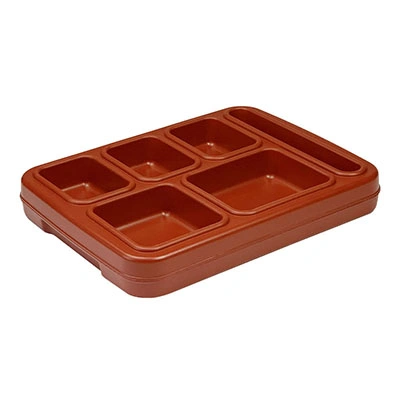

PRTS-6000 six compartment insulated tray in chocolate PRTS-6000 insulated tray capacity and dimensions diagram Six Compartment
Insulated Tray
PRTS-6000 Copolymer Polypropylene PRTSL-6000 15.38 x 13.75 x 2.5 in
L × W × H
PRTS-6000 specification (PDF)
JonesZylon aluminum economy transport cart for correctional facilities

Pair with Economy Aluminum Transport Carts

Have staff load the selected insulated tray and lid into the transport cart. Check assembled height and shelf clearance, then record handling and food temperatures along the route.

View Transport Carts

Choosing an insulated tray for your delivery route

Evaluate the insulated tray with its lid through meal assembly, delivery and return. Record loaded dimensions, handoff delays, food temperatures and the time needed for washing and drying. Choose the tray and transport arrangement from the recorded trial results.

Get Pricing on Insulated Trays for Your Facility

Tell us your tray configuration, facility type, and volume needs. We'll provide pricing and recommendations for insulated trays built to perform in correctional environments.

Step 1 of 3
What type of facility are you with?
Select the option that best describes your facility.
Federal BOP
State DOC
Jail / Metro
Private Corrections
Corrections Distributor
Other
Step 2 of 3
How can we help?
Choose the option that fits what you're looking for.
Request a Quote
Request Dinnerware Samples
Contact Sales Team
Book a Free Consultation
Step 3 of 3
Tell us about yourself
 ·
Something went wrong. Please try again or email us at solutions@joneszylon.com.
Step 3 of 4
Which samples are you interested in?
Select one to continue. Each kit includes a tumbler, mug, utensil set, segmented tray, and SmartTray.
MaxFlex dinnerware sample set with tray, cup, and utensils
MaxFlex Flexible Safety Dinnerware
Flexes rather than breaks. Can't be sharpened or fractured into a weapon.
JonesZylon copolymer dinnerware sample set with tray, cup, and utensils
Copolymer Dinnerware
Durable, dishwasher-safe reusable dinnerware.
MaxFlex and copolymer dinnerware sample sets shown together
Send Me Both
Sample both lines side by side.
Special request? Use the message field on the next page to request specific items.
Step 4 of 4
Where should we ship your samples?
 ·  samples
We'll ship your samples to the address below at no charge.
Something went wrong. Please try again or email us at solutions@joneszylon.com.
Step 3 of 3
Tell us a little about yourself
We'll come prepared to actually help.
 ·  Free Consultation
Your info is saved. Go ahead and pick your time.
Book Your Time
Thank you for reaching out.

Insulated tray and lid specifications

Dimensions, portions and closure pairings from the linked model sheets. Each listed sheet prints a copolymer polypropylene shell with polyurethane foam insulation.
ModelPrinted specificationsSource
PRTS-40004 compartments; 14.88 x 13.38 x 2.63 in (L × W × H).
12 trays per case.
Large 14 oz & 14 oz; Small 7 oz & 7 oz.
Printed temperature range -40 to 190 °F.
COMPATIBLE LID: Bottom of tray operated as lid when stacked.
PRTS-4000.pdf
PRTS-50006 compartments; 14.38 x 11.25 x 2.06 in (L × W × H).
12 trays per case.

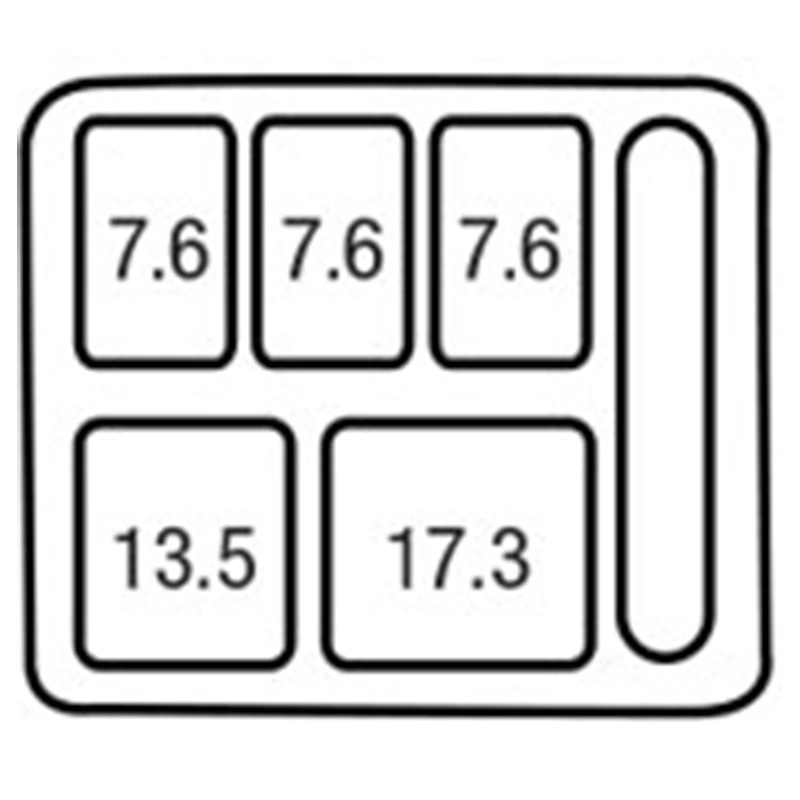

Large 17.3 oz; Medium 13.5 oz; Small 7.6 oz & 7.6 oz; Flatware 7 oz.
Printed temperature range -40 to 190 °F.
COMPATIBLE LID: PRTSL-5000.
PRTS-5000.pdf
PRTS-60006 compartments; 15.38 x 13.75 x 2.5 in (L × W × H).
12 trays per case.

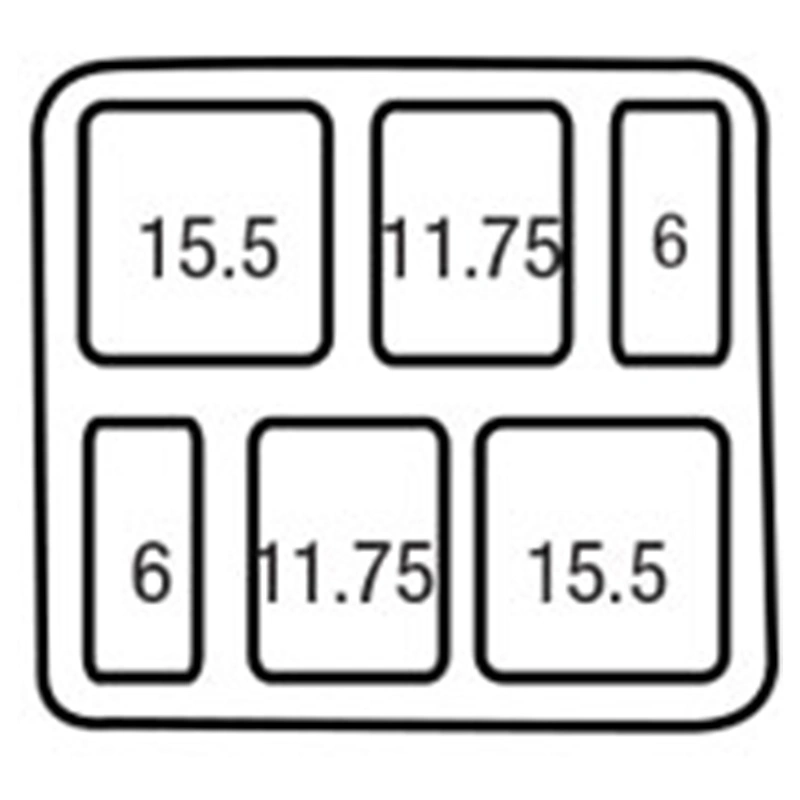

Large 15.5 oz & 15.5 oz; Medium 11.75 oz & 11.75 oz; Small 6.3 oz & 6.3 oz.
Printed temperature range -40 to 190 °F.
COMPATIBLE LID: PRTSL-6000.
PRTS-6000.pdf
PRTSL-5000Lid; 14.38 x 11.25 x 1.38 in (L × W × H).
12 lids per case.
Printed temperature range -40 to 190 °F.
COMPATIBLE TRAY: PRTS-5000.
PRTSL-5000.pdf
PRTSL-6000Lid; 15.38 x 13.75 x 1.69 in (L × W × H).
12 per case (printed '12 trays per case').
Printed temperature range -40 to 190 °F.
COMPATIBLE TRAY: PRTS-6000.
PRTSL-6000.pdf
PRTSL-5000 insulated tray lid in chocolate, top surface
PRTSL-5000, the lid the PRTS-5000 sheet names.
PRTSL-6000 insulated tray lid in chocolate, top surface
PRTSL-6000, the lid the PRTS-6000 sheet names.
Brick insulated tray holding a sandwich, salad, chips, vegetables and dessert
A PRTS-5000 loaded with a full meal and flatware.
Cutaway of an insulated tray corner showing the shell and foam filled wall
Cutaway of an insulated tray wall. The sheets print a copolymer polypropylene shell with polyurethane foam insulation, and the PRTS-5000 sheet prints “Economate® foam system completely fills internal space for maximum temperature retention.”

Insulated meal trays carry a 12-month warranty from the date of purchase against defects in material or workmanship, and a confirmed defect is corrected with free replacement trays equal to the number established to be defective. See the full warranty terms.

How do insulated trays close during delivery?

The PRTS-4000 sheet describes the tray bottom acting as a lid when trays are stacked and identifies bi-directional stacking. The PRTS-5000 sheet names PRTSL-5000, and PRTS-6000 names PRTSL-6000. Both tray sheets describe stacking with or without lids. Check the exact closure arrangement used for individual meals and for the top of a stack.

Brick insulated meal trays stacked with lids for transport
Insulated meal trays stacked for a route. Both tray sheets describe stacking with or without lids.

PRTS-5000 prints a height with lid of 3.25 inches; PRTS-6000 prints 4 inches. Use the assembled dimensions during the cart trial. Keep the lid inventory separate from the tray count so a missing closure is recorded before loading starts.

How long will an insulated tray hold a meal?

The linked sheets print a material temperature range of -40 to 190 °F, but they do not provide a meal holding duration. Test the loaded tray on the actual route. Record food temperatures at assembly and the final handoff, along with the tray model, lid arrangement, menu and any routine delay.

How should insulated trays be cleaned and inspected?

All five linked PRTS tray and lid sheets state dishwasher suitability. Use the approved wash, rinse, sanitize and drying procedure for the selected product. Check compartments, edges and mating surfaces for retained food before returning trays to clean storage.

Have staff record cracks, edge changes, closure problems and other changes they find during handling. Separate affected pieces for review under the facility procedure. Use the facility’s observed replacement counts when planning purchases. The source sheets do not provide an annual replacement rate.

How to test an insulated tray through a meal service

  1. Load the planned meal, seat the documented closure and measure the complete assembly.
  2. Place it in the actual transport cart and record food temperatures at the points required by the facility’s process.
  3. At return, count trays and lids separately and set aside pieces with closure or edge damage.
  4. Run the approved wash cycle, inspect the mating surfaces and confirm that each piece dries before stacking.

How many insulated trays should a facility order?

Keep insulated tray bodies and lids on separate inventory lines. Use the dinnerware inventory method to count overlapping services, set reserves and convert pieces to cases.

Count complete insulated meals in the tested cart and lid arrangement. Use that capacity in the cart-load and trip calculation.

Frequently asked questions

Which lid fits PRTS-5000?

PRTSL-5000 is the lid named on the PRTS-5000 sheet.

Which lid fits PRTS-6000?

PRTSL-6000 is the lid named on the PRTS-6000 sheet.

How does PRTS-4000 close?

Its sheet describes the bottom of the tray acting as a lid when trays are stacked.

What temperature range is printed for PRTS trays?

Across the linked PRTS sheets, the printed range is -40 to 190 °F. This does not establish a meal holding duration.

Are these insulated trays dishwasher safe?

The linked PRTS tray and lid sheets state dishwasher suitability. Use the approved care procedure for the selected model.

How should replacement quantities be budgeted?

Use the facility’s recorded loss, damage and wash-turnaround counts. The source sheets do not establish an annual replacement rate.

Request a Quote Request Free Samples

Sources

JonesZylon model specification sheets, reviewed from local copies September 8, 2026. Values above are printed manufacturer specifications.
