JonesZylon's MaxFlex compartmentalized trays are engineered specifically for prisons and jails, featuring an exclusive polymer blend that significantly hinders weapons making while delivering exceptional durability against breakage and chipping. Available in 3- to 7-compartment configurations, these trays are ideal for high-security environments where flexibility and impact resistance matter most. Reusable and recyclable, they are dishwasher safe and withstand temperatures ranging from -40°F to 225°F.

Request Free Samples Request a Quote

Which temperature limit applies to this model?

JonesZylon rates every MaxFlex tray at -40 to 225 °F, including SMARTB-5 and SMARTB-5-XD.

MaxFlex flexible tray selection

Evaluate the MaxFlex tray and lid with your security and food service teams. The FXSTB-28 sheet describes a proprietary polymer formulation and a six-compartment deep tray. FXSTB-28 specification (PDF).

Compare prison and jail food trays by material and layout.

Stacking Trays

Item
Capacity
Product
Title
Product ID Material Compatible
Lid
Dimensions Colors Spec
Sheet

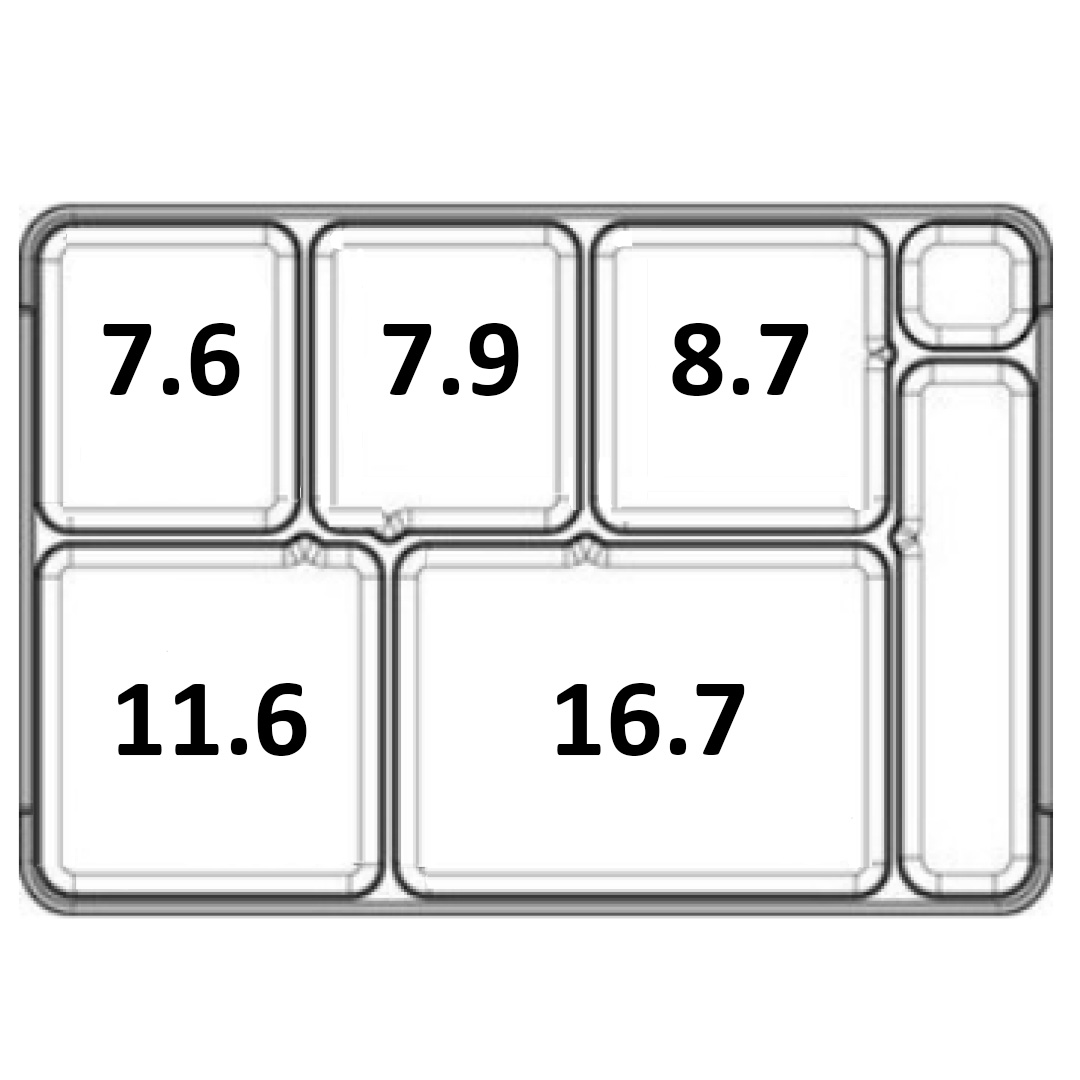

MaxFlex SmartTray SMARTB-5 five compartment stacking tray in teal 5-compartment MaxFlex SmartTray capacity and layout diagram for prison meal service MaxFlex SmartTray SMARTB-5 MaxFlex Tray and lid records Length: 13.4"
Width: 9.25"
Height: 1.9"
SMARTB-5 specification (PDF)

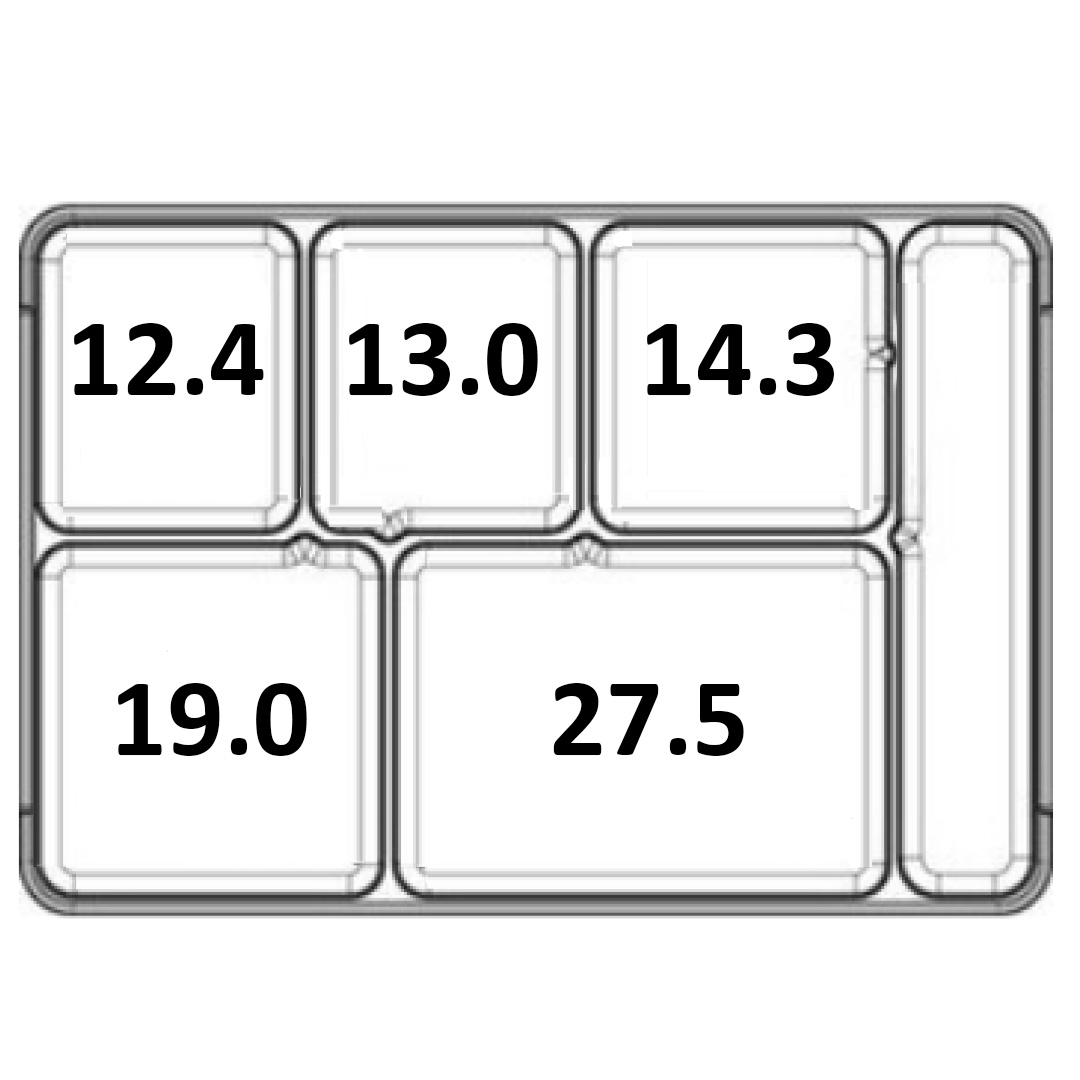

MaxFlex SMARTB-5-XD extra deep SmartTray in royal extra deep MaxFlex SmartTray capacity diagram showing compartment layout and dimensions MaxFlex Extra Deep SmartTray SMARTB-5-XD MaxFlex Tray and lid records Length: 13.4"
Width: 9.25"
Height: 2.6"
SMARTB-5-XD specification (PDF)

Segregation Trays

Item
Capacity
Product
Title
Product ID Material Compatible
Lid
Dimensions Colors Spec
Sheet

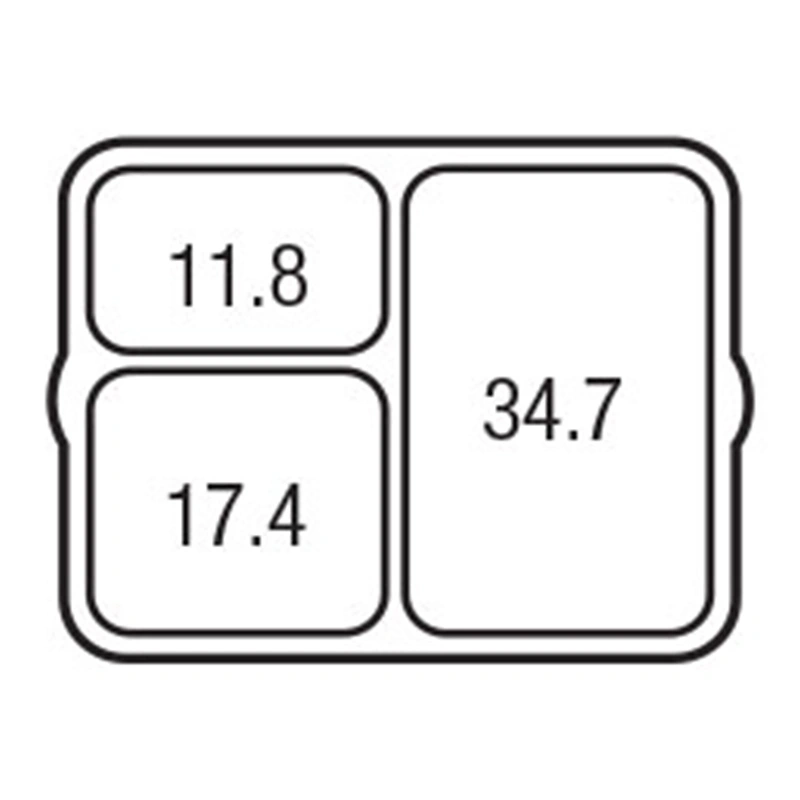

MaxFlex three compartment large segregation tray FXSTB-9300 in orange 3-compartment large prison tray capacity diagram Three Compartment
Large Tray
FXSTB-9300 MaxFlex FXLB-9 Length: 10.50"
Width: 8.50"
Height: 2.13"
FXSTB-9300 specification (PDF)

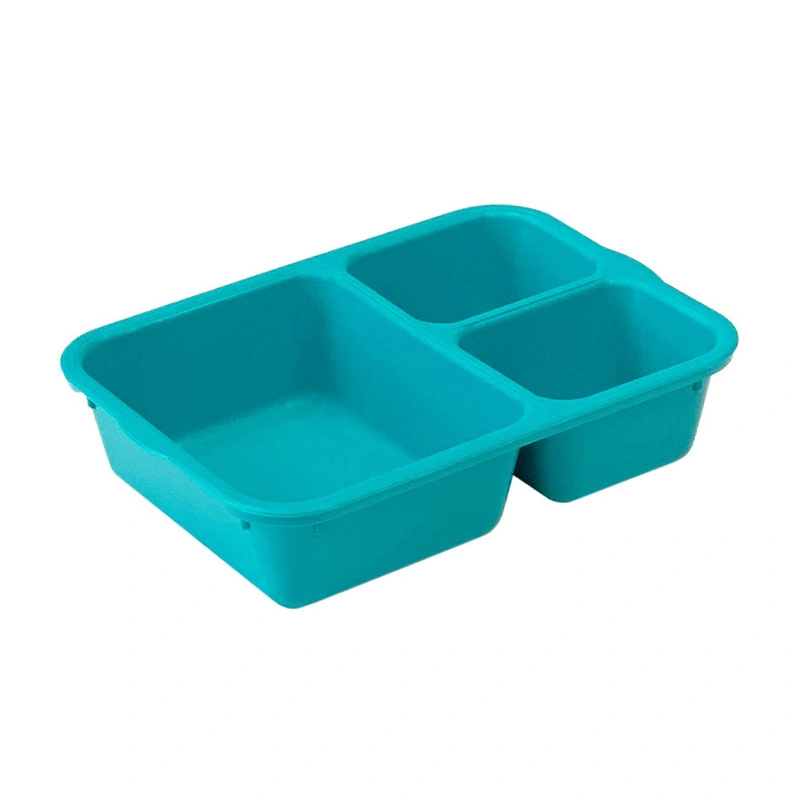

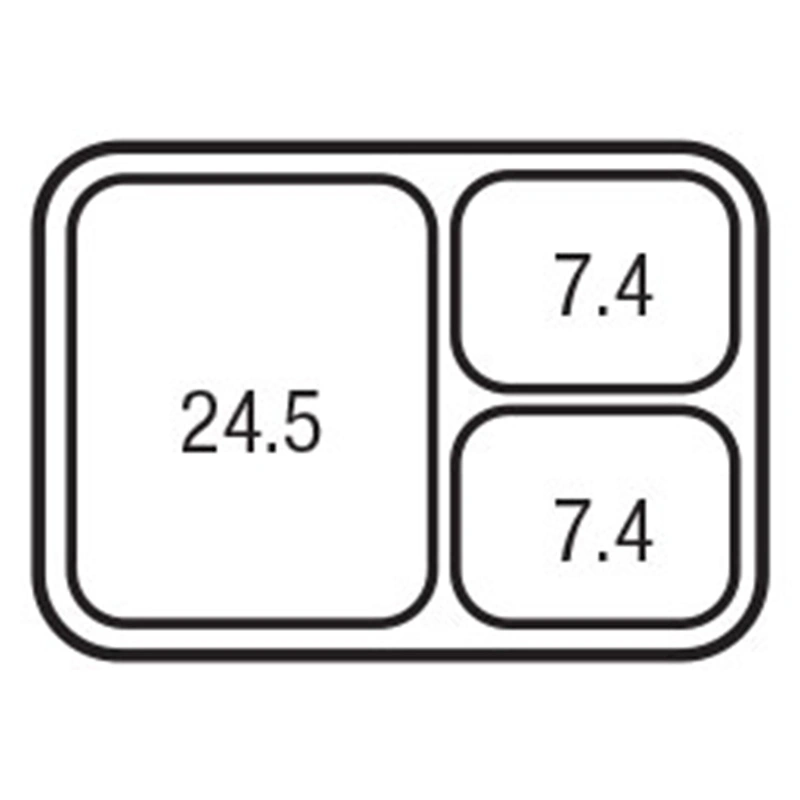

MaxFlex three compartment medium segregation tray FXSTB-5300 in teal 3-compartment medium prison tray capacity diagram Three Compartment
Medium Tray
FXSTB-5300 MaxFlex Confirm tray/lid pair Length: 9.13"
Width: 6.38"
Height: 2.25"
FXSTB-5300 specification (PDF)

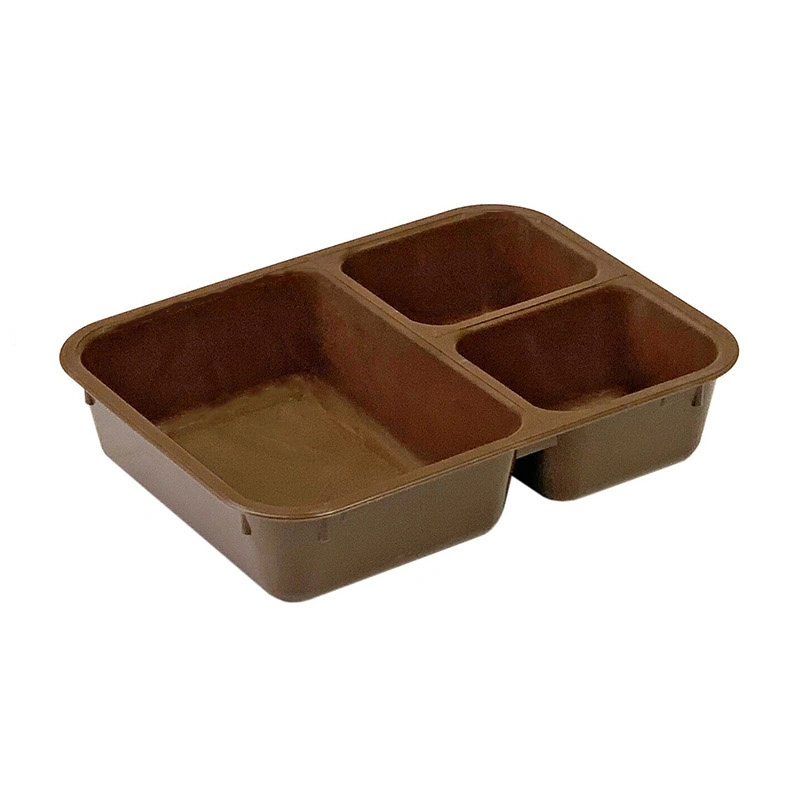

MaxFlex three compartment small segregation tray FXSTB-4300 in teal 3 compartment small MaxFlex tray capacity diagram showing portion layout for correctional meal service Three Compartment
Small Tray
FXSTB-4300 MaxFlex Confirm tray/lid pair Length: 8.38"
Width: 6.38"
Height: 1.88"
FXSTB-4300 specification (PDF)

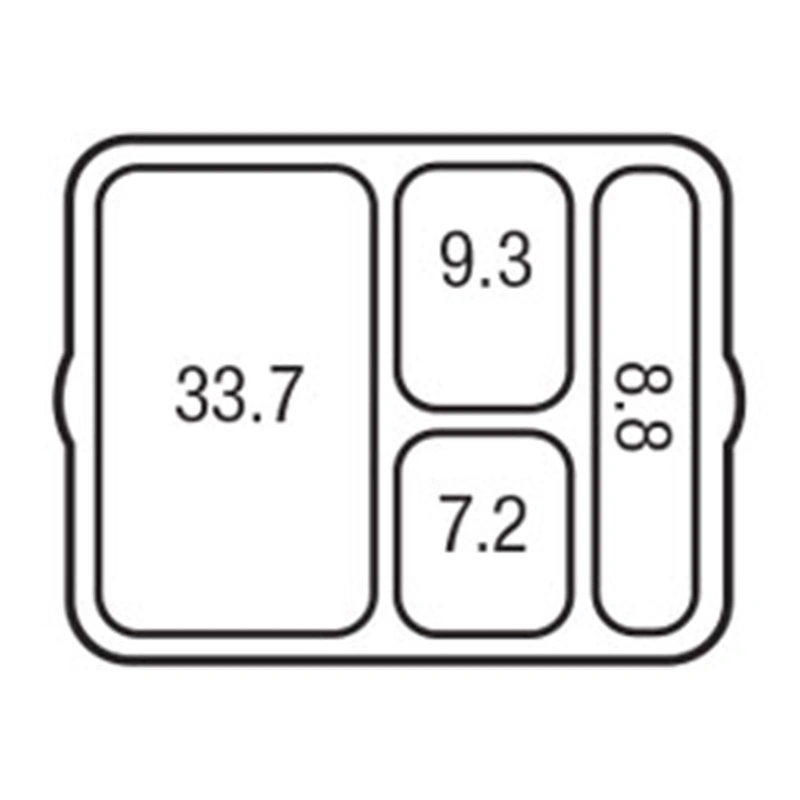

MaxFlex four compartment large segregation tray FXSTB-9400 in orange 4-compartment prison tray capacity diagram showing portion layout Four Compartment
Large Tray
FXSTB-9400 MaxFlex Confirm tray/lid pair Length: 10.50"
Width: 8.50"
Height: 2.13"
FXSTB-9400 specification (PDF)

Mainline Trays

Item
Capacity
Product
Title
Product ID Material Compatible
Lid
Dimensions Colors Spec
Sheet

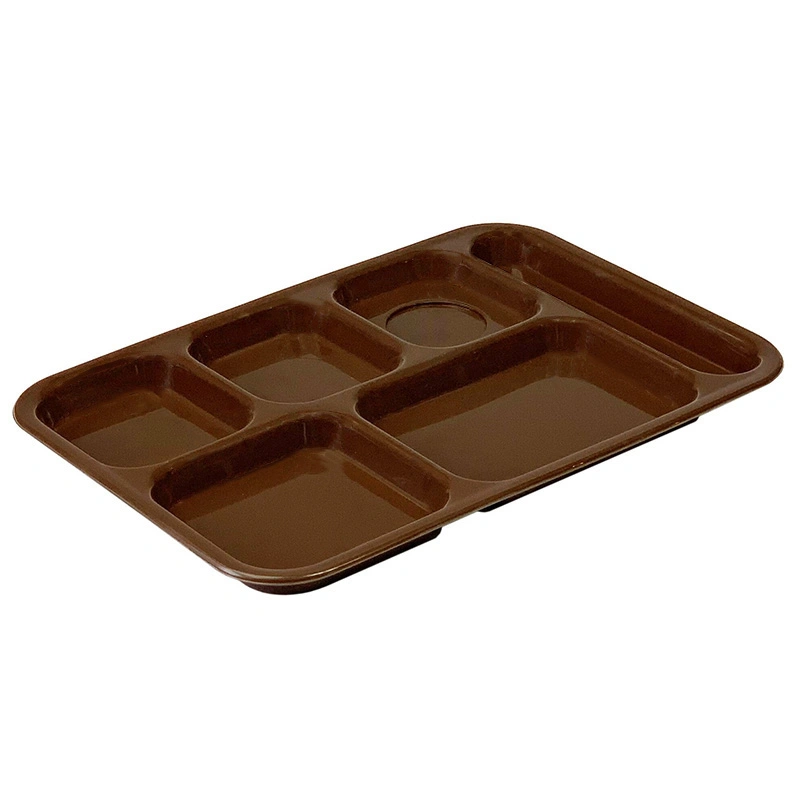

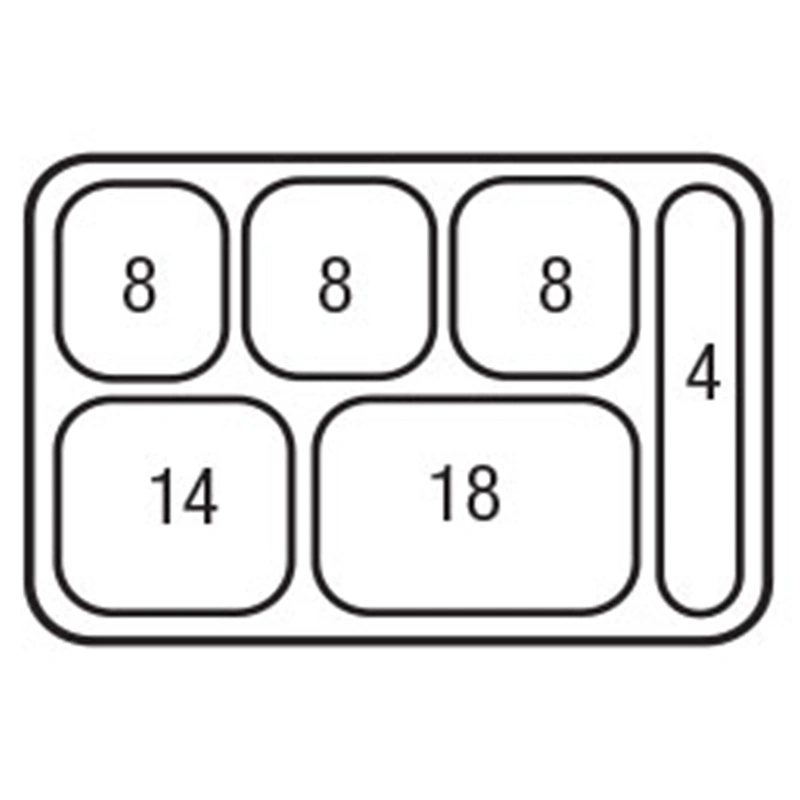

MaxFlex six compartment deep mainline tray FXSTB-28 in teal 6-compartment deep prison tray capacity diagram showing portion layout Six Compartment
Deep Tray
FXSTB-28 MaxFlex FXLB-28 Length: 14.25"
Width: 9.88"
Height: 1.5"
FXSTB-28 specification (PDF)

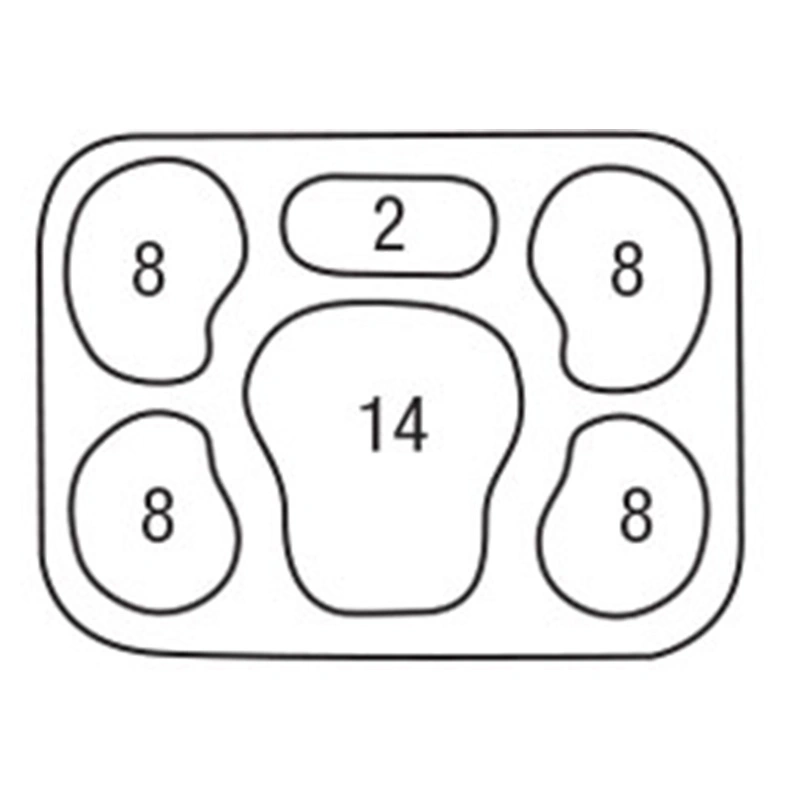

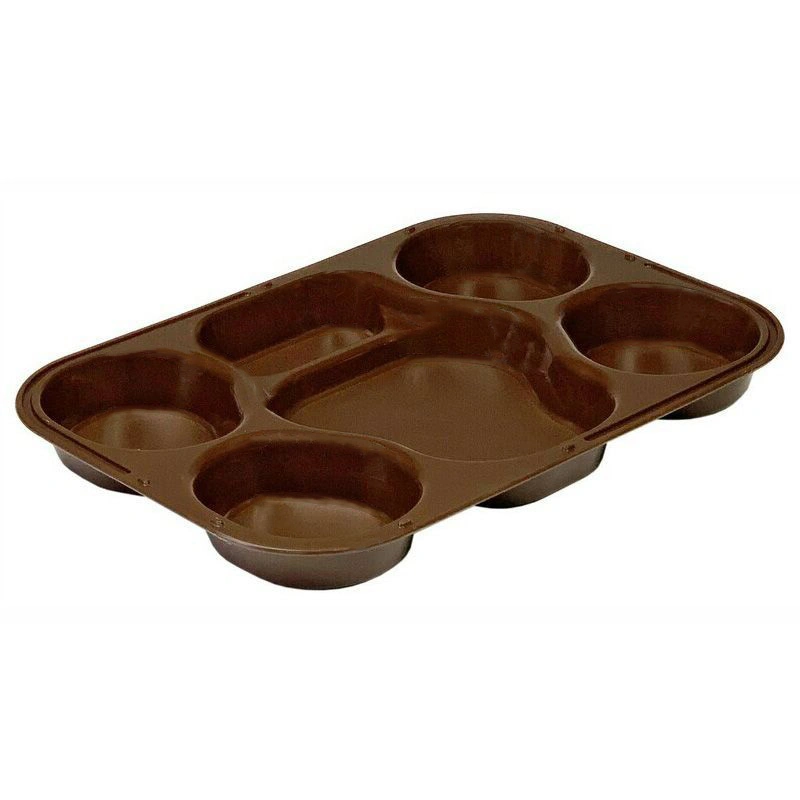

MaxFlex FXSTC-200 six-compartment tray 6-compartment super stack prison tray capacity diagram Six Compartment
Super Stack Tray
FXSTC-200 MaxFlex Tray also functions as lid Length: 14.88"
Width: 9.50"
Height: 1.38"
FXSTC-200 specification (PDF)

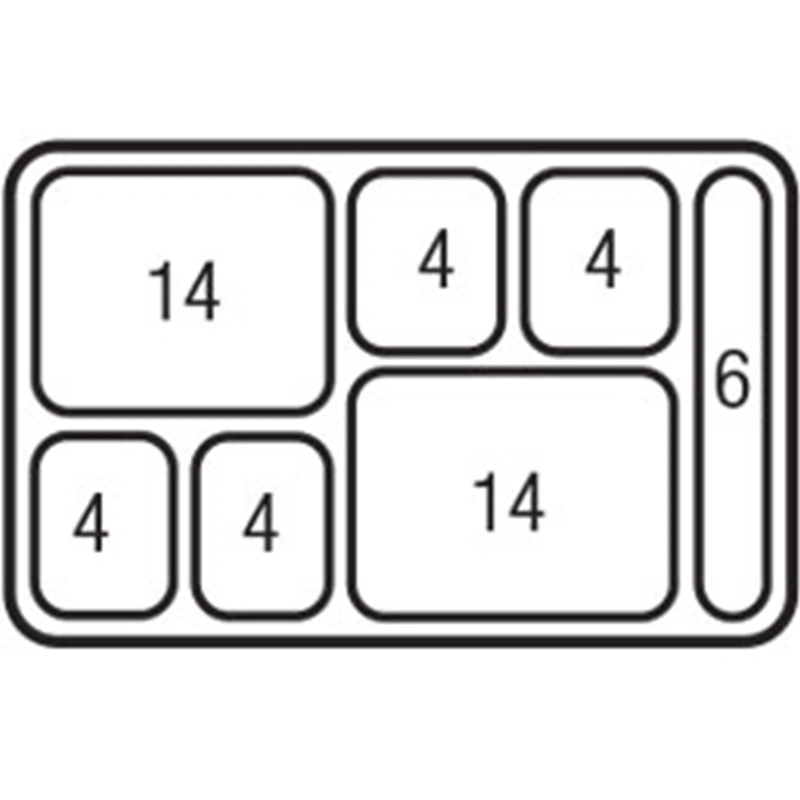

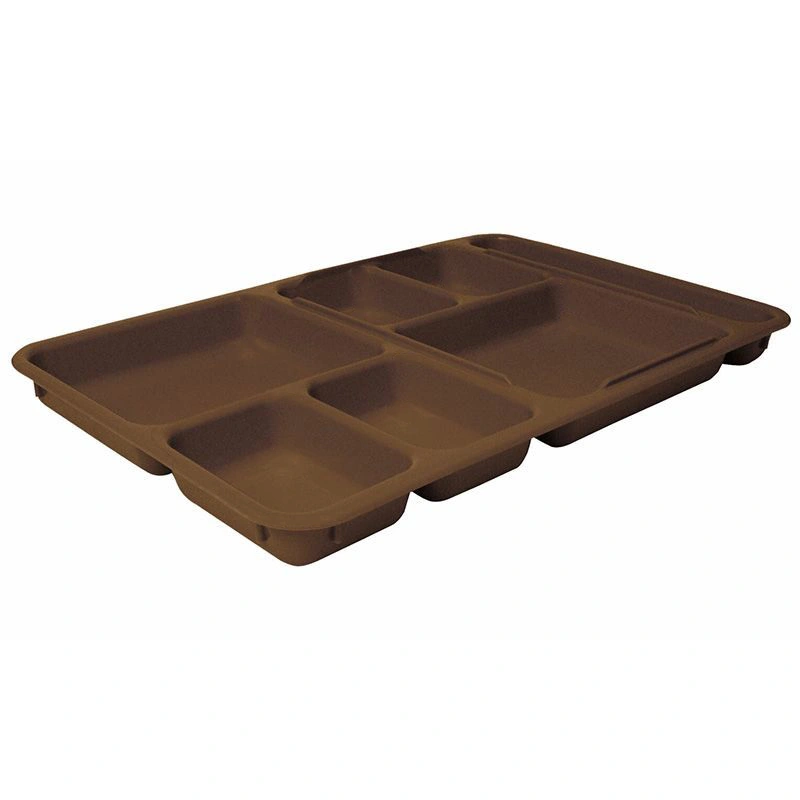

MaxFlex FXSTB-1570 seven-compartment tray in buff 7-compartment prison tray capacity diagram showing portion layout Seven Compartment
Base Tray
FXSTB-1570 MaxFlex Not listed on sheet Length: 15"
Width: 9.63"
Height: 1.5"
FXSTB-1570 specification (PDF)

Find the Right MaxFlex Tray

Tell us your tray style, quantities, and preferred colors. We’ll help with pricing, samples, and the best fit for your facility.

Step 1 of 3
What type of facility are you with?
Select the option that best describes your facility.
Federal BOP
State DOC
Jail / Metro
Private Corrections
Corrections Distributor
Other
Step 2 of 3
How can we help?
Choose the option that fits what you're looking for.
Request a Quote
Request Dinnerware Samples
Contact Sales Team
Book a Free Consultation
Step 3 of 3
Tell us about yourself
 ·
Something went wrong. Please try again or email us at solutions@joneszylon.com.
Step 3 of 4
Which samples are you interested in?
Select one to continue. Each kit includes a tumbler, mug, utensil set, segmented tray, and SmartTray.
MaxFlex dinnerware sample set with tray, cup, and utensils
MaxFlex Flexible Safety Dinnerware
Flexes rather than breaks. Can't be sharpened or fractured into a weapon.
JonesZylon copolymer dinnerware sample set with tray, cup, and utensils
Copolymer Dinnerware
Durable, dishwasher-safe reusable dinnerware.
MaxFlex and copolymer dinnerware sample sets shown together
Send Me Both
Sample both lines side by side.
Special request? Use the message field on the next page to request specific items.
Step 4 of 4
Where should we ship your samples?
 ·  samples
We'll ship your samples to the address below at no charge.
Something went wrong. Please try again or email us at solutions@joneszylon.com.
Step 3 of 3
Tell us a little about yourself
We'll come prepared to actually help.
 ·  Free Consultation
Your info is saved. Go ahead and pick your time.
Book Your Time
Thank you for reaching out.

Choose a MaxFlex flexible correctional tray by compartment layout, loaded handling and the exact tray and lid identifiers. Compare FXSTB-14 and FXSTB-67 with the other mainline models below.

MaxFlex flexible correctional tray dimensions and portions

Dimensions, portions and lid details from the linked MaxFlex model sheets
ModelPrinted specificationsSource
FXSTB-146 compartments; 14.25 x 9.88 x 1 in (L × W × H).
24 trays per case.
Entree 4.5x6.25 in 9 oz; Bread 4.63x4.63 in 6 oz; Three small 4x3.5 in 4 oz; Flatware 8.5x1.63 in 4 oz.
Printed temperature range -40 to 225 °F.
COMPATIBLE LID: No lid.
FXSTB-14.pdf
FXSTB-286 compartments; 14.25 x 9.88 x 1.5 in (L × W × H).
24 trays per case.
Entree 4.5x6.25 in 18 oz; Bread 4.63x4.63 in 14 oz; Three small 4x3.5 in 8 oz; Flatware 8.5x1.75 in 8.8 oz.
Printed temperature range -40 to 225 °F.
COMPATIBLE LID: FXLB-28 (See lid spec sheet).
FXSTB-28.pdf
FXSTB-15707 compartments; 15 x 9.63 x 1.5 in (L × W × H).
24 trays per case.
Large 16.6 oz & 15.4 oz; Medium 5.5 oz, 5.5 oz, 5 oz & 5 oz; Flatware 8 oz.
Printed temperature range -40 to 225 °F.
Lid compatibility not printed.
FXSTB-1570.pdf
FXSTB-677 compartments; 17.75 x 11.75 x 1.5 in (L × W × H).
24 trays per case.
Entree 29 oz; large 24 oz; round 12 oz; small 8 oz and 8 oz. Drink-slot capacities omitted because the sheet is truncated.
Printed temperature range -40 to 225 °F.
Lid compatibility not printed.
Sheet model FXSTB-67 is in the file named FXST-67.pdf.
FXST-67.pdf
FXSTC-2006 compartments; 14.88 x 9.50 x 1.38 in (L × W × H).
24 trays per case.
Entree 14 oz; Four medium 8 oz; Small 2 oz.
Printed temperature range -40 to 225 °F.
COMPATIBLE LID: Tray also functions as lid.
FXSTC-200.pdf
FXLB-28Lid; 14.38 x 10.00 x 1.38 in (L × W × H).
24 lids per case.
Printed temperature range -40 to 225 °F.
COMPATIBLE TRAY: FXSTB-28.
FXLB-28.pdf
MaxFlex FXLB-28 domed lid for the FXSTB-28 deep tray
FXLB-28, the MaxFlex lid the FXSTB-28 sheet names as its compatible lid. Lids are quoted as separate line items.

JonesZylon dinnerware carries a 12-month warranty from the date of purchase against defects in material or workmanship. Dinnerware determined to be defective due to improper material or workmanship, at the sole discretion of JonesZylon, will be replaced at no charge. See the full warranty terms.

What does the MaxFlex specification say about safety?

JonesZylon’s safety wording for FXSTB-14 and FXSTB-67 is “Maximum safety - cannot be fashioned into a weapon,” flexural modulus < 50,000 psi and Shore D hardness > 40. Their printed temperature range is -40 to 225 °F. The file named FXST-67.pdf identifies the model inside as FXSTB-67; use that printed identifier on the quote.

Hands bending a chocolate MaxFlex SmartTray SMARTB-5
MaxFlex SmartTray (SMARTB-5) bent by hand. The SMARTB-5 sheet carries JonesZylon’s safety wording, “Maximum Safety - cannot be fashioned into a weapon by melting and sharpening.”
Hands bending a chocolate MaxFlex three compartment tray FXSTB-9300
MaxFlex 3-Compartment Tray (FXSTB-9300) bent by hand. The FXSTB-9300 sheet carries JonesZylon’s safety wording, “Maximum safety - cannot be fashioned into a weapon by melting and sharpening.”
Hands bending a chocolate MaxFlex six compartment deep tray FXSTB-28
MaxFlex 6-Compartment Deep Tray (FXSTB-28) bent by hand. The FXSTB-28 sheet carries JonesZylon’s safety wording, “Maximum safety - cannot be fashioned into a weapon.”
Hands bending a translucent MaxFlex lid FXLB-28
MaxFlex lid (FXLB-28) bent by hand. The FXLB-28 sheet carries JonesZylon’s safety wording, “Maximum safety - cannot be fashioned into a weapon.”

SMARTB-5 and SMARTB-5-XD are rated -40 to 225 °F like the rest of the MaxFlex line, and their detailed specifications are on the SmartTray page. The same rating applies to the FXST-18 dietary tray.

How do six- and seven-compartment trays change service?

Map the menu to the named compartments. FXSTB-14 prints a 9 oz entree space, FXSTB-28 prints 18 oz, and FXSTB-1570 provides two large and four medium food spaces plus flatware. FXSTB-67 includes entree, large, round and small food spaces with drink locations. Load a sample using the table’s printed portions, including the planned utensil, bread, condiment and drink locations, then check carrying and serving comfort.

How to test a flexible meal tray through a meal service

  1. Load the largest planned portions and seat the documented lid, if the model has one.
  2. Check compartment separation, loaded grip and food movement through the actual cart route.
  3. Count trays and lids separately at return, then inspect both after the approved wash and drying process.

How many flexible trays should a facility order?

Count trays in service, returning, washing and drying at peak overlap. Add the facility reserve. Record lids separately and use each model’s case pack for the quote. For route planning, divide meals by the tested complete-meal cart load and round up to whole trips. Include return trips and restricted access periods.

Frequently asked questions

Where can I find FXSTB-14 and FXSTB-67 specifications?

FXSTB-14 and FXSTB-67 have linked sheets and individual specification rows.

Does FXSTB-14 have a lid?

The FXSTB-14 sheet states “No lid.”

Where is the FXSTB-67 sheet?

The file is named FXST-67.pdf. Its printed model identifier is FXSTB-67.

Is every MaxFlex tray rated to 225 °F?

Yes. JonesZylon rates every MaxFlex tray at -40 to 225 °F, including SMARTB-5, SMARTB-5-XD and FXST-18.

Where are segregation tray lid details?

Use the segregation tray page to review model dimensions, lid records and unresolved pairings before a loaded fit trial.

What should staff check during the sample trial?

Check the menu layout, loaded grip, cart clearance, handoff, return count and the full wash and drying process.
