JonesZylon transport carts are designed to efficiently move insulated trays, drinks, and other supplies securely from kitchen to in-cell feeding areas. Available in open and enclosed models, our carts feature corrections-grade construction, superior durability, and enhanced food temperature retention.
Need assistance selecting the right cart? Your JonesZylon representative is ready to customize a solution tailored to your facility's needs.
Open Tray Transport Carts Enclosed Tray Transport Carts Staging & Beverage Carts Contact UsTransport insulated trays on the lower shelf and drinks or miscellaneous items on top, moving efficiently from kitchen to in-cell feeding areas.
Tray counts are alternative loads, not combined. Where the spec sheet lists a with-lid count, use it if your trays travel lidded.
| Image | Item | Model | Dimensions | Capacity (JonesZylon Tray Types) | Spec Sheet |
|---|---|---|---|---|---|
![]() |

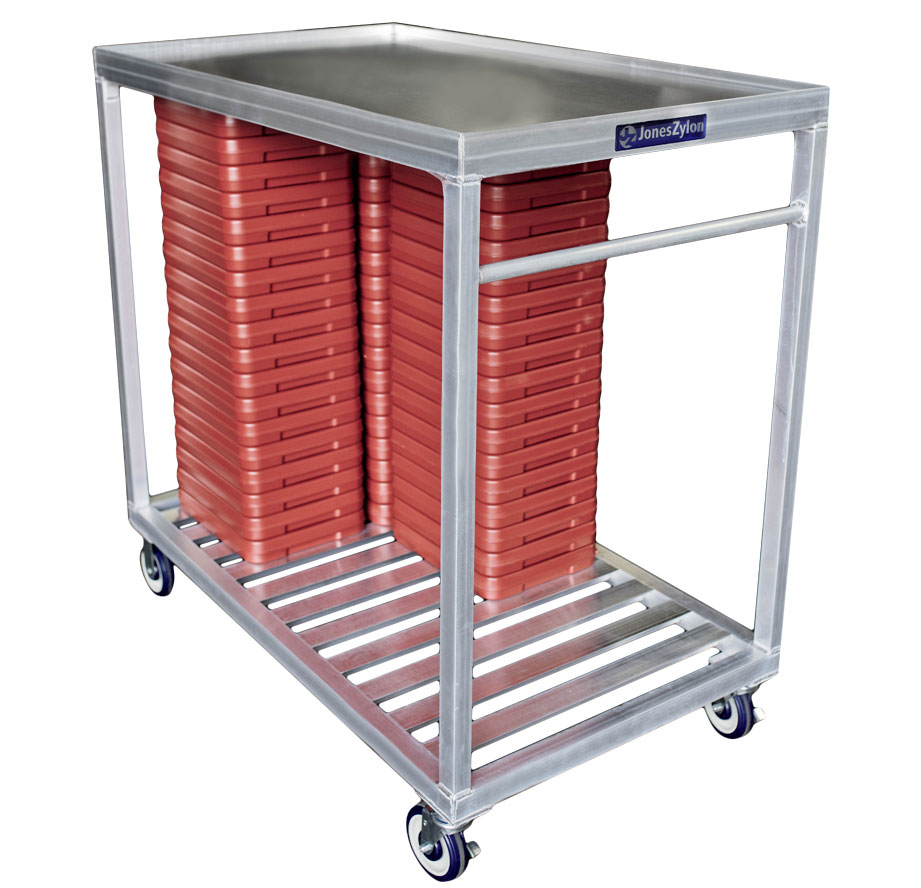

Medium, Open Tray Transport Cart | TC-49E | Height: 47" / Width: 49" / Depth: 28" | 84 PRTS-4000 trays 119 PRTS-5000 trays 90 PRTS-6000 trays |
Request Spec Sheet |
![]() |
Medium, Heavy Duty, Open Tray Transport Cart | TC-49A | Height: 47" / Width: 28" / Depth: 40" | 84 PRTS-4000 trays 119 PRTS-5000 trays (77 with lids) 90 PRTS-6000 trays (54 with lids) |
Spec Sheet |
![]() |

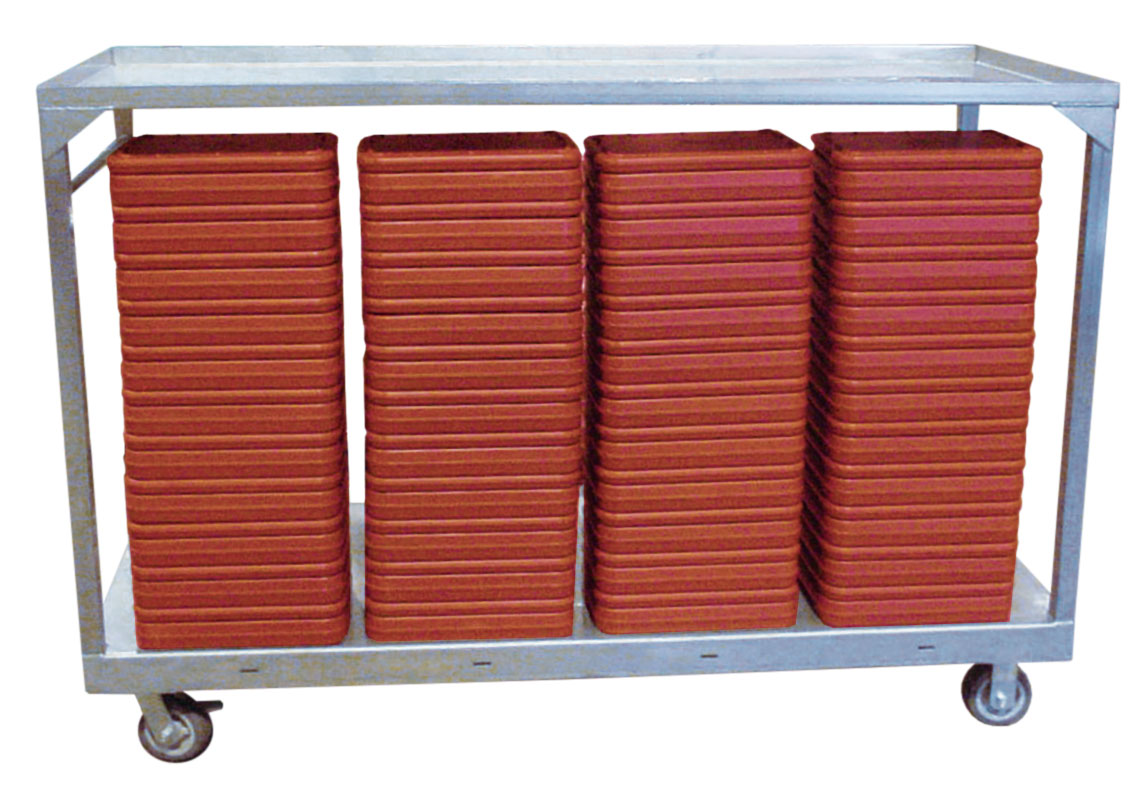

Large, Heavy Duty, Open Tray Transport Cart | TC-69A | Height: 47" / Width: 28" / Depth: 69" | 112 PRTS-4000 trays 153 PRTS-5000 trays 120 PRTS-6000 trays |
Spec Sheet |
![]() |

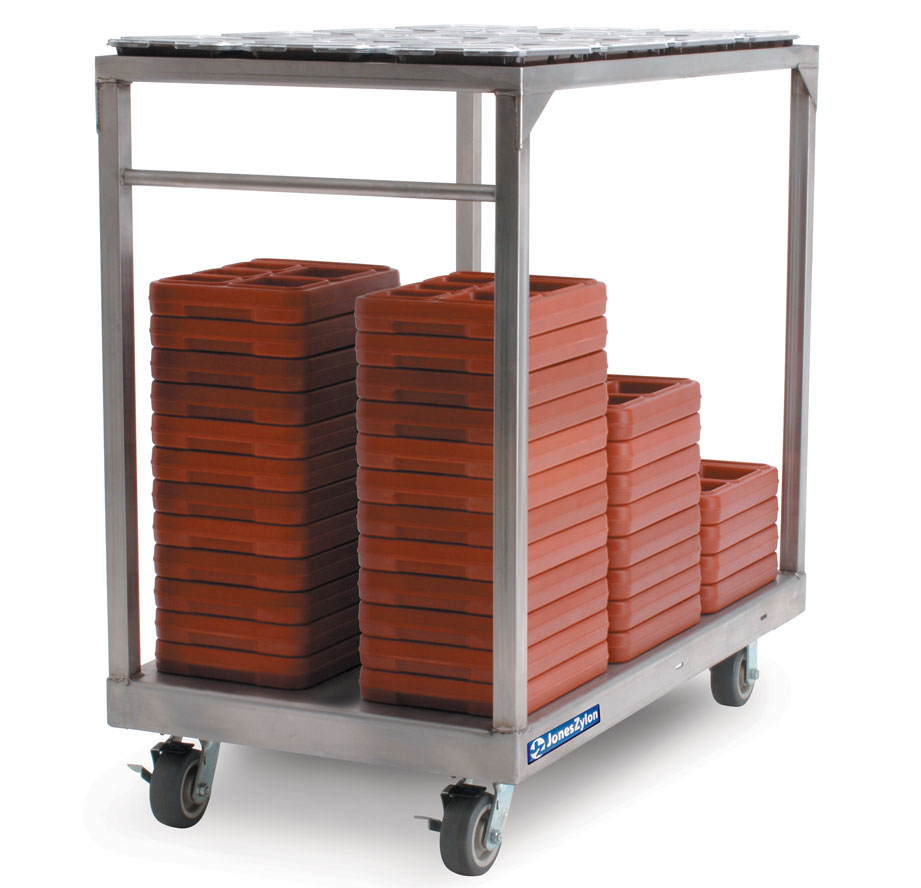

Medium, Heavy Duty, Open Tray Transport Cart | MTC-49HD | Height: 47" / Width: 28" / Depth: 40" | 84 PRTS-4000 trays 119 PRTS-5000 trays (77 with lids) 90 PRTS-6000 trays (54 with lids) |
Spec Sheet |
![]() |
Large, Heavy Duty, Open Tray Transport Cart | MTC-69HD | Height: 47" / Width: 28" / Depth: 69" | 112 PRTS-4000 trays 153 PRTS-5000 trays 120 PRTS-6000 trays |
Spec Sheet |

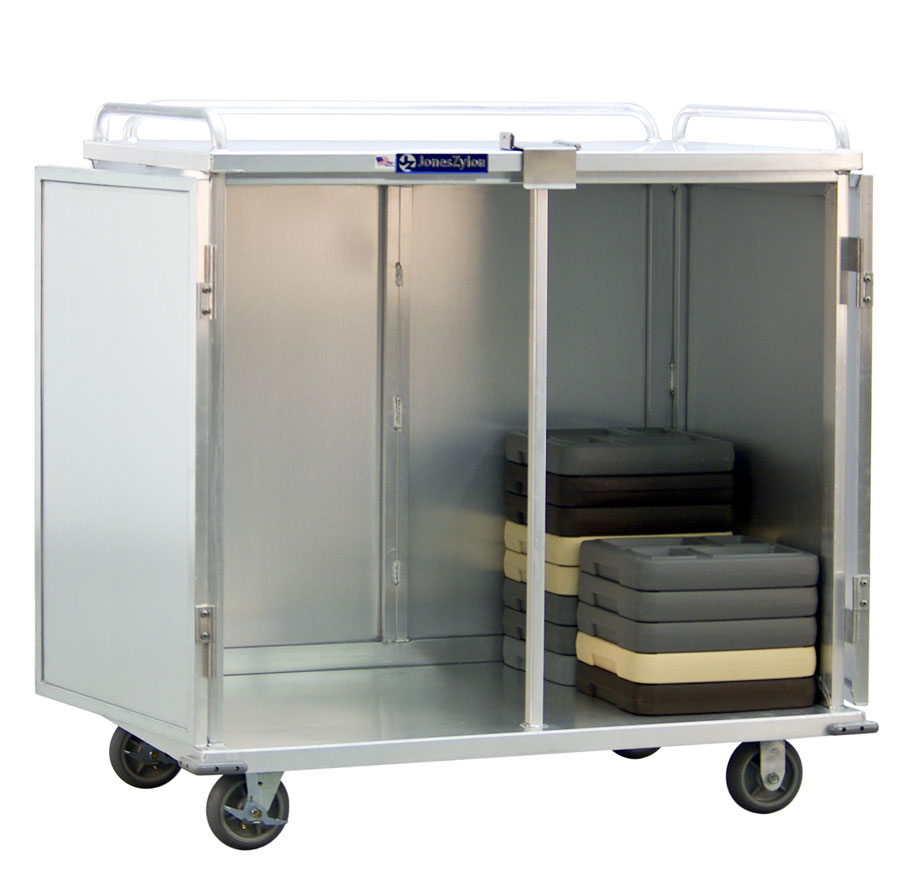

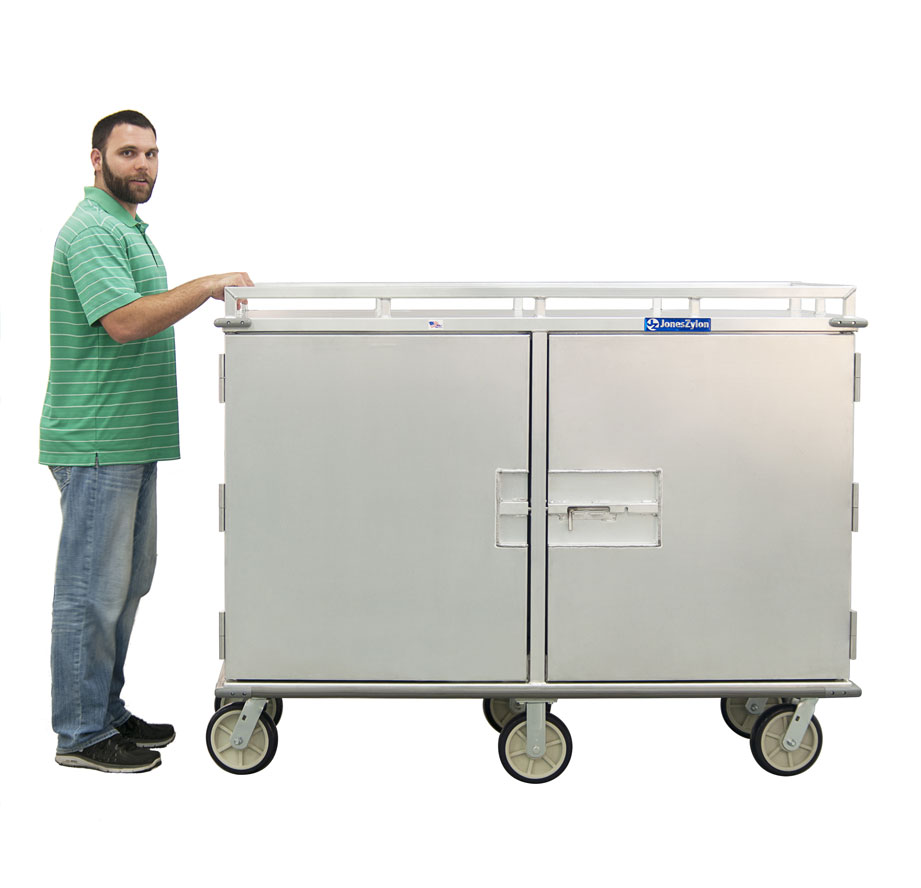

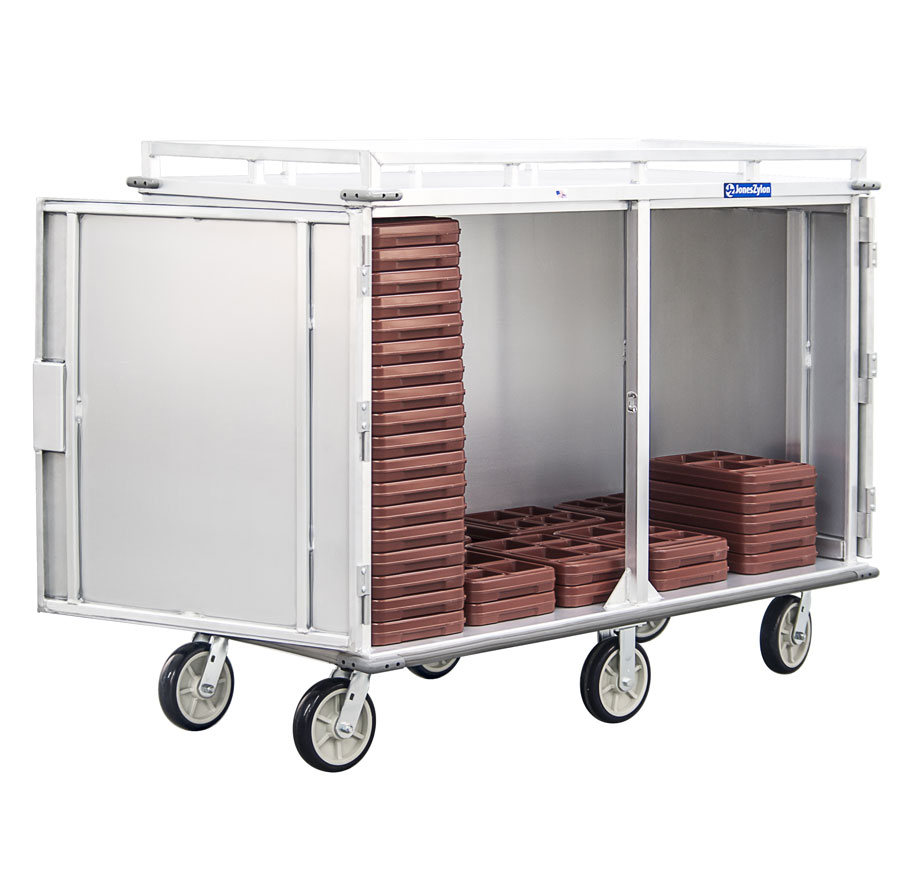

Secure insulated trays within a heavy-duty enclosed cabinet with drinks or miscellaneous items on top. Enclosed carts enhance food temperature retention and protect meals from theft. Every model closes with a padlockable latch, so you can build your key-custody and handoff procedure around it.

Height: 38.1" / Width: 27.75" / Depth: 33.1"
SmartTray: 60
SmartTray XD: 40
Rock: 52
X-Tray: 40
PRTS-4000: 18
PRTS-5000: 36
PRTS-6000: 30

Height: 43.1" / Width: 44.75" / Depth: 24.4"
SmartTray: 90
SmartTray XD: 60
Rock: 85
X-Tray: 60
PRTS-4000: 30
PRTS-5000: 39
PRTS-6000: 33

Height: 46.9" / Width: 50.9" / Depth: 28.5"
SmartTray: 136
SmartTray XD: 96
Rock: 120
PRTS-5000: 90

Height: 47.1" / Width: 60.2" / Depth: 28.5"
SmartTray: 170
SmartTray XD: 120
PRTS-5000: 105

Height: 52.5" / Width: 53" / Depth: 33.8"
SmartTray: 119
SmartTray XD: 91
PRTS-4000: 90
PRTS-5000: 126
PRTS-6000: 90

Height: 53.1" / Width: 68.5" / Depth: 33.3"
SmartTray: 160
SmartTray XD: 156
PRTS-4000: 112
PRTS-5000: 136
PRTS-6000: 120

Height: 54.1" / Width: 73.5" / Depth: 34"
SmartTray XD: 143
PRTS-4000: 140
PRTS-5000: 216
PRTS-6000: 135

Height: 47.1" / Width: 60.38" / Depth: 30.75"
See spec sheet for loading layout
Open and enclosed transport carts are built to carry insulated trays from kitchen to housing unit, and JonesZylon insulated trays are engineered to work exactly that way. Reinforced walls, sealed corners, and moisture-resistant foam keep temperatures longer and stand up to daily institutional use. No heated cart infrastructure required.
Cart capacities are listed for specific PRTS insulated tray models. Match your tray and lid code to the cart's stated capacity, since the counts differ by tray and by whether lids are fitted.
View Insulated TraysTell us a little about your operation and we'll help you spec the right open or enclosed cart for the way you move meals, from kitchen to housing unit.
Request a quote, or book a quick virtual demo to see the full line in action. A JonesZylon rep will follow up with exactly what you need.
What kitchen, custody and maintenance teams work through before choosing transport carts.
