Heated & Refrigerated Holding Cabinets for Corrections

JonesZylon offers a complete line of corrections-grade heated and refrigerated holding cabinets built for the demands of institutional food service. Whether you need to hold hot food at serving temperature, keep cold items properly chilled, or run both sides simultaneously in a dual-temp configuration, our cabinets are engineered for daily high-volume use in correctional facilities. Models range from bulk food holding cabinets to large dual-temperature units capable of holding hundreds of trays, with configurations available for heated, ambient, and refrigerated applications. All units are built for durability, easy sanitation, and long-term reliability in demanding environments.

Quick answer

Choose a correctional holding cabinet by heated or refrigerated service, pan depth, covers, batch load and electrical requirements. Use the model sheet for the documented capacity and configuration.

Suppliers and buyers also call these hot holding cabinets, heated serving cabinets and insulated heated holding cabinets. Same equipment, different catalogue wording.

Which holding configuration fits the kitchen release schedule?

List what enters the cabinet, its condition at loading and the time each batch must leave. Assign heated food, chilled food and ambient items to their intended equipment. Record the actual tray or pan, cover, depth and rack arrangement. If staff need to reheat food, request a separate retherm review for the equipment and process.

Holding equipment selection and model records
Holding requirementModel recordsWhat to confirm
Heated bulk pansJZH-12UBT and JZH-12UBT-RHPan depth, usable slides, installed heater and release sequence.
Refrigerated bulk pansJZR-6UBT and JZR-10UBTChilled load, refrigeration clearance and time away from power.
Separate heated and refrigerated compartmentsJZHR tray configurationsCapacity basis and food allocation for each compartment.
Heated and ambient compartmentsJZHA tray configurationsAmbient-side handling method and tray/lid arrangement.
Bulk service with separate compartmentsCombined bulk configurationsExact thermal variant and pan count per side.

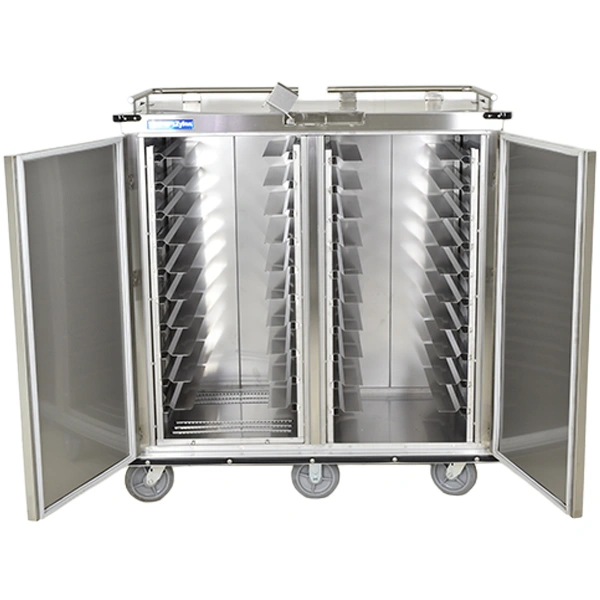

JZ-144 Series Dual Temp Cart for Corrections

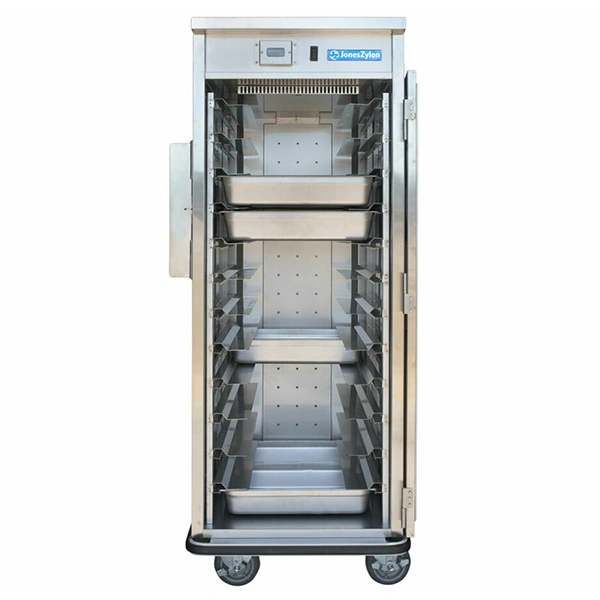

JZH-12UBT Heated Holding Cabinet for Corrections
JZR-6UBT Refrigerated Holding Cabinet for Corrections
JZR-10UBT Large Refrigerated Holding Cabinet for Corrections
JZR-6UBT refrigerated holding cabinet with the door open and its slide rack visible

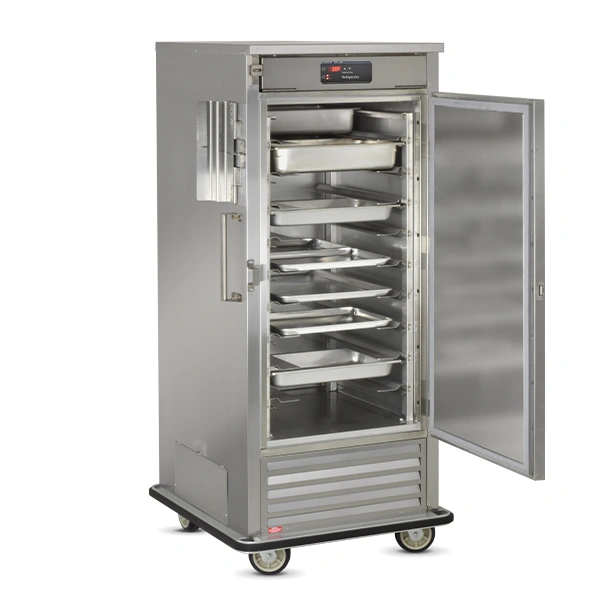

JZR-10UBT refrigerated holding cabinet with the door open and pans on the slides
Facility Planning & Pricing

Request a Quote for Heated & Refrigerated Holding Cabinets

Get pricing on a holding cabinet or dual-temperature cart configured around your facility's actual food service operation. JonesZylon offers heated, ambient, refrigerated, and combined hot/cold models for staging bulk food, maintaining serving temperatures, transporting trays, and supporting high-volume correctional meal programs.

Tell us what needs to stay hot or cold, how food is loaded, the number of meals or pans you need to move, and where the cabinet will be used. Our team can help narrow the model, capacity, temperature configuration, racking, electrical requirements, and mobility features before preparing your quote.

  • Choose the right temperature configuration. Compare all-heated, heated/ambient, heated/refrigerated, and refrigerated options for your workflow.
  • Match capacity to the food you move. Plan around compartment trays, sheet pans, steam-table pans, nesting trays, meal counts, and staging volume.
  • Account for the route and environment. Include doorways, elevators, floor conditions, maneuvering space, transport distance, and security requirements.
  • Build the right cabinet specification. We can help with model selection, racking, caster packages, electrical service, temperature controls, and heavy-duty upgrades.
Not sure which model fits? Tell us what you use now, the meals or pans handled per run, and whether you need heated, refrigerated, ambient, or dual-temperature holding. We will help identify the best starting configuration.
Step 1 of 2
What type of facility are you purchasing for?
Your facility type helps us route the request correctly and recommend a cabinet configuration suited to your meal volume, security needs, and operating environment.
Step 2 of 2
Tell us about your holding-cabinet needs.
Share the details you know now. Exact specifications are not required, we can help determine the appropriate model, temperature setup, capacity, and options.
Helpful details include hot, cold, or dual-temp needs; meals per run; tray or pan type; desired capacity; transport route; electrical service; current equipment; and target timing.
Something went wrong. Please try again or email us at solutions@joneszylon.com.
Your quote request is in.
Thank you. A JonesZylon correctional food service specialist will review your request and follow up about holding-cabinet models, configuration, pricing, and any additional information needed.

How do pan depth and covers affect cabinet capacity?

Compare the pan footprint, depth and loaded height with the matching sheet. Keep sheet-pan and hotel-pan counts as alternatives. Covers and food above the rim can require vacant slides. Record the usable load during the demonstration and attach that arrangement to the quote.

The JZH-12UBT sheet supplies a pan-size basis and slide spacing. The refrigerated JZR sheets describe their own pan arrangements. Follow the model links for the count that matches your heated or refrigerated cabinet. [1] [2] [3]

How should we stage food before dispatch?

Set the release sequence from the facility meal schedule. Load each pan in its documented position, keep diet and destination identification visible, and record dispatch under the facility food handling plan.

What should security and maintenance inspect?

Review door access, lock and key control, shelf supports, casters and parking arrangements with the facility team. Compare the proposed hardware against the exact sheet and quote.

Record nameplate details, outlet location and the installed heating or refrigeration system. Reserve access for controls, doors and maintenance. Have maintenance obtain the isolation and handling procedure for the installed removable heater.

How should the sanitation cycle fit between batches?

Place unloading and dirty-pan return where they will not cross clean loading. Reconcile pans, trays, lids and utensils before washing. Follow the approved care procedure for each cabinet component and for the containers. Keep removed racks and shelves identified to the correct cabinet.

Plan space for drying, inspection and clean storage. Check door closures, caster movement, cords and supports before returning the cabinet to service. Record defects and assign a person to arrange repairs. Allow time for drying, inspection and repairs in the batch schedule.

What should a quote include, and what warranty applies?

For a quotation, include peak batches, pan and cover measurements, hot and cold allocation, route clearances, receiving requirements and available electrical service.

JonesZylon equipment carries a one year parts and labor warranty for defects in material and workmanship, running from the date of original shipment from the plant. All labor is to be performed by a JonesZylon-approved service agency that obtains a Warranty Service Authorization number before the repair. See the full warranty terms. Heated and/or refrigerated equipment can add optional one-year or two-year coverage past the standard one-year period.

Frequently asked questions

Can a heated holding cabinet reheat chilled meals?

For reheating, confirm the appropriate retherm equipment and approved food procedure. The cited specifications cover holding cabinets.

Does the JZR-6UBT capacity use four-inch hotel pans?

Its sheet lists 14 hotel pans sized 12 × 20 × 2.5 inches. Use that depth for the printed capacity and request confirmation for a different pan. [2]

Does a cabinet thermometer replace a food check?

Record food checks according to the facility procedure. A cabinet reading and a food reading describe different measurements.

What should I send for a holding cabinet quote?

Send the thermal function, model, pan or tray and lid details, load by dispatch, available power and the doorway measurements.

Is the JZH-12UBT the same as the RH version?

They have separate specification sheets and different printed dimensions. Select the exact version and its heater arrangement. [1] [4]

Request a Quote Schedule a Virtual Demo

Sources

  1. JZH-12UBT (PDF)
  2. JZR-6UBT (PDF)
  3. JZR-10UBT (PDF)
  4. JZH-12UBT-RH (PDF)

Trays come with the cart

A new stainless steel meal cart comes with enough trays to fill it at no additional charge. A JZH-6UBT-RH holds 90 SmartTrays, and you will get 90 free trays with the order. Confirm the tray model and the count on your quote, because the tray that fits the cart depends on the depth and lid you choose.
