Heated Meal Delivery Carts Mission-Ready for
Demanding Environments

JonesZylon's Mission Ready heated meal delivery carts are built for the demands of correctional food service, where downtime isn't an option and durability is non-negotiable. Featuring removable and interchangeable self-contained heating units, these carts deliver 100% uptime, straightforward sanitation, and long-term reliability in the toughest institutional environments. Compare Mission Ready with our full range of correctional meal delivery carts and systems .

  • Snap-in heater design – easily removable for cleaning
  • Swap in a backup heater at any time, zero downtime
  • Corrections-grade construction built for daily institutional use
  • Fits a variety of tray types and configurations
  • Ideal for both segregation and insulated meal tray programs

Interchangeable Heating Units

All Mission Ready carts are equipped with a snap-in heating system that can be removed for cleaning or swapped with a backup heater to eliminate downtime, a critical advantage in high-volume correctional food service environments.

Carts can also convert to insulated ambient configuration by replacing the heater with an insulated back panel, giving facilities flexibility across different meal delivery programs.

Ordering a spare? Match the installed heater assembly, wattage, mounting and lock arrangement. Most carts use the standard 1700W heater; the JZH-144HD-2RH runs 2400W and the JZH-198HD uses a key-locked heater latch.

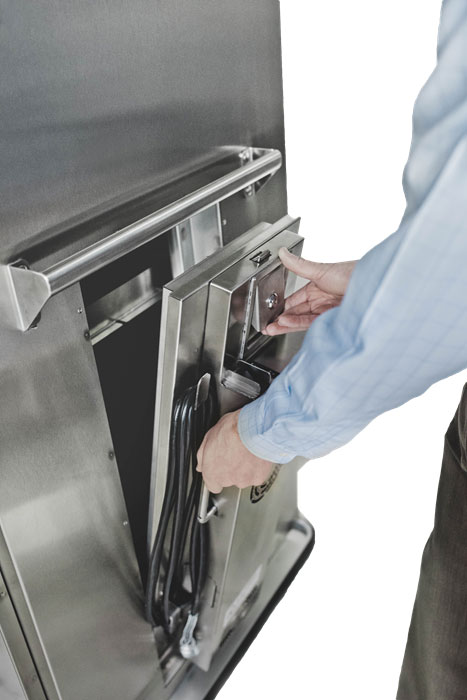

Mission Ready snap-in heater removal step 1

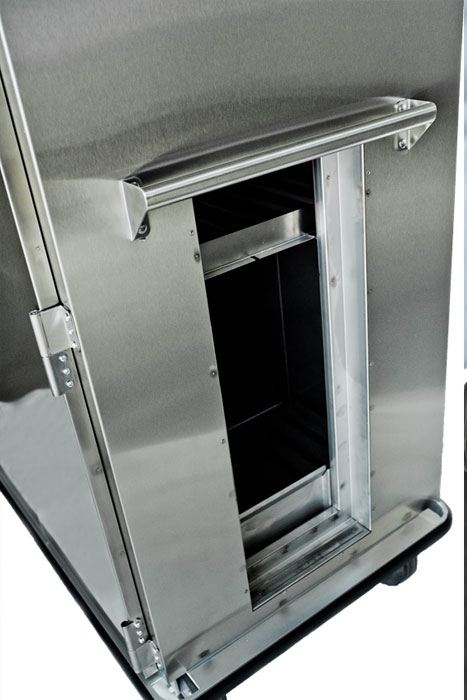

Mission Ready snap-in heater removal step 2
Mission Ready snap-in heater removal step 3

Mission Ready Heated Meal Delivery Cart Models & Specs

Choose by cart model, tray or pan load, heater assembly and available power. Open a model for photos, features and spec sheets, or jump to the side-by-side spec table.

Reading tray capacities: 9000 series, SmartTray, SmartTray XD and pan counts are alternative loads, not combined. Size your fleet with the count for the tray you actually use, and keep the shelf or rack arrangement on the quote, since it changes the usable load.

Trays come with the cart. A new stainless cart ships with enough trays to fill it at no extra charge. For example, a JZH-6UBT-RH holds 90 SmartTrays, so you get 90 trays with the order.

Perfect for tight spaces like old doorways and elevators. Great capacity in a small footprint.

JZH-6UBT-RH Compact Heated Cart for Corrections
Features
  • 6" multi-terrain casters
  • Width: 30.75" – fits most doorways
  • Optional racks for bulk food pans (up to 14)
  • Solar digital thermometer
  • Easy to push and maneuver
Dimensions

Height: 47.3" / Width: 30.75" / Depth: 38.25"

Electrical

JZA-6UBT: No electrical system

JZH-6UBT-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 90
5000 Series: 150
4000 Series: 160
SmartTray: 90
SmartTray XD: 65

Standard-sized heated cabinet ideal for holding bulk food in sheet pans or steam pans.

JZH-12UBT-RH Heated Holding Cabinet for Corrections
Features
  • 6" multi-terrain casters
  • Slide spacing: 4.5"
Dimensions

Height: 67.5" / Width: 30.5" / Depth: 38"

Electrical

120V / 1700W / 14.2AMP / NEMA 5-15P

Capacity

12 – 18x26 sheet pans
24 – 4" 12x20 steam pans

Small size dual temp cart delivering up to 84 heated trays and ambient trays.

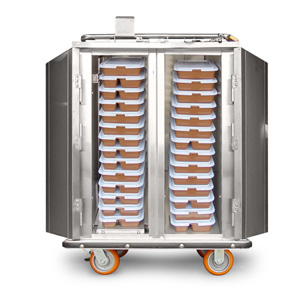

JZHA-84-RH Small Dual Temp Heated Cart
Features
  • 6" multi-terrain casters (2 swivel with brake, 2 rigid)
  • Bottom baffle heat distribution
  • Side mount snap-in removable heater
  • Solar digital thermometer
Dimensions

Height: 47.5" / Width: 36.63" / Depth: 32.5"

Electrical

120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 84
5000 Series: 112
4000 Series: 112

Small dual temp cart delivering 112 heated and ambient trays.

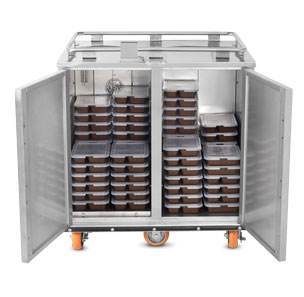

JZHA-112-RH Small Dual Temp Heated Cart
Features
  • Rear mount snap-in removable heater
  • Bottom baffle heat distribution
  • 6" multi-terrain casters
  • Solar digital thermometer
Dimensions

Height: 47.49" / Width: 47.5" / Depth: 31.75"

Electrical

120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 112
5000 Series: 192
4000 Series: 192

Built for larger housing units. Narrower footprint saves floor space.

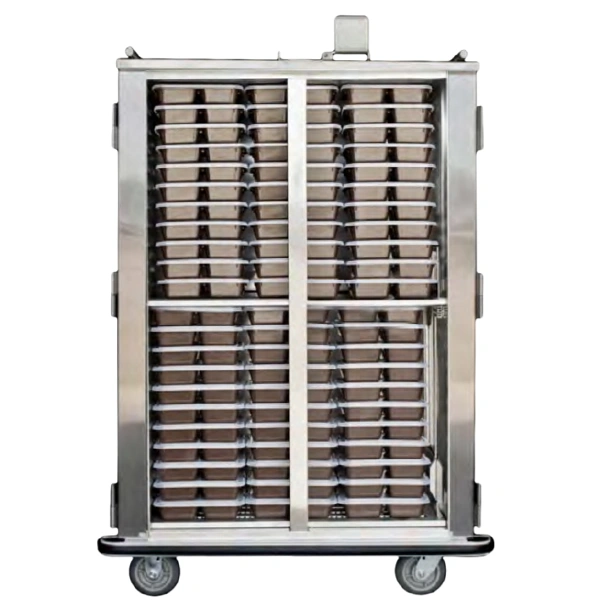

JZH-198 Large Capacity Heated Cart for Corrections
Features
  • S/S mid-shelf (optional shelves available)
  • Bottom baffle for even heat distribution
  • Solar digital thermometer
Dimensions

Height: 64.5" / Width: 46" / Depth: 31.75"

Electrical

JZA-198: No electrical system

JZH-198-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 198
5000 Series: 260
4000 Series: 360
SmartTray: 168
SmartTray XD: 102

Large dual temp cart with 10 stainless steel shelves. Maneuverable enough to turn on its own axis.

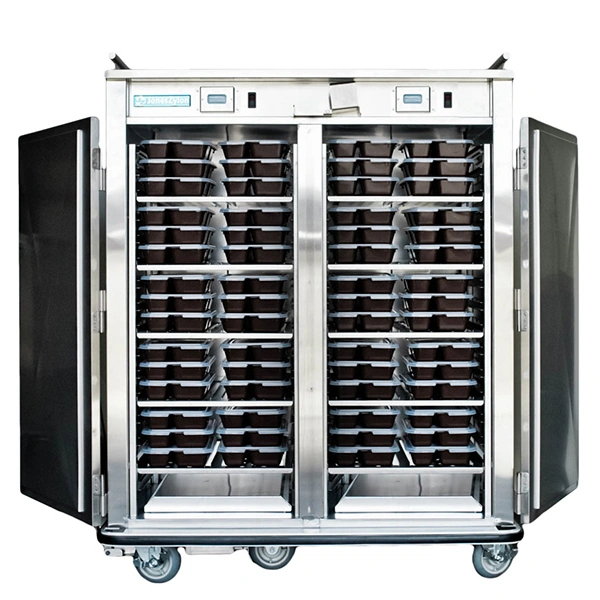

JZ-120-RH Large Dual Temp Heated Cart
Features
  • 10 S/S shelves on removable racks
  • Side-mount recessed push handles
  • Available as Heated or Ambient
Dimensions

Standard (JZAA, JZH, JZHA):

Height: 60.25" / Width: 57.63" / Depth: 29"

JZHR-120-RH:

Height: 75" / Width: 57.63" / Depth: 29"

Electrical

JZAA-120: No electrical system

JZH-120-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHA-120-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHR-120-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P

Tray Capacity

9000 Series: 120 (shelves), 168 (no shelves)
5000 Series: 180 (shelves), 252 (no shelves)
4000 Series: 180 (shelves), 252 (no shelves)

Delivering up to 132 meals with hot and ambient trays. Can transport bulk food in hotel or sheet pans.

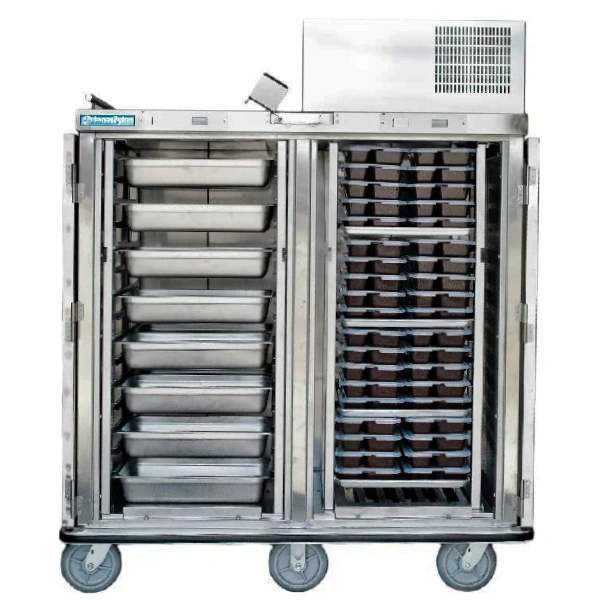

JZ-144-RH Extra Large Dual Temp Heated Cart
Features
  • 8" multi-terrain casters
  • Removable racks at 4.5" spacing
  • Heavy Duty package option available
Dimensions

Standard (JZA, JZHH, JZHA):

Height: 66.00" / Width: 62.5" / Depth: 31.75"

JZHR-144-RH:

Height: 76" / Width: 62.5" / Depth: 31.5"

Electrical

JZAA-144: No electrical system

JZHH-144-2RH: 120V / 2400W / 20AMP / NEMA 5-20P

JZHA-144-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHR-144-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P

Tray Capacity

9000 Series: 144 (shelves), 264 (no shelves)
5000 Series: 192 (shelves), 360 (no shelves)
4000 Series: 192 (shelves), 378 (no shelves)

High capacity while staying easy to maneuver and push. Turns on its own axis.

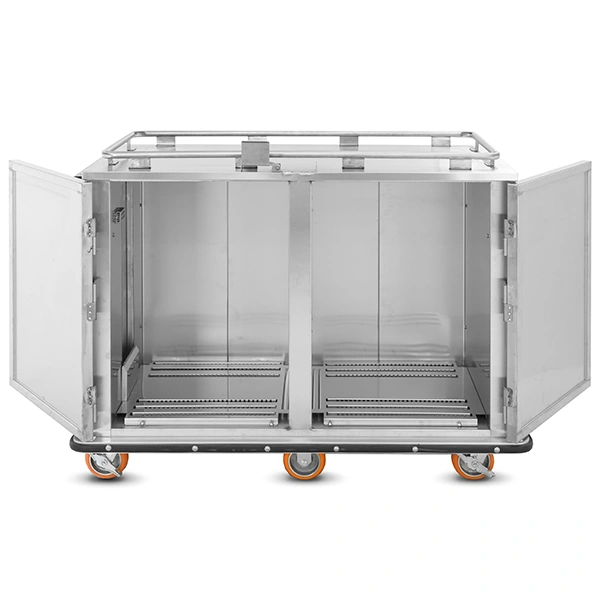

JZ-168 heated correctional meal delivery cart shown from front
Features
  • Fits up to 28 4" pans (optional)
  • Solar digital thermometer
  • Excellent visibility and maneuverability
Dimensions

Height: 47.5" / Width: 62.875" / Depth: 32.5"

Electrical

JZA-168: No electrical system

JZH-168-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 168
5000 Series: 266
4000 Series: 336
SmartTray: 162
SmartTray XD: 130

Large dual temp cart delivering up to 168 meals with hot and ambient trays.

JZ-168 heated correctional meal delivery cart shown from front
Features
  • 6" multi-terrain casters
  • Side-mount recessed push handles
  • Available as All-Heated or Dual-Temp
Dimensions

Height: 47" / Width: 61" / Depth: 31"

Electrical

JZA-168: No electrical system

JZH-168-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 168
5000 Series: 266
4000 Series: 336
SmartTray: 162
SmartTray XD: 130

Extended dual temp cart for high-capacity hot meal delivery in correctional facilities.

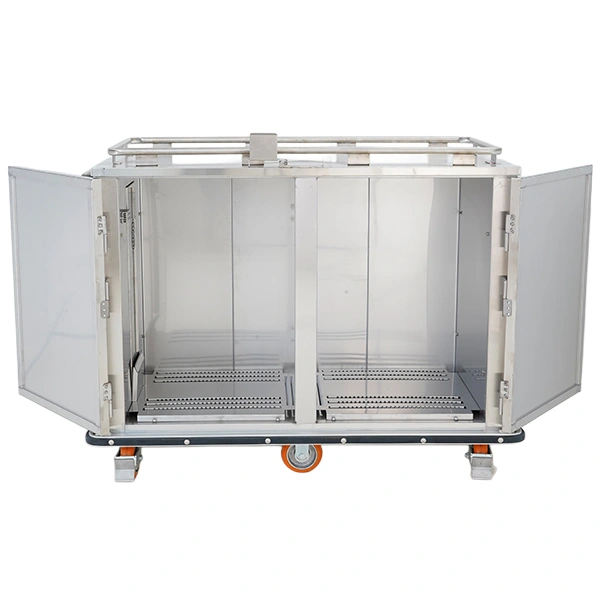

JZ-168 XL Extended Dual Temp Heated Cart
Features
  • Bolt reinforced bottom bumper
  • Can carry up to 14 sheet pans (18x26)
  • Solar digital thermometer
Dimensions

Standard (JZA, JZH, JZHA):

Height: 47.50" / Width: 62.9" / Depth: 32.5"

JZHR-168XL-RH:

Height: 62.25" / Width: 62.9" / Depth: 32.5"

Electrical

JZA-168XL: No electrical system

JZH-168XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHA-168XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHR-168XL-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P

Tray Capacity

9000 Series: 168
5000 Series: 294
4000 Series: 368
SmartTray: 170
SmartTray XD: 130

Delivering up to 192 meals with hot and ambient trays. High-capacity correctional food service cart.

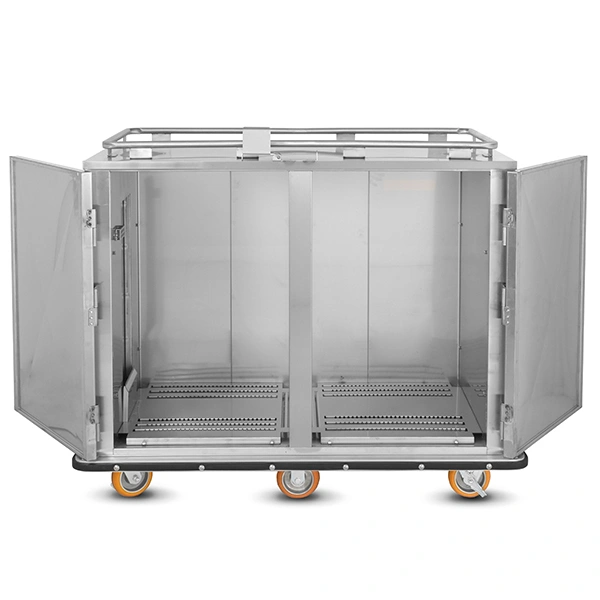

JZ-192 XL Large Dual Temp Heated Cart
Features
  • Can carry 32 bulk food pans (4")
  • Top rail for transport
  • Excellent maneuverability
Dimensions

Standard (JZA, JZH, JZHA):

Height: 51" / Width: 62.9" / Depth: 32.5"

JZHR-192XL-RH:

Height: 66.25" / Width: 62.9" / Depth: 32.5"

Electrical

JZA-192XL: No electrical system

JZH-192XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHA-192XL-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHR-192XL-RH: 120V / 1800W / 15.0AMP / NEMA 5-20P

Tray Capacity

9000 Series: 192
5000 Series: 336
4000 Series: 414
SmartTray: 190
SmartTray XD: 150
Bulk Food Pans (12x20x4): 32
Sheet Pans (18x26): 16

Engineered for the toughest correctional environments with reinforced components throughout.

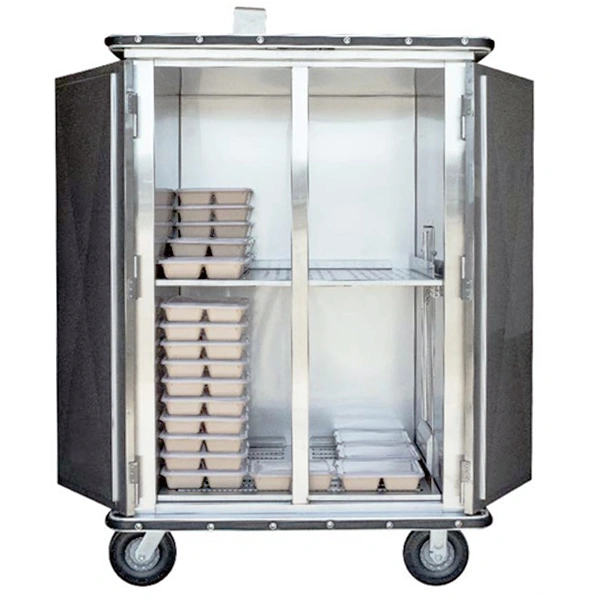

JZH-198HD Extreme Duty Heated Cart for Corrections
Features
  • 8" premium casters
  • Reinforced bumpers, hinges, and latch
  • Recessed security handle
Dimensions

Height: 66.50" / Width: 46" / Depth: 32.75"

Electrical

JZA-198HD: No electrical system

JZH-198HD-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHA-198HD-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 198
5000 Series: 260
4000 Series: 360
SmartTray: 168
SmartTray XD: 108

Delivering up to 204 meals with hot and ambient trays. High-capacity correctional food service cart.

JZH-204-RH Extra Large Heated Cart for Corrections
Features
  • 8" premium casters
  • Side-mounted removable heating assembly
  • Fits 10 trays per layer and 20 high
Dimensions

Height: 53.75" / Width: 62.9" / Depth: 32.5"

Electrical

JZA-204: No electrical system

JZA-204-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

JZHA-204-RH: 120V / 1700W / 14.2AMP / NEMA 5-15P

Tray Capacity

9000 Series: 204
5000 Series: 352
4000 Series: 432
SmartTray: 200
SmartTray XD: 150

Compare Heated Cart Specs

Every Mission Ready heated cart with a removable heater, side by side. Dimensions are exterior height × width × depth in inches. Match your quote to the spec sheet for each model.

Model9000 series traysSmartTray / XDH × W × DElectricalCastersSecuritySpec sheet
JZH-54-RH4554 / 3947.80 × 21.50 × 38.25120V, 1700W, 14.2A, 5-15PFour 6"Padlock-compatible heater latch PDF
JZH-6UBT-RH9090 / 6547.30 × 30.75 × 38.25120V, 1700W, 14.2A, 5-15PFour 6"Padlock-compatible heater latch PDF
JZH-10UBT-RH120120 / 8559.00 × 30.50 × 38.00120V, 1700W, 14.2A, 5-15PFour 6"Padlock-compatible heater latch PDF
JZH-136-RH140136 / 9647.50 × 54.88 × 31.00120V, 1700W, 14.2A, 5-15PSix 6"Security fasteners, heater latch PDF
JZH-168168162 / 13047.50 × 62.90 × 31.00120V, 1700W, 14.2A, 5-15PSix 6"Padlock-compatible heater latch PDF
JZH-168XL168170 / 13047.50 × 62.90 × 32.50120V, 1700W, 14.2A, 5-15PSix 6"Padlocking door and heater latches PDF
JZH-192XL192190 / 15051.00 × 62.90 × 32.50120V, 1700W, 14.2A, 5-15PSix 6"Padlock-compatible heater latch PDF
JZH-198198168 / 10264.50 × 46.00 × 31.75120V, 1700W, 14.2ASix 6"Lockable transport latch PDF
JZH-198HD198168 / 10266.50 × 46.00 × 32.75120V, 1700W, 14.2A, 5-15PSix 8"Key-locked heater, transport latch PDF
JZH-120120 shelved / 168 stackedn/a60.25 × 57.63 × 29.00120V, 1700W, 14.2A, 5-15PSix 6"Lockable transport latch PDF
JZH-144HD-2RH228 on 6 shelves / 264 withoutn/a66.00 × 62.25 × 31.75120V, 2400W, 20A, 5-20PSix 8"Lockable transport latch PDF
JZHH-120 Heated/heated120 shelved / 168 stackedn/a64.75 × 52.75 × 29.00120V, 1920W, 16A, 5-20PSix 6"Lockable transport latch PDF
JZHH-144 Heated/heated264 without shelvesn/a66.00 × 62.25 × 31.75120V, 1920W, 16A, 5-20PSix 8"Lockable transport latch PDF
JZH-204-RHExtra large heated cart with removable heater. See the spec sheet for capacity and dimensions. PDF

Need dual temperature? See JZHA heated/ambient and JZHR heated/refrigerated carts. For SmartTray loading, see ServeSmart.

JonesZylon JZH-120 heated meal delivery cart shown from front
JZH-120
JonesZylon JZH-144HD-2RH heated meal delivery cart shown from front
JZH-144HD-2RH
JonesZylon JZH-168 heated meal delivery cart shown from front
JZH-168
JonesZylon JZH-204XL heated meal delivery cart shown from front
JZH-204XL

Which Mission Ready Heated Cart Is Right for Your Facility?

Choosing the right heated meal delivery cart depends on your housing unit size, tray program, and how your facility handles sanitation and maintenance. Compact models like the JZH-6UBT-RH are ideal for tight corridors and older facilities with narrow doorways. Mid-size carts like the JZH-168 offer high capacity without sacrificing maneuverability. For the most demanding environments, the JZH-198HD is built with reinforced bumpers, hinges, and a recessed security handle specifically for corrections. Mission Ready carts share the same snap-in heater design, so keeping a matched spare on hand means a failed heater never takes a cart out of service. If you're comparing heated carts with other correctional meal delivery carts and systems, or evaluating your tray program alongside a full ServeSmart system, we can help you compare the options. Fill out the form below and we'll help you match the right cart to your operation.

Request a Quote on Mission Ready Heated Meal Carts

Tell us your facility size, tray program, and housing unit configuration and we'll recommend the right Mission Ready cart and get you pricing.

Step 1 of 3
What type of facility are you with?
Select the option that best describes your facility.
Federal BOP
State DOC
Jail / Metro
Private Corrections
Corrections Distributor
Other
Step 2 of 3
How can we help?
Choose the option that fits what you're looking for.
Request a Quote
Request Dinnerware Samples
Contact Sales Team
Book a Free Consultation
Step 3 of 3
Tell us about yourself
 ·
Something went wrong. Please try again or email us at solutions@joneszylon.com.
Step 3 of 4
Which samples are you interested in?
Select one to continue. Each kit includes a tumbler, mug, utensil set, segmented tray, and SmartTray.
MaxFlex dinnerware sample set with tray, cup, and utensils
MaxFlex Flexible Safety Dinnerware
Flexes rather than breaks. Can't be sharpened or fractured into a weapon.
JonesZylon copolymer dinnerware sample set with tray, cup, and utensils
Copolymer Dinnerware
Durable, dishwasher-safe reusable dinnerware.
MaxFlex and copolymer dinnerware sample sets shown together
Send Me Both
Sample both lines side by side.
Special request? Use the message field on the next page to request specific items.
Step 4 of 4
Where should we ship your samples?
 ·  samples
We'll ship your samples to the address below at no charge.
Something went wrong. Please try again or email us at solutions@joneszylon.com.
Step 3 of 3
Tell us a little about yourself
We'll come prepared to actually help.
 ·  Free Consultation
Your info is saved. Go ahead and pick your time.
Book Your Time
Thank you for reaching out.

Planning, Maintenance & Ordering

What kitchen, custody and maintenance teams work through before and after a Mission Ready order.

Match the installed assembly, wattage, mounting, controls and lock arrangement to the approved spare. The JZH-198 heater removes without tools and has a padlock-compatible latch, while the JZH-198HD uses a key-locked slam latch. Get the model-specific removal, replacement and return-to-service instructions before swapping.

Use the printed capacity for the tray or pan arrangement you plan to load, and round each housing unit up to a whole cart load. Test a loaded cart through doorways, turns, elevators and at the 120V outlets along the route.

Count returned trays and utensils before unloading in the dirty-return area. Follow the care instructions for the cabinet, removable racks and heater separately, and know where each component drains and dries. Inspect latches, casters, bumpers and cords before the next loading window, and assign who handles repairs and backup carts.

A one-year parts and labor warranty for defects in material and workmanship, from the date of original shipment. Repairs are performed by a JonesZylon-approved service agency with a Warranty Service Authorization number. Heated and refrigerated equipment can add optional one- or two-year coverage beyond the standard year.

Mission Ready Carts Frequently Asked Questions

A removable heater cart uses a self-contained heating unit that snaps in and out of the cart body without the need of any tools. JonesZylon's Mission Ready line features this design, making it easy to remove the heater for thorough cleaning or swap it with a backup to eliminate downtime. The heater can also be replaced with an insulated insert when heat isn't needed.

With Mission Ready carts, the heating unit is removable and interchangeable. If a heater fails, staff can snap in a backup and keep serving while the original is repaired. The heaters use non-proprietary parts, so your maintenance team can fix them in-house. We also offer Uptime Maintenance Kits that include the most commonly replaced parts so you always have backups on hand.

In most fleets, yes. Mission Ready heaters are designed to be interchangeable across the system's cabinets, so many facilities stock a single backup. Models with a different heater, such as the 2400W JZH-144HD-2RH or the key-locked JZH-198HD, should be checked by maintenance against the installed assembly.

Yes. Mission Ready carts can convert from heated to insulated ambient by replacing the snap-in heater with an insulated back panel. This gives facilities the flexibility to run heated or ambient service from the same cart depending on the meal or route, without purchasing separate equipment. The reverse is also true: ambient carts can be upgraded to heated by swapping in snap-in heaters, eliminating the need to buy new carts.

Yes. Mission Ready carts are manufactured in the USA and are built to corrections-grade standards with heavy-duty stainless steel construction, multi-terrain casters, and reinforced components designed for demanding institutional environments.

Yes, both include heating. JZHA pairs heating with an ambient compartment, and JZHR pairs heating with refrigeration. Compare their exact configurations on the dual-temperature carts page.

Name the tray model and lid, the rack or shelf arrangement, and the usable loaded count. Keep alternative tray and pan capacities separate.

Get the model-specific care procedure before choosing a wash method, and follow its separate instructions for powered components.
Request a Quote
